DT6 DT8 DALI Master Glass Wall Mounted Touch Panel 4 Control Modes DALI-2 Certified DALI Master Touch keys With LED Indicator
$66.74
-
Description
Description

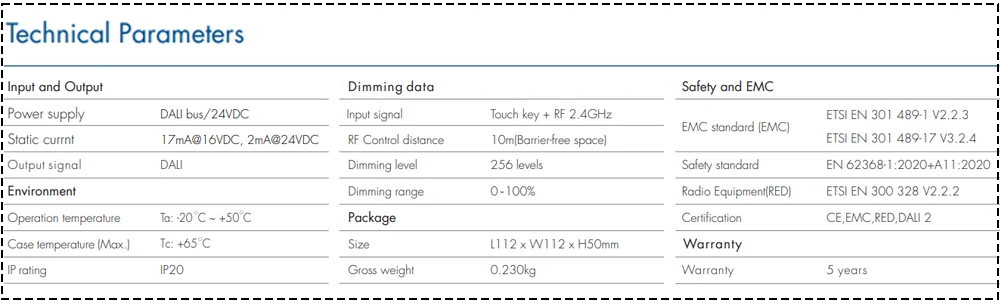

SPECIFICATIONS
Applicable Lights: Single Color /CCT /RGB /RGBW /RGBCCT LED Strip
Brand Name: CENFAYA
Certification: ce,EMC,LVD,ROHS,UL,VDE
Choice: yes
Connection Mode: DALI
Controled Method: Touch key
Dimming level: 256 levels
Features: Wall Mounted Touch DALI Panel
Gross weight: 0.230kg
High-concerned chemical: None
Item Type: RGB controler
Material: ABS
Model Number: TD5-S
Origin: Mainland China
Output signal: DALI
Power Source: DC
Power supply: DALI bus/24VDC
Size: L112 x W112 x H50mm
Static currnt: 17mA@16VDC, 2mA@24VDC
Voltage: 24v
Warranty: 5 YEARS
semi_Choice: yes
DT6 DT8 DALI Master Glass Wall Mounted Touch Panel 4 Control Modes DALI-2 Certified DALI Master Touch keys With LED Indicator

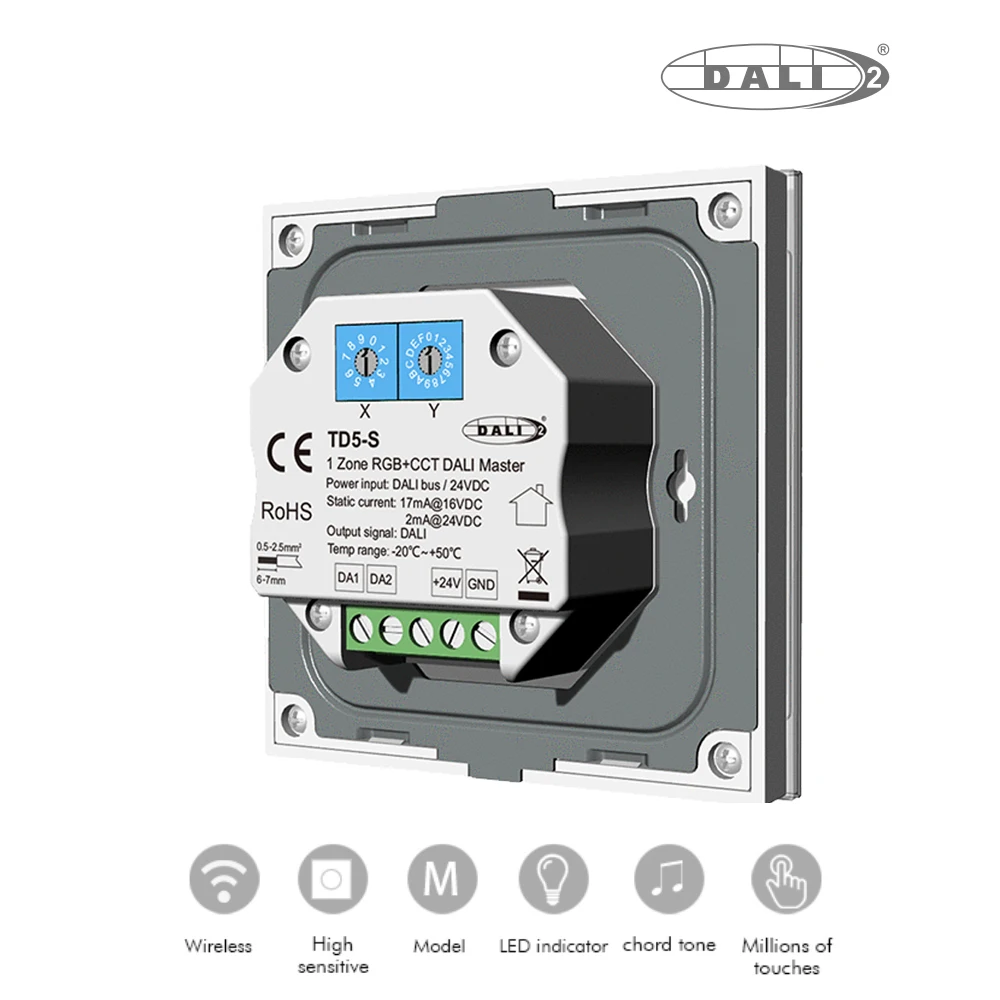

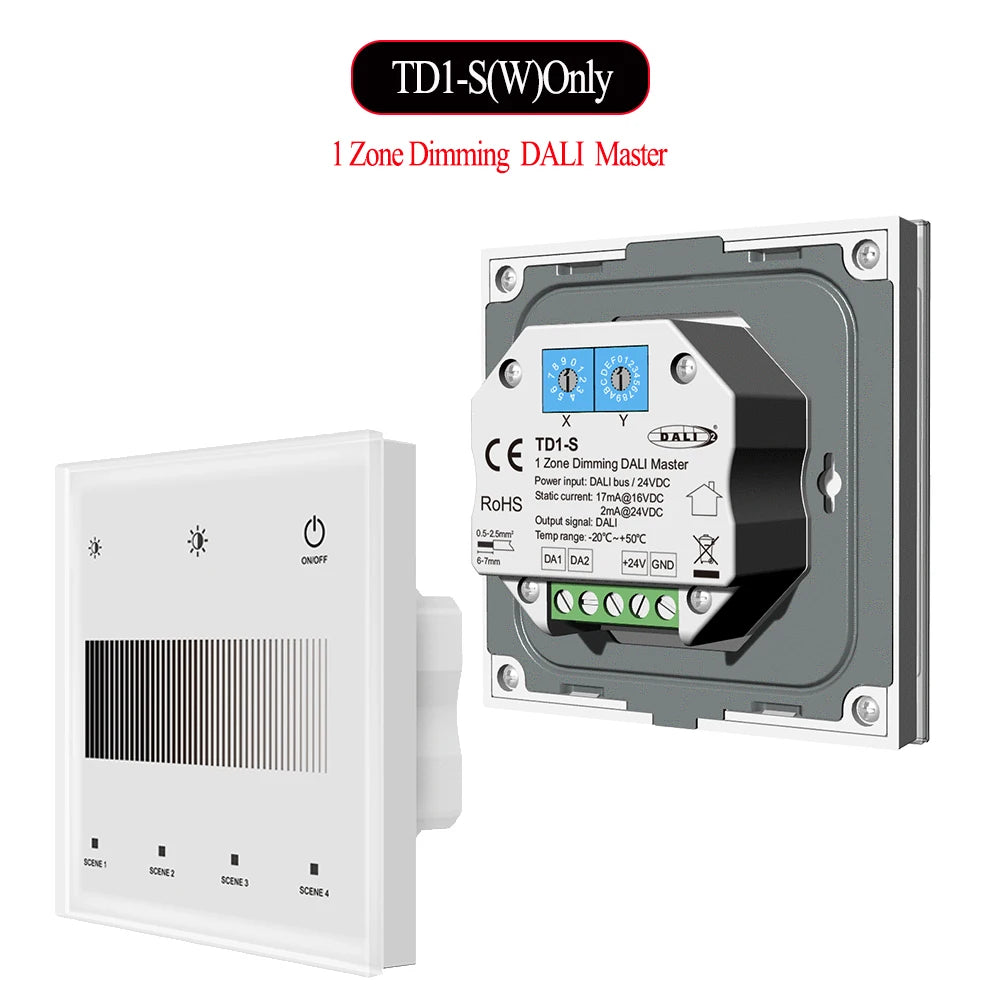

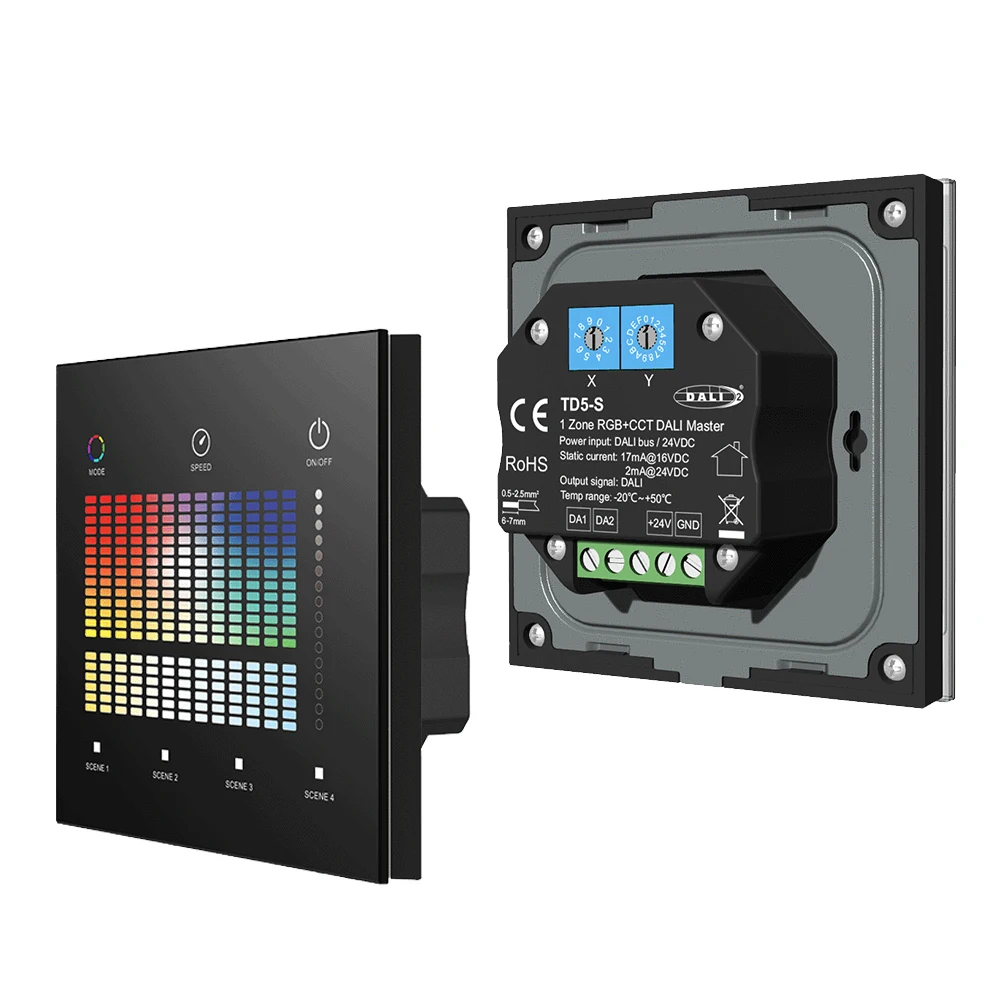

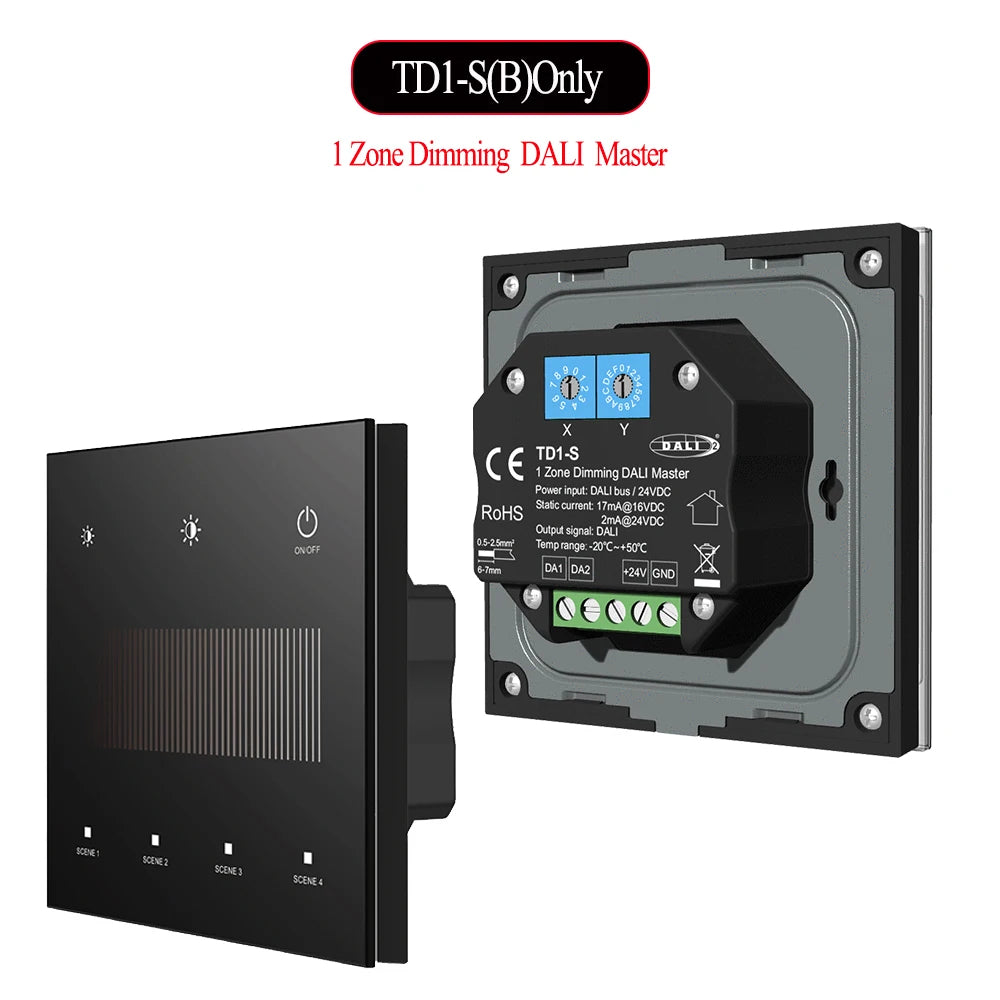

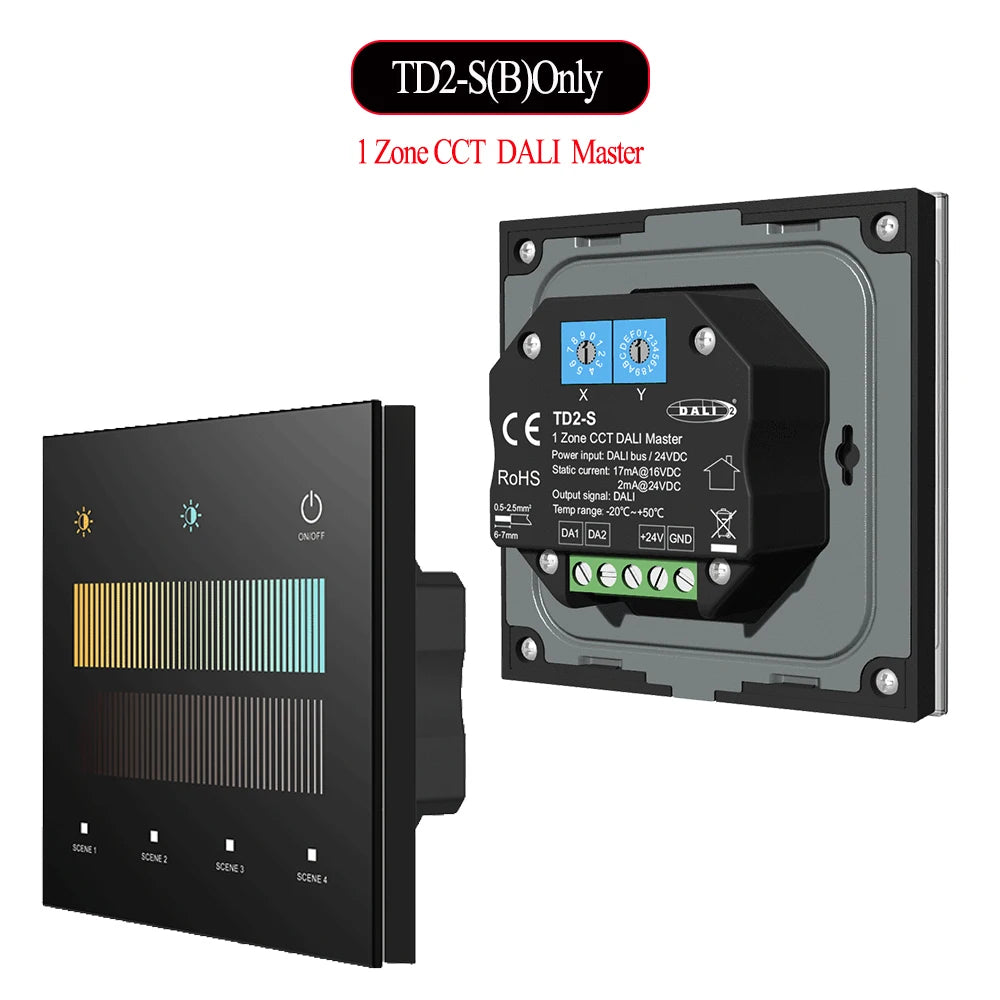

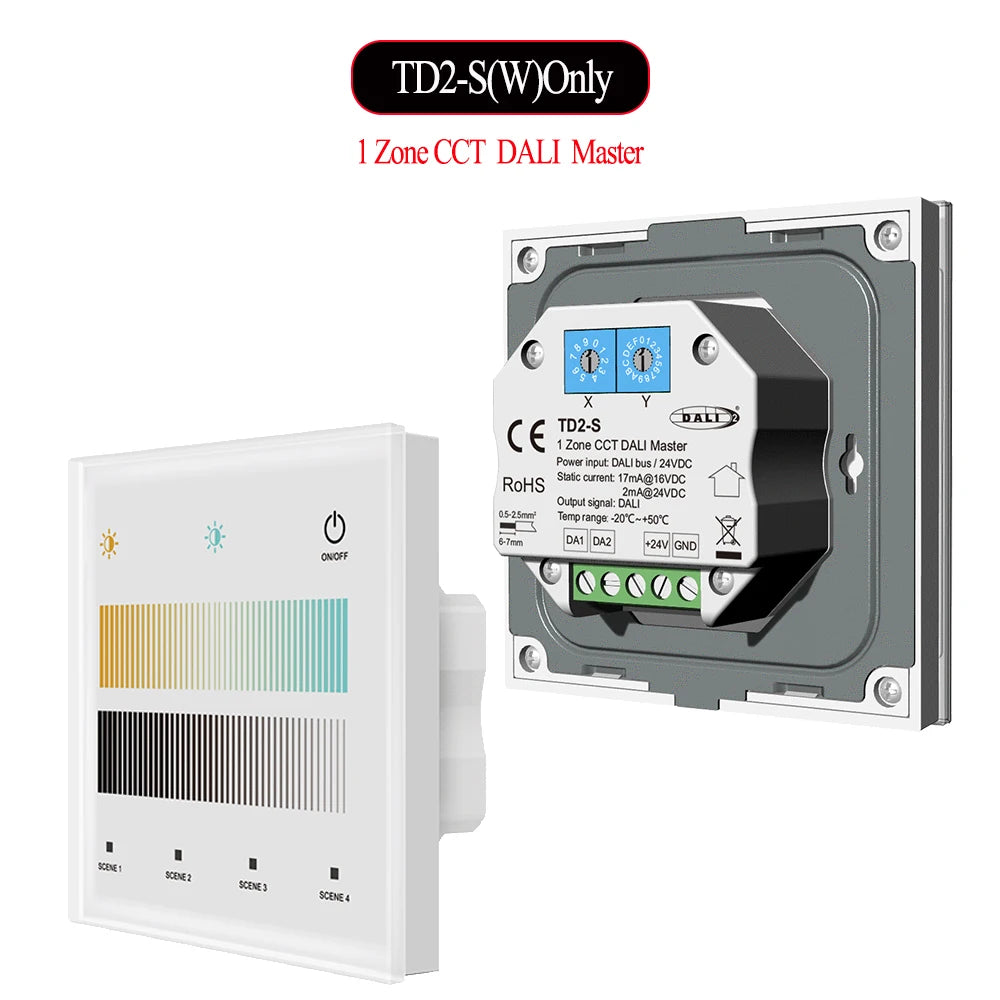

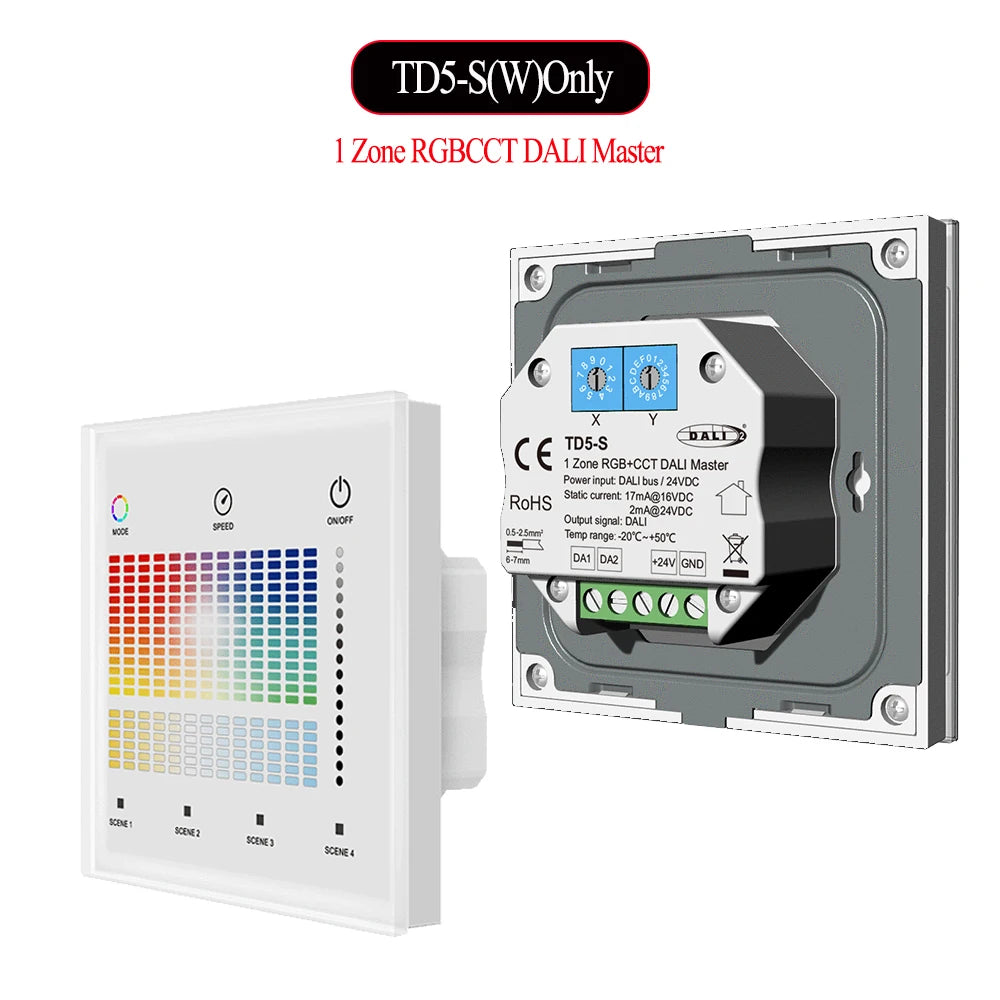

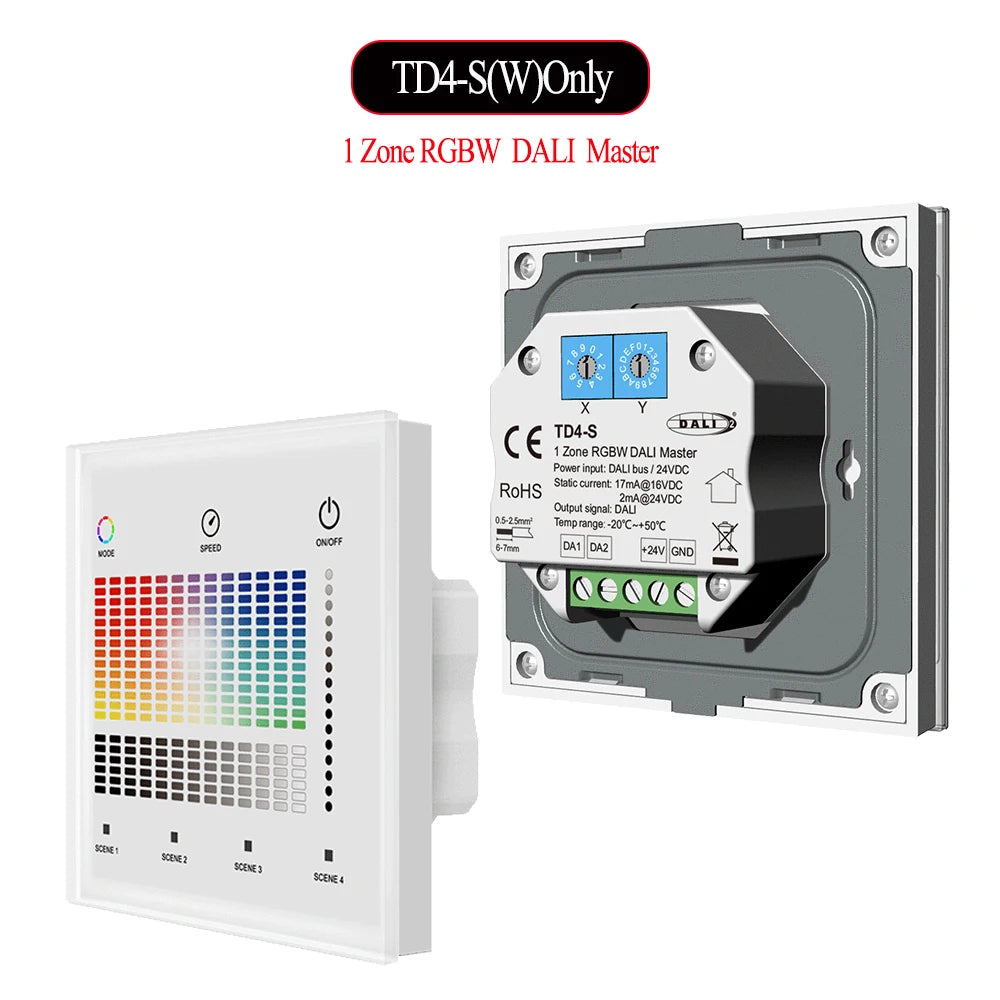

MODEL NO : TD1-S, TD2-S, TD3-S, TD4-S, TD5-S
TD1/2/3/4/5-S is a series of 1-5 colour DALI touch master panels for controlling lighting control systems
and DALI DT6/DT8 devices for use in a wide range of schools, retail, hospitals and offices.Features
● 1 DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB or DT8-RGBW.
● Powered by DALI bus or 24VDC.
● DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,
103 and in compliance with DALI products from other international incorporation.
● Encoding switch select addresses, support 4 control modes: scene, grouping, unicast and broadcast.
● Match with RF 2.4G single zone or multiple zone remote control optional.

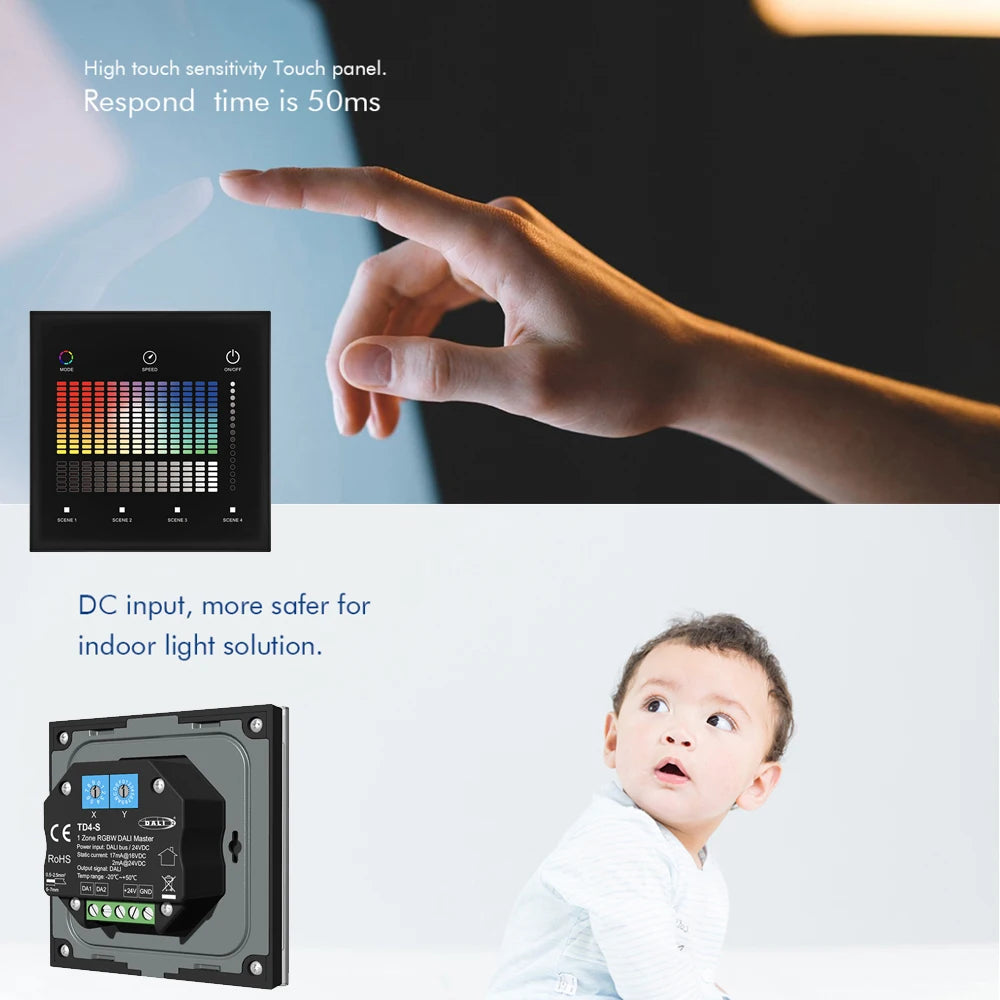

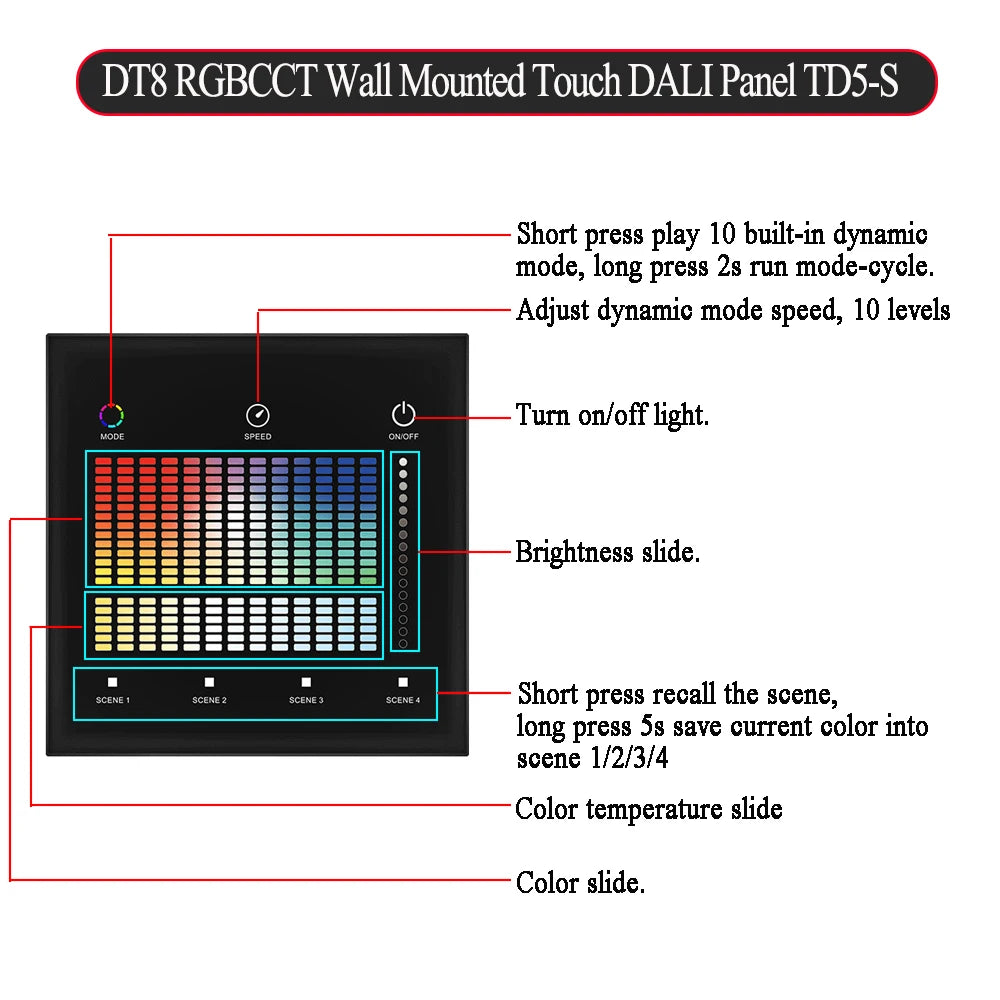

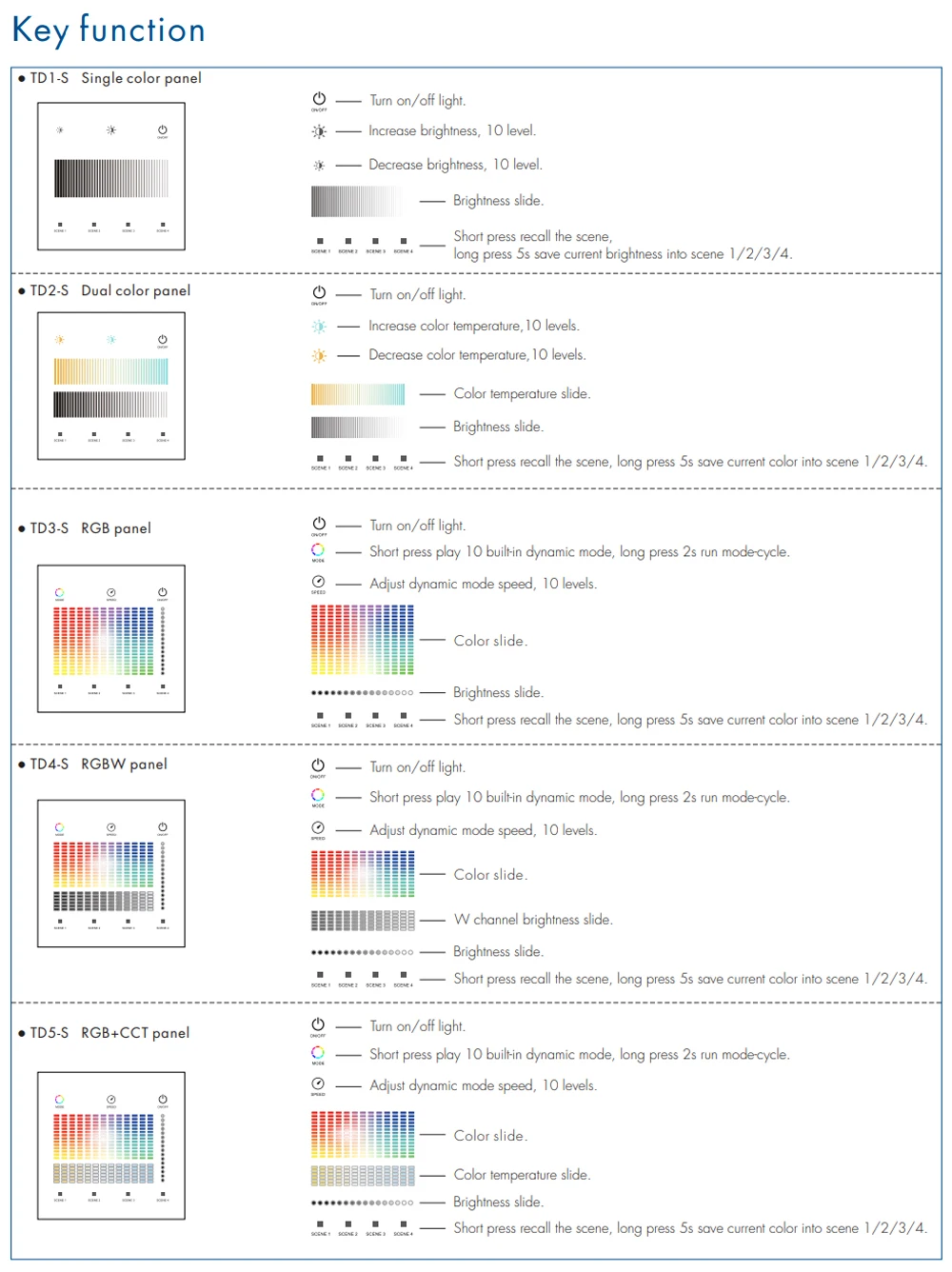

● Ultra sensitive high strength glass touch panel with touch color slide.
● Smooth and accurate color adjustment by touching the color slide.
● 4 scenes memory.

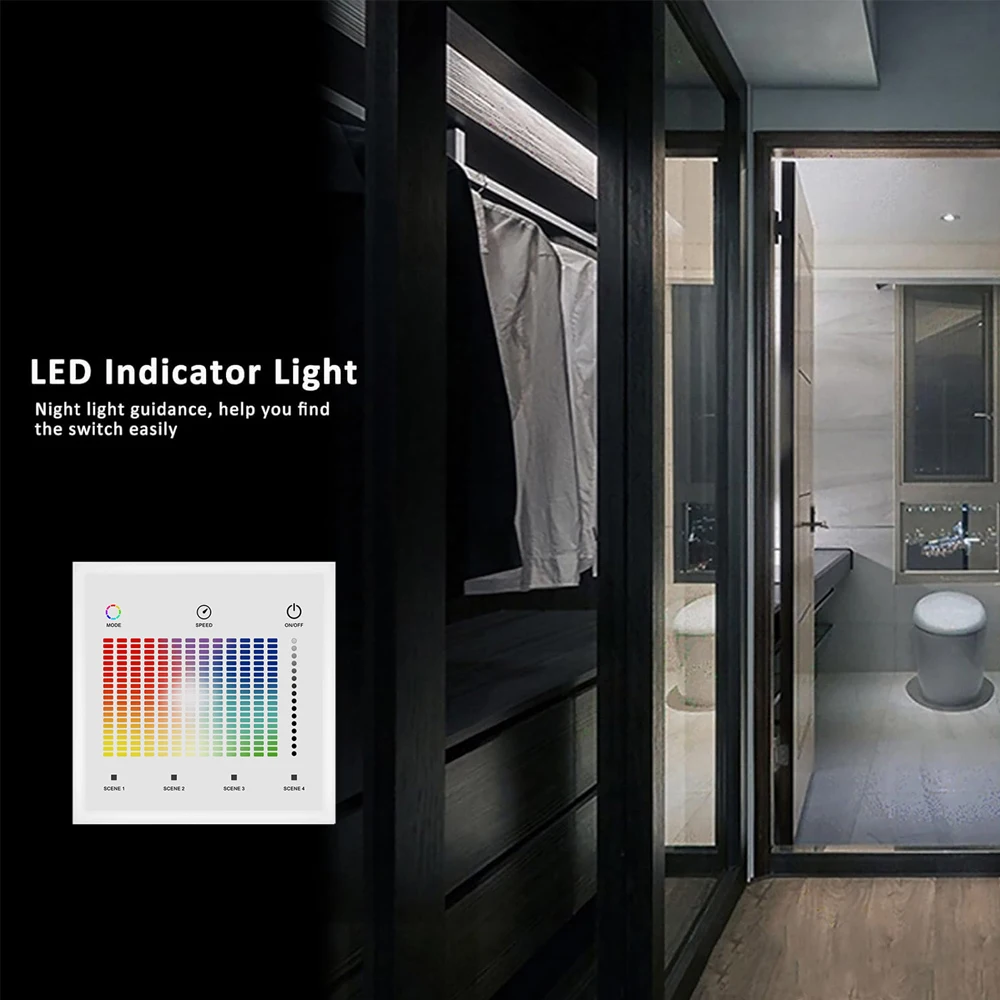

● Touch keys with LED indicator.

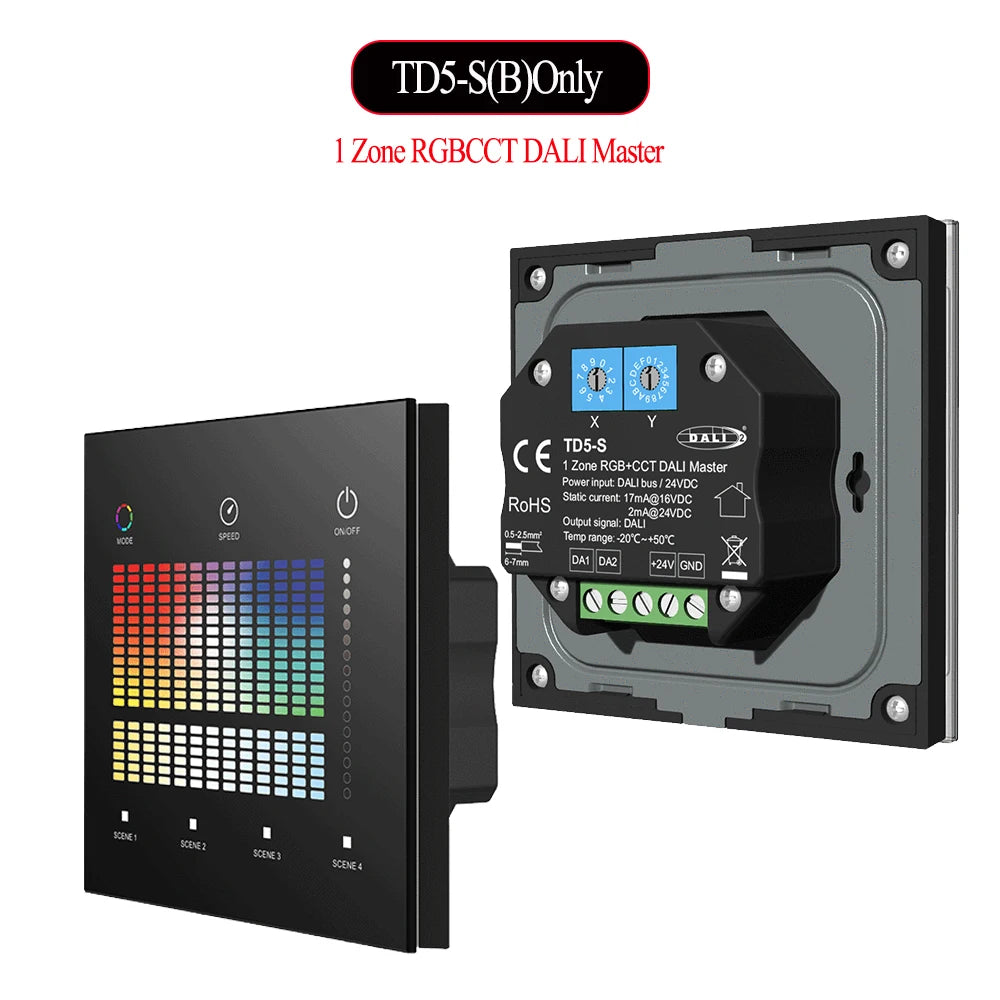

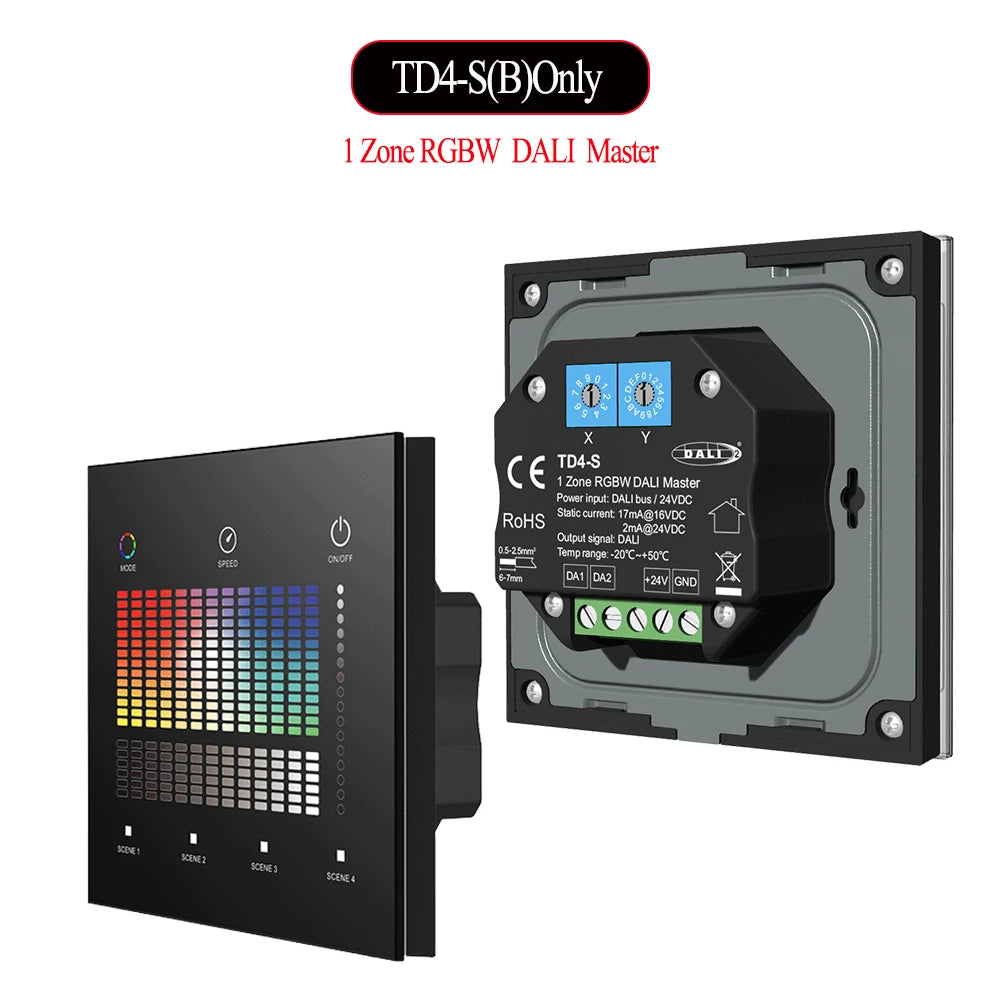

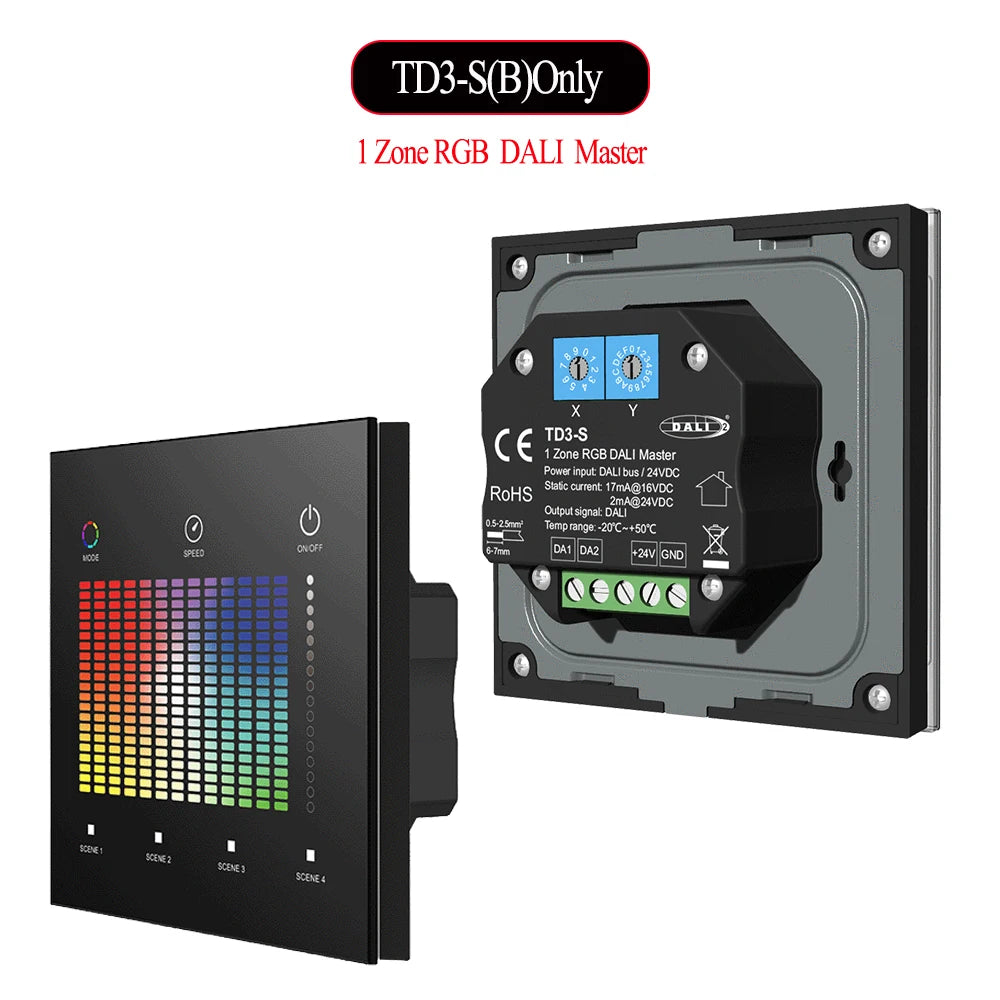

● White & Black glass panel available.
-
