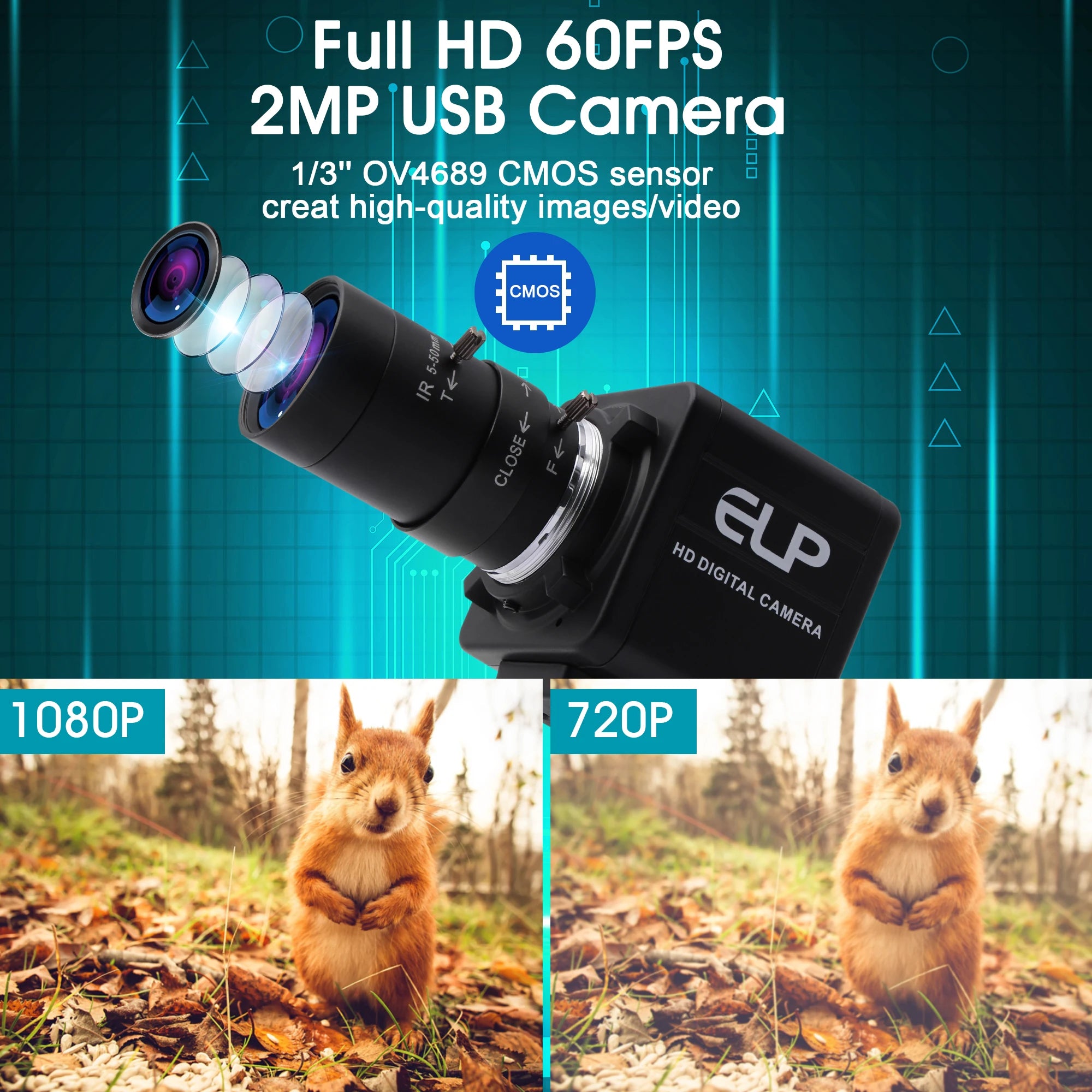

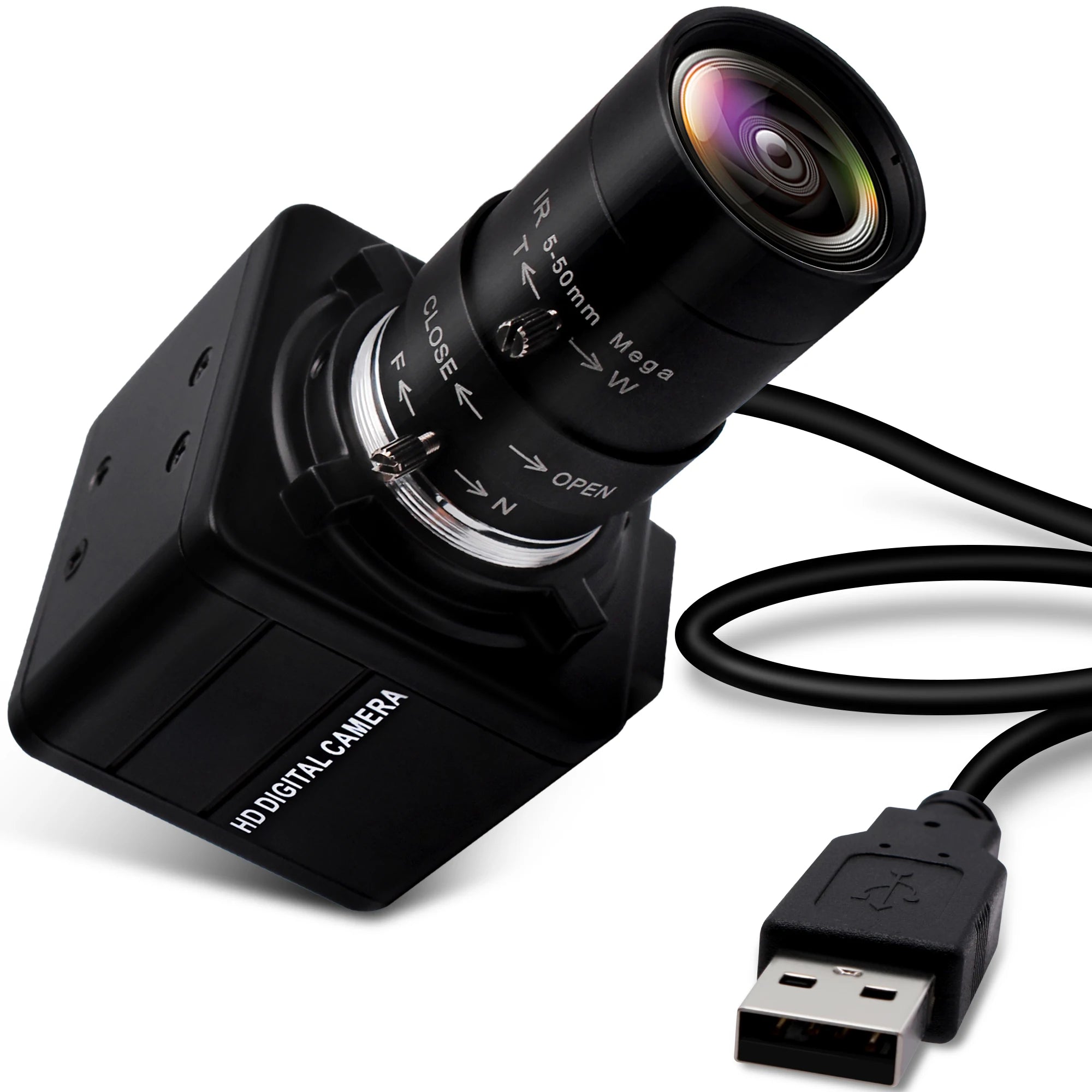

ELP High Speed Camera 260fps 120fps 60fps 1080p 720p Manual Zoom Webcam OV4689 UVC Plug Play PC USB Camera for Motion Video
$188.18
-
Description
Description
SPECIFICATIONS
Audio Output: None
Brand Name: ELP
Cable: 3m cable for Webcam
Camera 260fps Image Sensor: OmniVision OV4689 Webcam
Camera USB Lens: 2.8-12mm / 5-50mm /6-60mm varifocal lens optional
Certification: CE,FCC,RoHS
Color: black
Compression format: MJPEG / YUV2(YUYV)
Connecting Port type: USB2.0 High Speed Camera
Connectivity: usb
Dimensions (L x W x D)(mm): 42*42mm
High Definition: 1080P(Full-HD)
High frame rate frame: MJPEG 1080P 60fps ,720P 120fps ,360P 260fps
High-concerned chemical: None
IR Distance(m): 0
Installation: Normal
Internal Storage: None
Lens (mm): 2.8-12mm,5-50mm,4mm,6mm,8mm,12mm
Lens Quantity: Single Lens
Megapixels: 2 MP
Minimum Illumination(Lux): 0.1Lux
Model Number: ELP-USBFHD08S-MFV
Operating system request: Android, Linux, windows8 or above, MAC 10.4.8 or later
Origin: Mainland China
Power Consumption(W): DC 5V/ current: 150mA
Power Supply: Normal
Power Supply(V): 5V
Sensor: CMOS
Sensor Brand: Omnivision
Shutter Type: Electronic rolling shutter / Frame exposure
Special Features: mini
Style: Mini Camera
Supported Mobile Systems: Android
Supported Operating Systems: Windows 10,Windows Vista,Windows 8,Windows 7,macOS,Windows XP
TF Card: None
Technology: High speed usb 2.0 interface
USB Camera Resolution: 1920X1080P, 2megapixel USB Camera
USB Webcam Mini illumination: 0. 1lux
Video Compression Format: MJPEG
Viewing Angle : 100°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: None
Zoom type: None
is_customized: Yes
ELP High Speed 260fps 120fps 60fps 1080p 720p CS Varifocal Zoom Webcam OV4689 UVC Plug Play PC USB Camera for Motion Video Capture
Package includes:
1) 1PC 2mp high speed usb camera with CS lens(Optional lenses:2.8-12mm/5-50mm/6-60mmvarifocal lens,4mm/6mm/8mm/12mm CS lens)
2) 1PC 3m usb cable3) 1PC User manual
(Optional extra lens for this camera please point this place)

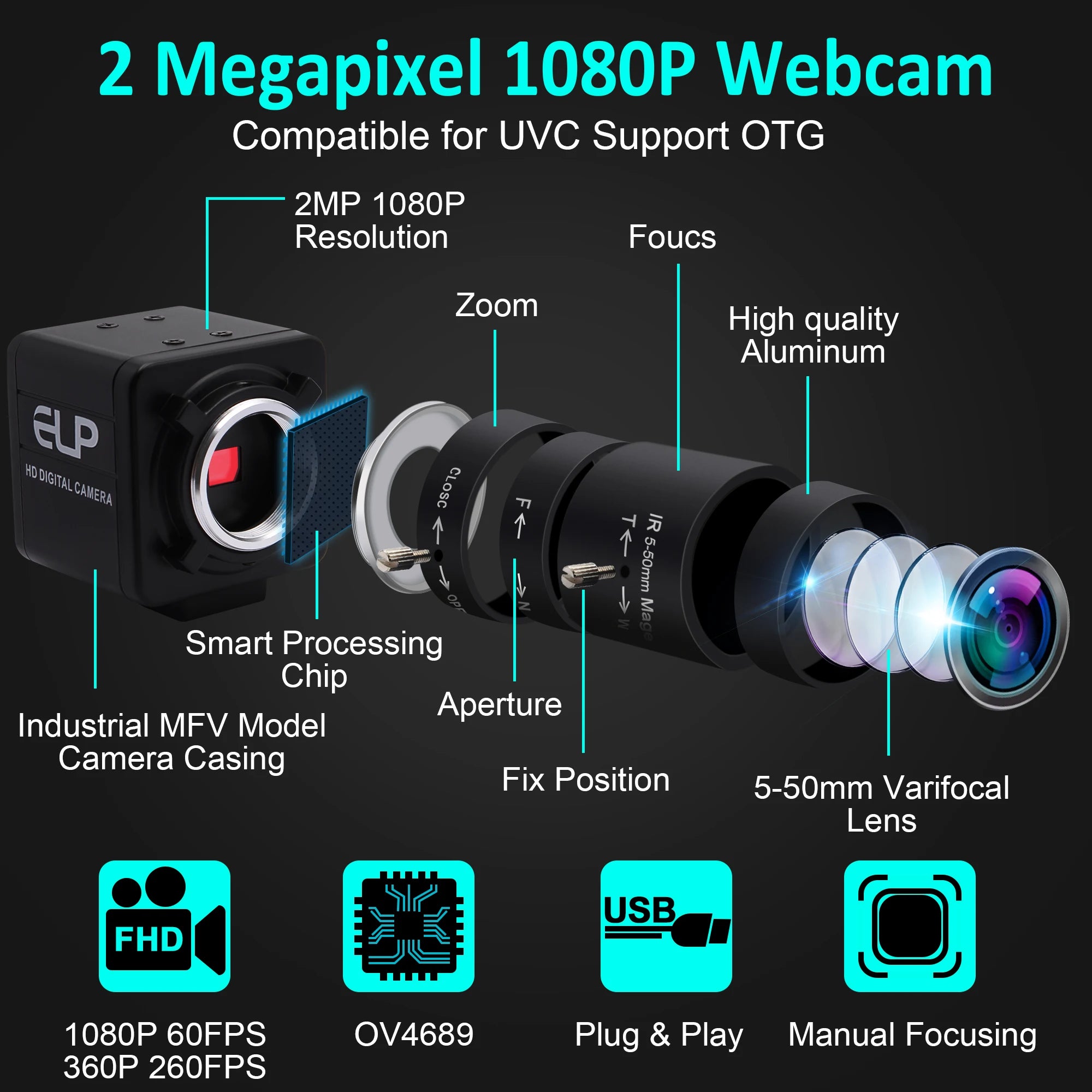

*2.0Megapixel High speed USB Camera
*High qualityOmniVision OV4689 Color CMOS Sensor

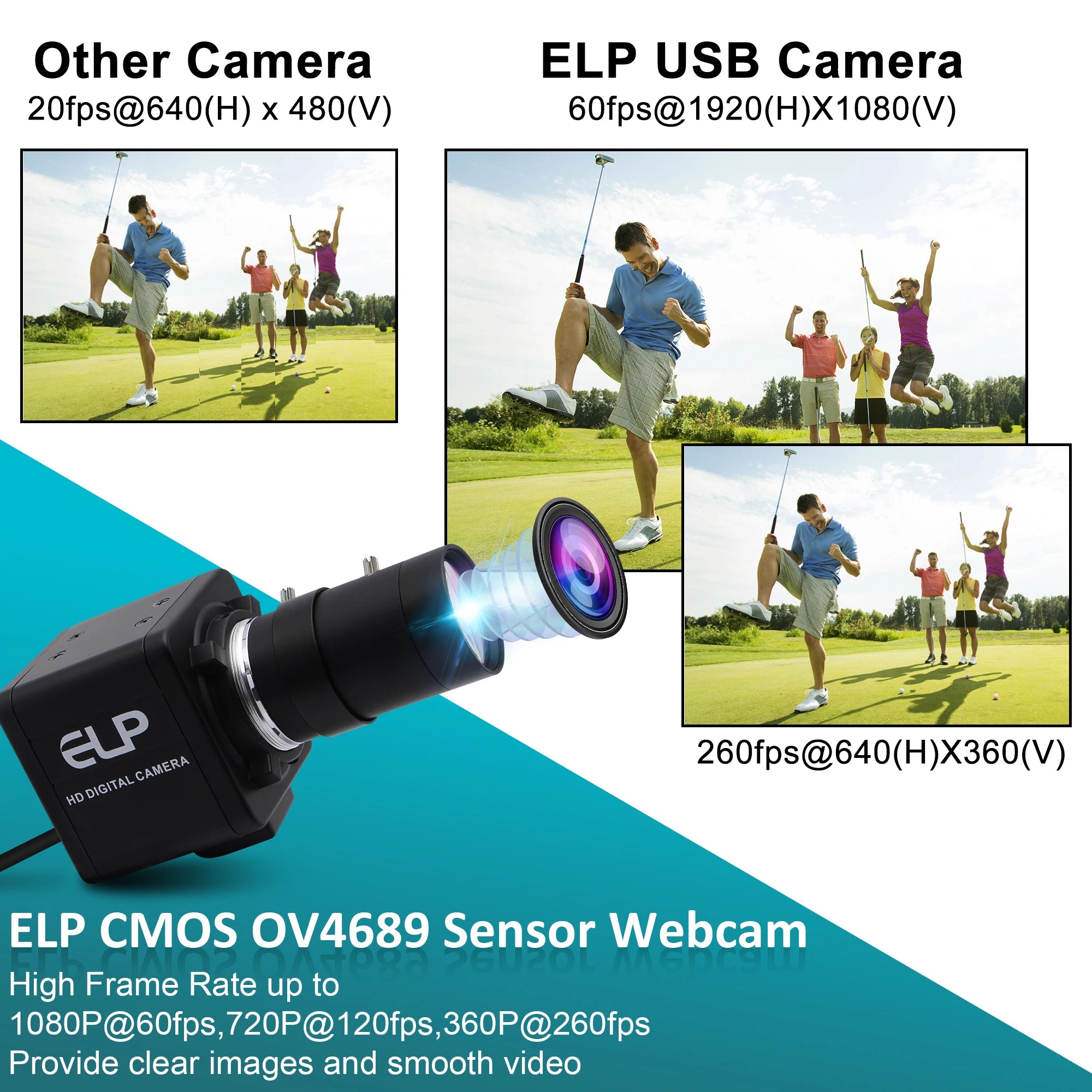

*High frame rate- deliver 640X360MJPEG@ 260fps/1280X720 MJPEG@ 120fps /1920X1080 MJPEG@ 60fps
*UVC compliance for use in OS Windows,Linux, Android
*Operating system request :Win XP/Vista/Win7/Win8 ,Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later ,Android 4.0 or above with UVC

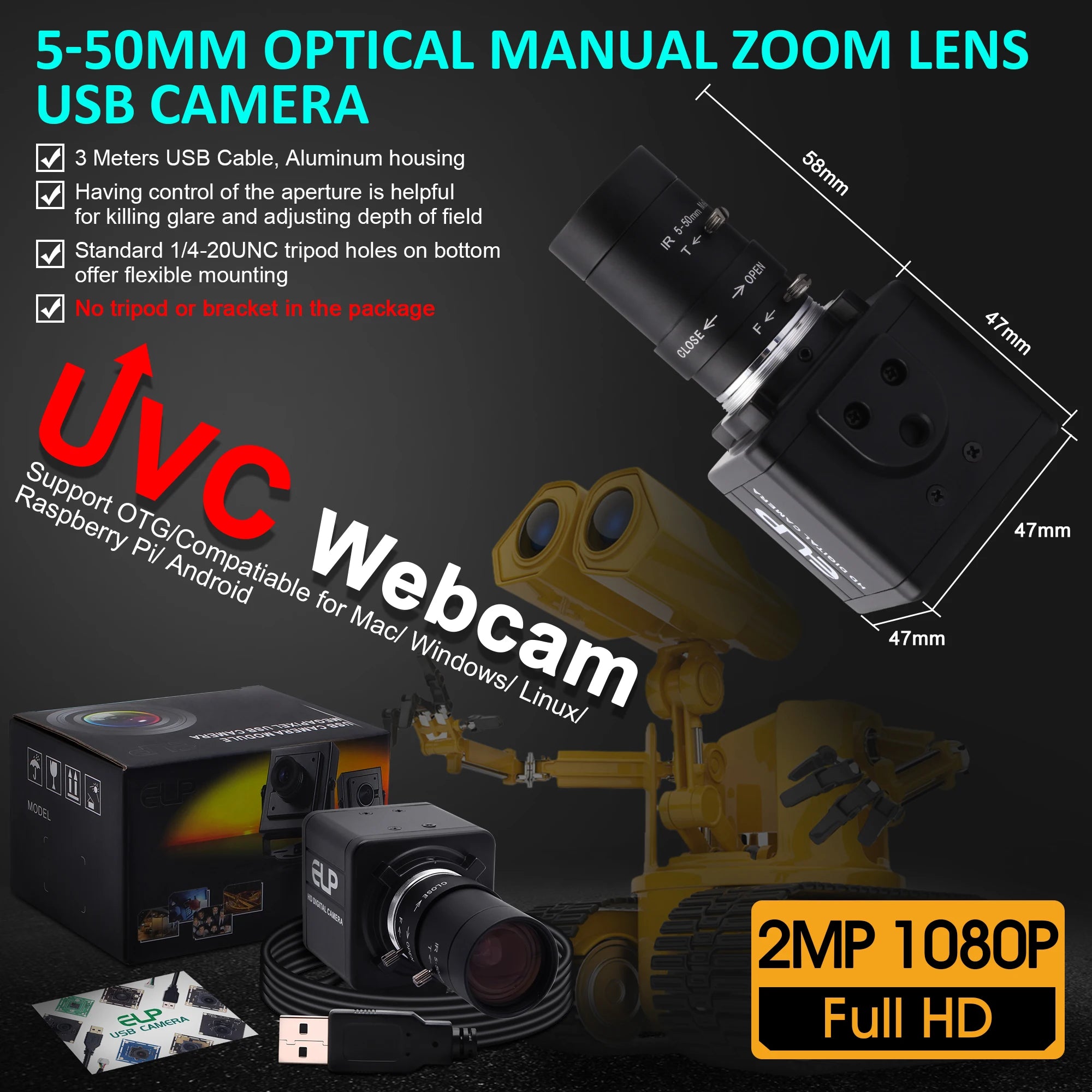

*High quality 2.8-12mm/ 5-50mm / 6-60mm manual varifocal lens,4mm/6mm/8mm/12mm CS lens optional
1. ELP 260fps High Frame Rate USB Camera Main Specifications
Models optional

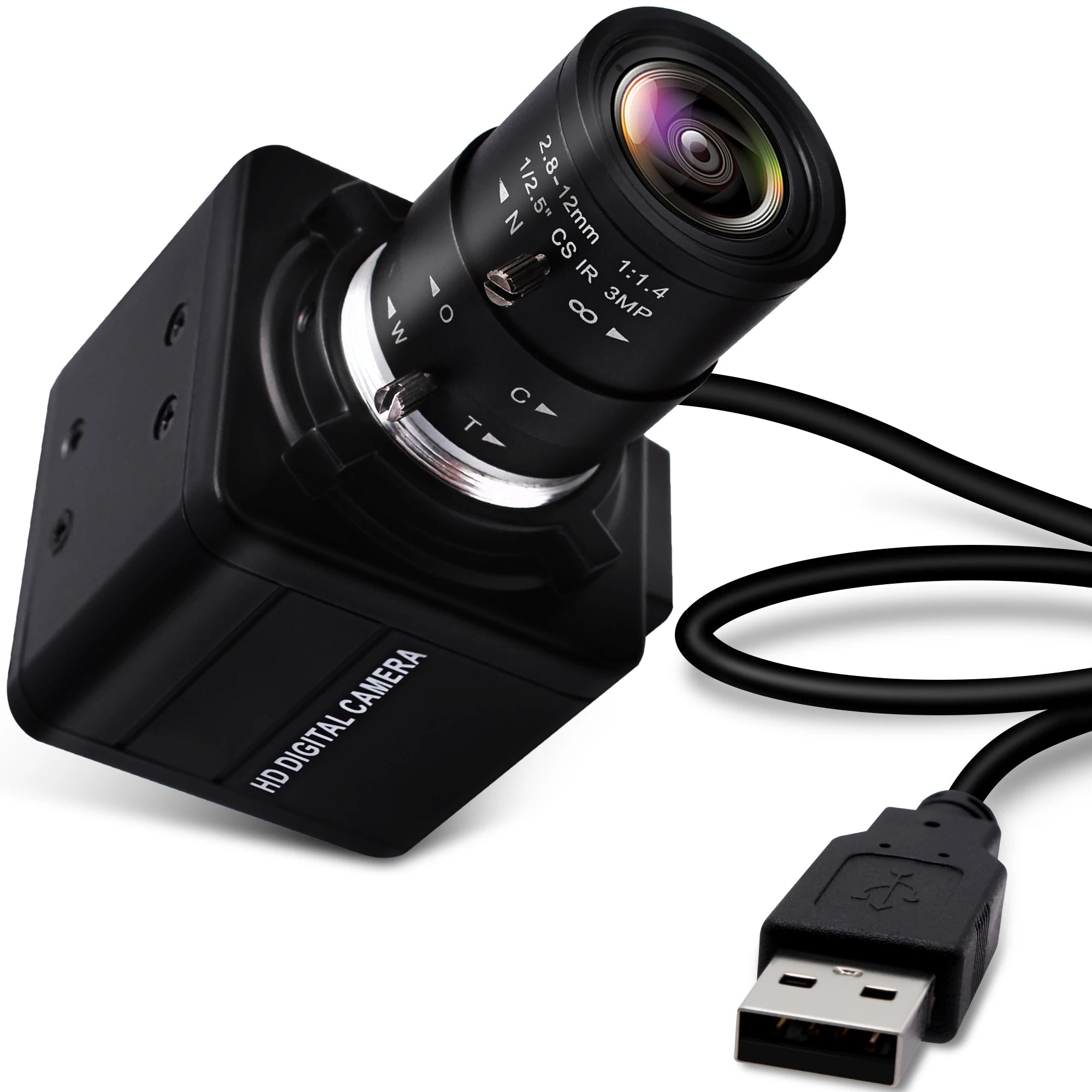

ELP-USBFHD08S-MFV(2.8-12) (with 2.8-12mm varifocal lens)
ELP-USBFHD08S-MFV(5-50) (with 5-50mm varifocal lens)
ELP-USBFHD08S-MFV(6-60) (with 6-60mm varifocal lens)

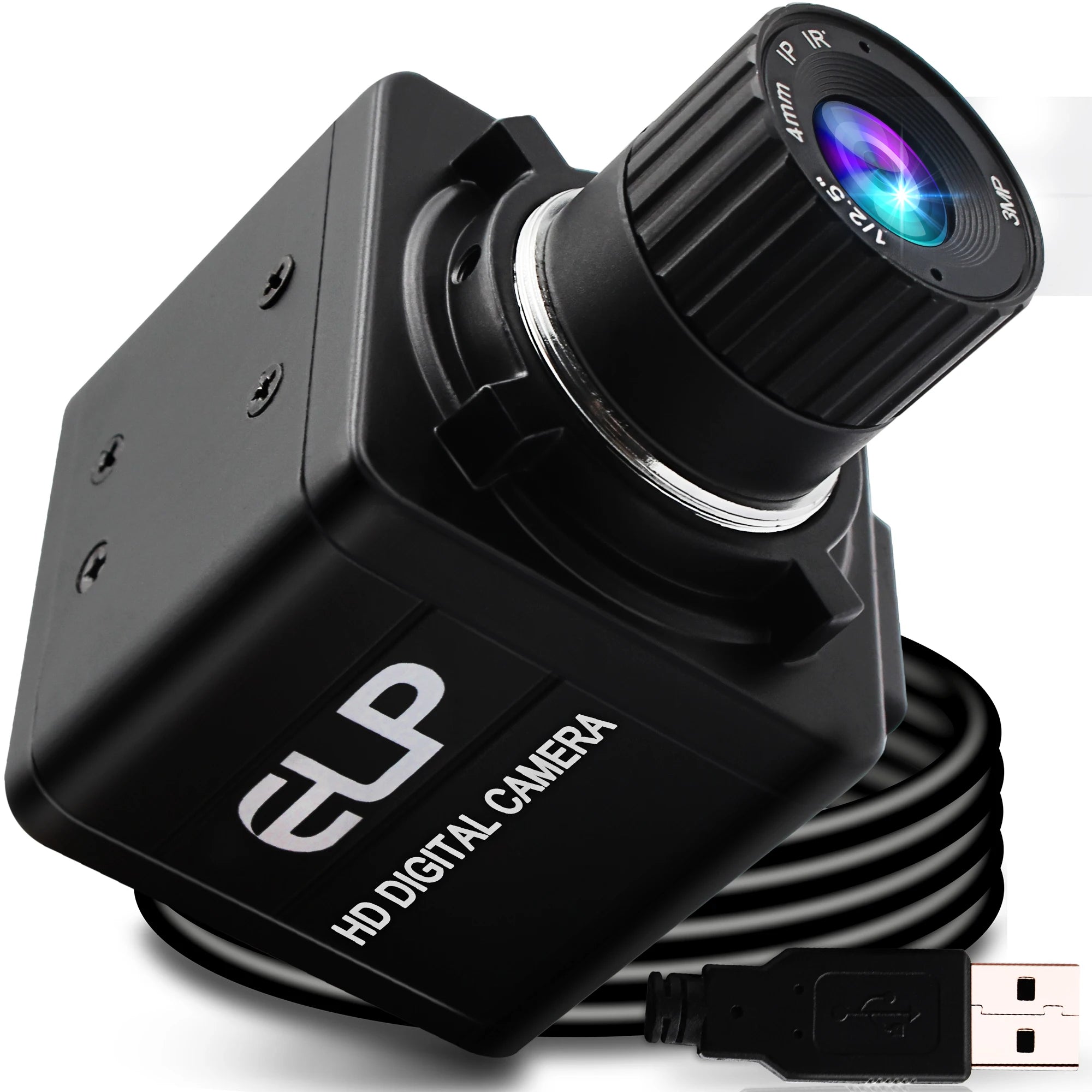

ELP-USBFHD08S-MF40 (with 4mm CS lens)
ELP-USBFHD08S-MF60 (with 6mm CS lens)
ELP-USBFHD08S-MF80 (with 8mm CS lens)
ELP-USBFHD08S-MF12 (with 12mm CS lens)
ELP-USBFHD08S-MF (No lens)
(Only lens is different,other parameter is same)
Sensor
OV4689
Lens Size
1/3inch
Pixel Size
2.0µmX2.0µm
image area
5440µm x3072µm
Max. Resolution
1920(H)X1080(V)
Compression format
MJPEG / YUV2（YUYV）
Resolution & frame
1920X1080MJPEG@60fps
1280X720MJPEG@120fps
640X360MJPEG@260fps
S/N Ratio
38.3dB
Dynamic Range
64.6dB
Sensitivity
1900mV/lux-sec@550nm
Mini illumination
0.1lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free DriveProtocol
USB Video Class（UVC）
AEC
Support
AEB
Support
AGC
Support
Adjustableparameters
Brightness,Contrast,Saturation,Hue,Sharpness,Gamma,
Gain,White balance,BacklightContrast,ExposureLens Parameter
4/6/8/12mm CS lens, 2.8-12/5-50/6-60mm varifocal lens optional
Power supply
USB BUS POWER
Operating Voltage
DC5V
Working current
150mA~185mA
Working temperature
0～70℃
Boardsize/Weight
38*38mm
Cable
Standard 3M
Operating system
request
WinXP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
Used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,Medical auxiliary equipment, etc.
If you need windows test software, please leave me message, will send you:
High frame rate 1080P USB Camera,
Real fps shown via windows software:

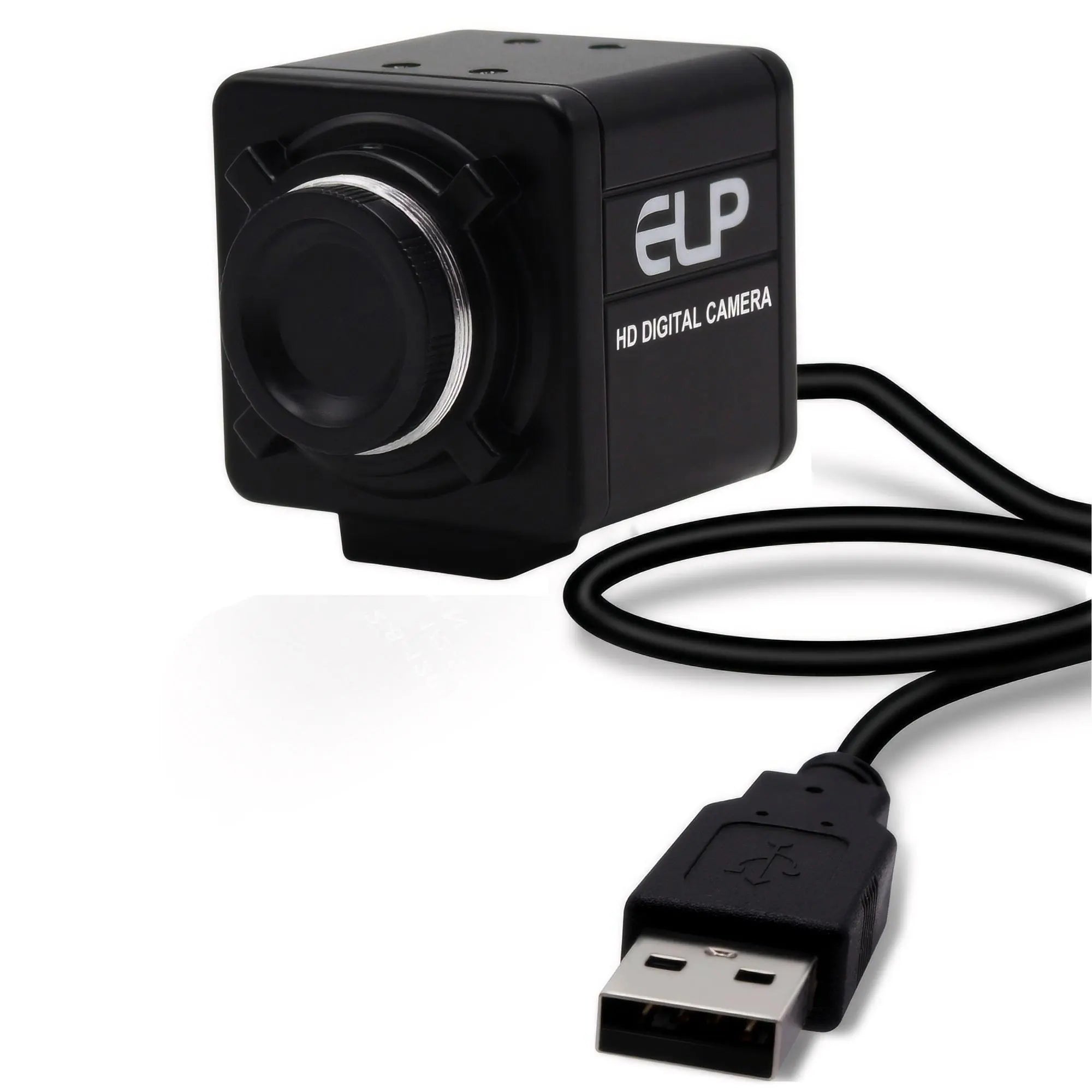

If you choose the camera without lens, then the camera will come without lens as below picture:
Optional lenses for this high frame rate usb camera:

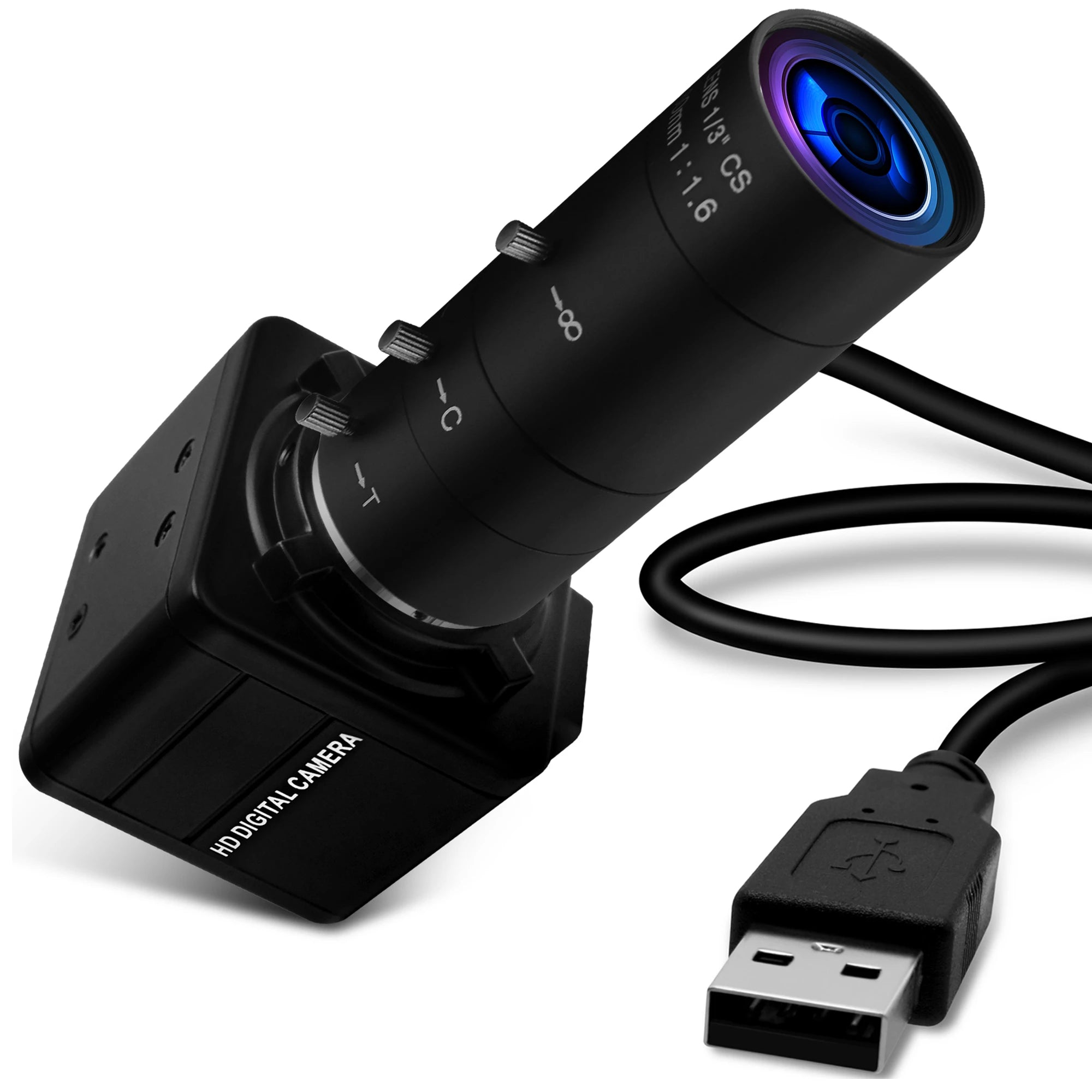

2.8-12mm/5-50mm/6-60mm manual varifocal CS mount lens
4mm/6mm/8mm CS mount lens optioanl
CS mount Lens is changable:(IF you need CS to C adapter, please tell
me)
Effect picture:
