  SPECIFICATIONS

  Brand Name: LDGOTY

  High-concerned chemical: None

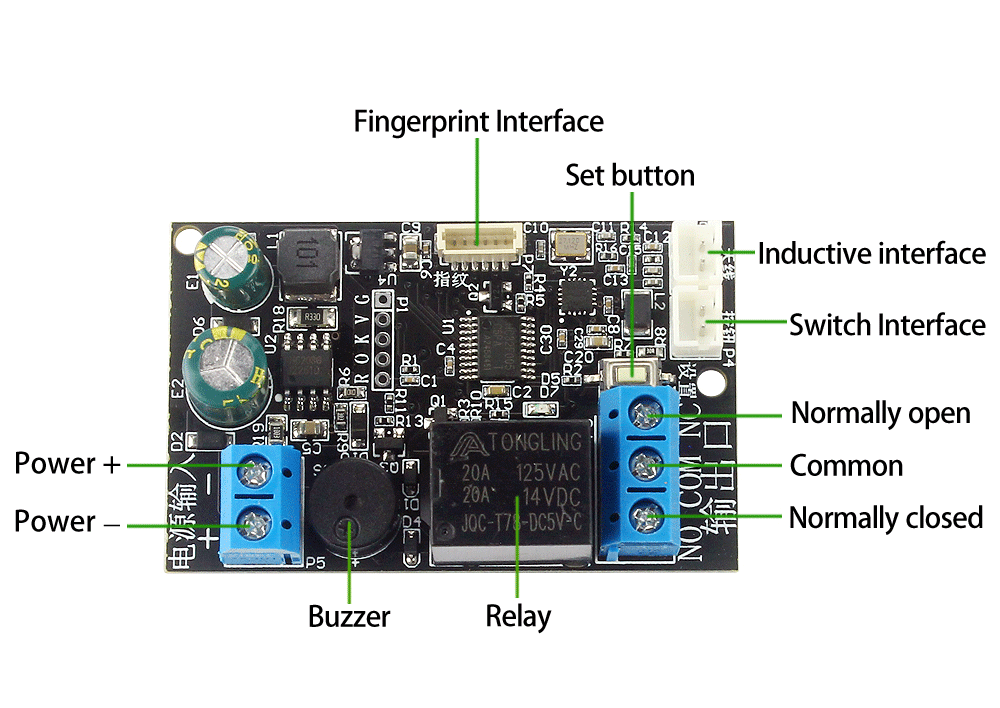

  Interface: Lock Control,Exit Button

  Model: DX-130D

  Origin: Mainland China

  Multi-function fingerprint sensor card relay module, support fingerprint, IC card, mobile phone NFC multiple control modes; meet your various needs; easy installation; suitable for DIY user modification, can be used for door lock control, vehicle modification, electrical control, and other occasions .



  Features:

  1. Compatible with DC10V-120V voltage range;

  2. Three verification methods: fingerprint, IC card, mobile phone NFC

  3. Three control modes can be switched: jog mode, self-locking mode, ignition mode;

  4. In the jog mode, the output time can be adjusted, and the output can be up to 15 minutes;

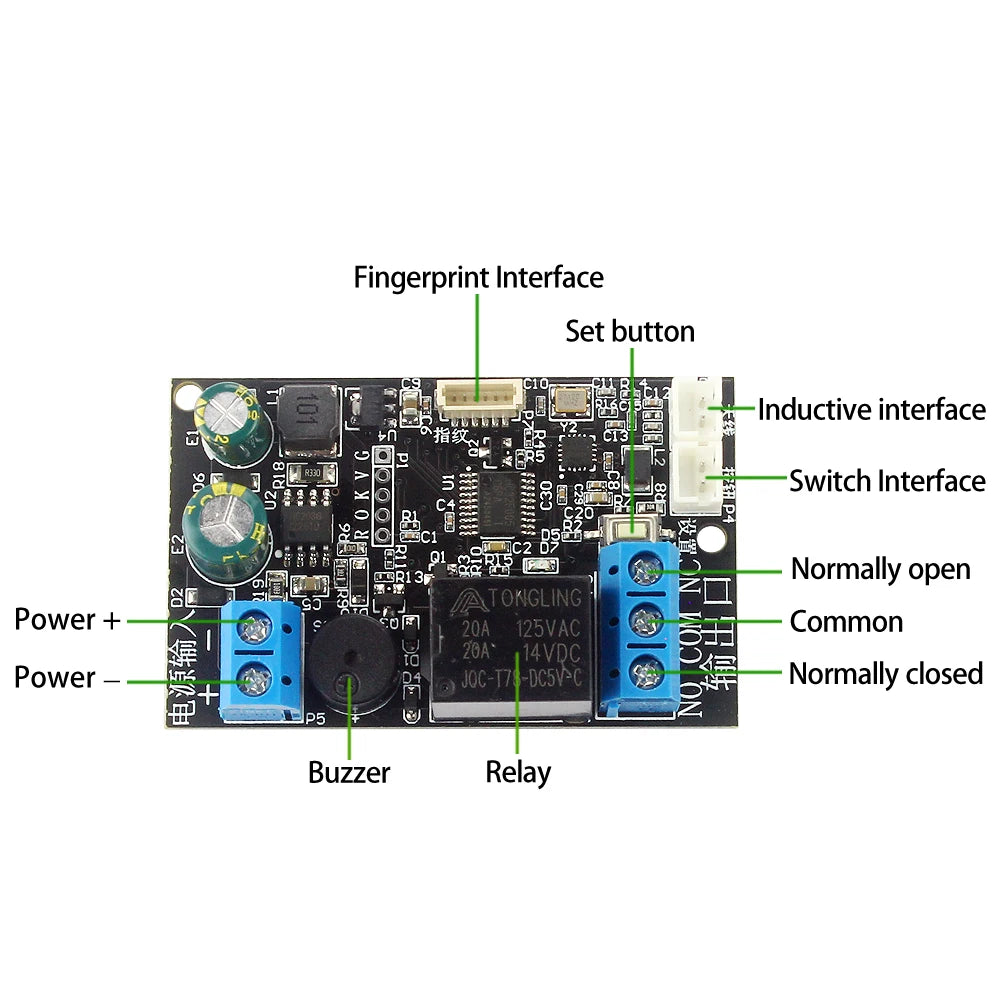

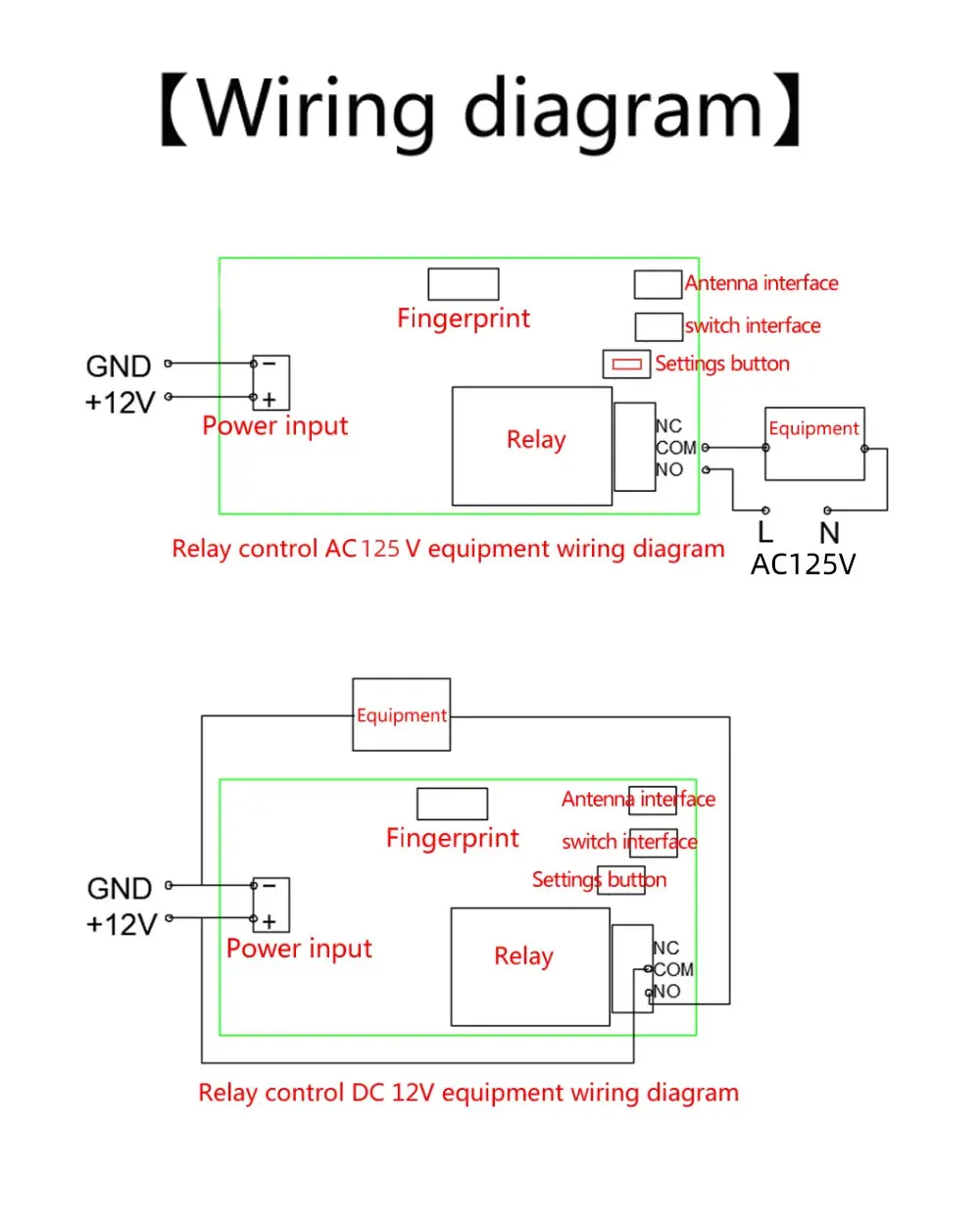

  5. With relay normally open and normally closed output control.

  6. IC card/NFC sensing distance: ≥25mm

  7. can be connected to the exit button


  Three control modes:

  Inching mode:turn on after fingerprint recognition; automatically turn off after releasing the finger and reaching the set delay time.

  Self-locking mode:turn on after recognizing the fingerprint; after releasing the finger, it will be disconnected immediately after re-identifying the fingerprint.

  Ignition mode:keep the fingerprint recognition unreleased; it will keep on all the time, and it will disconnect immediately after releasing the finger

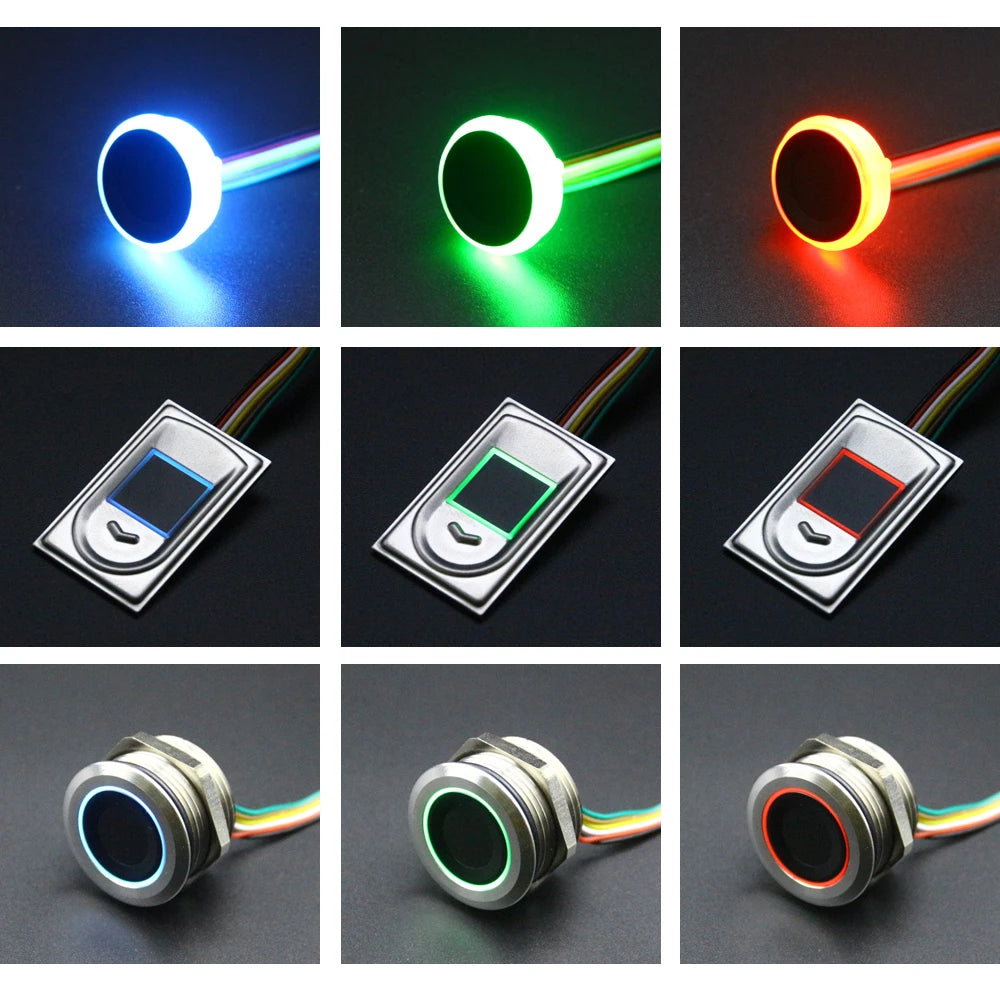

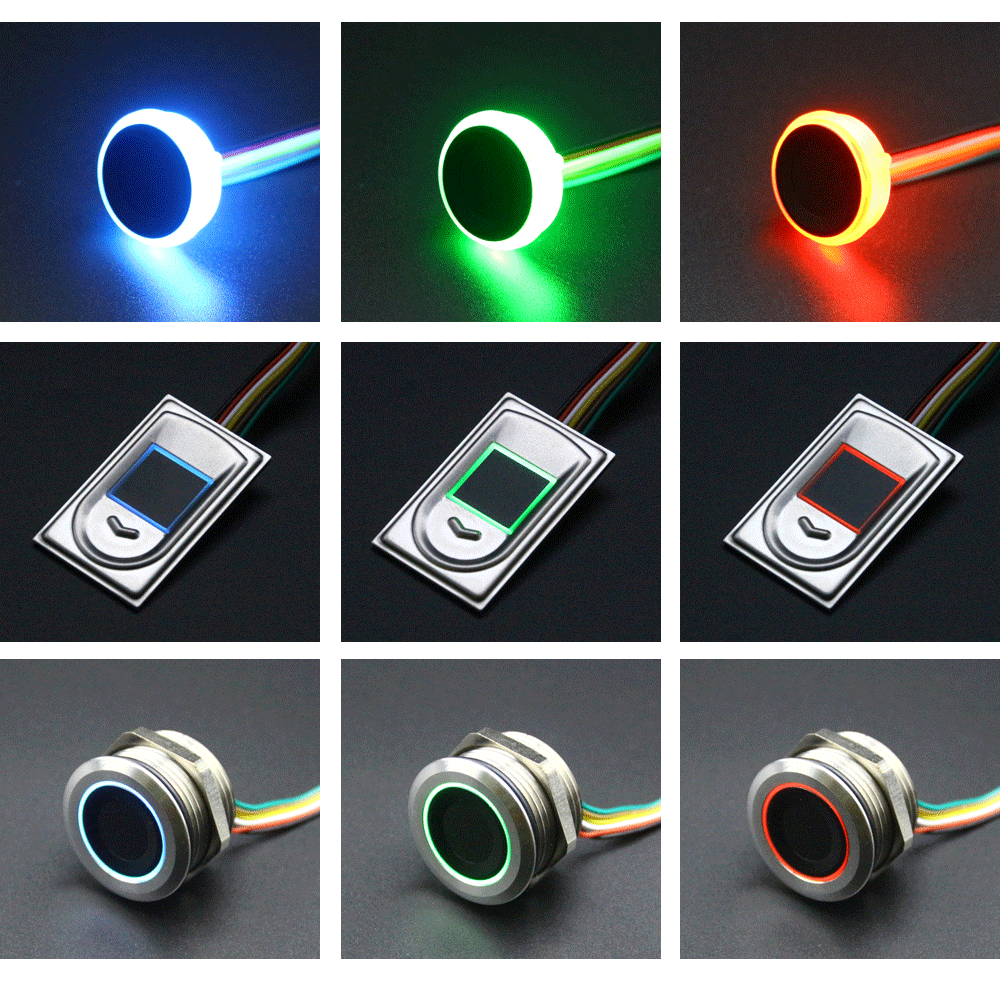

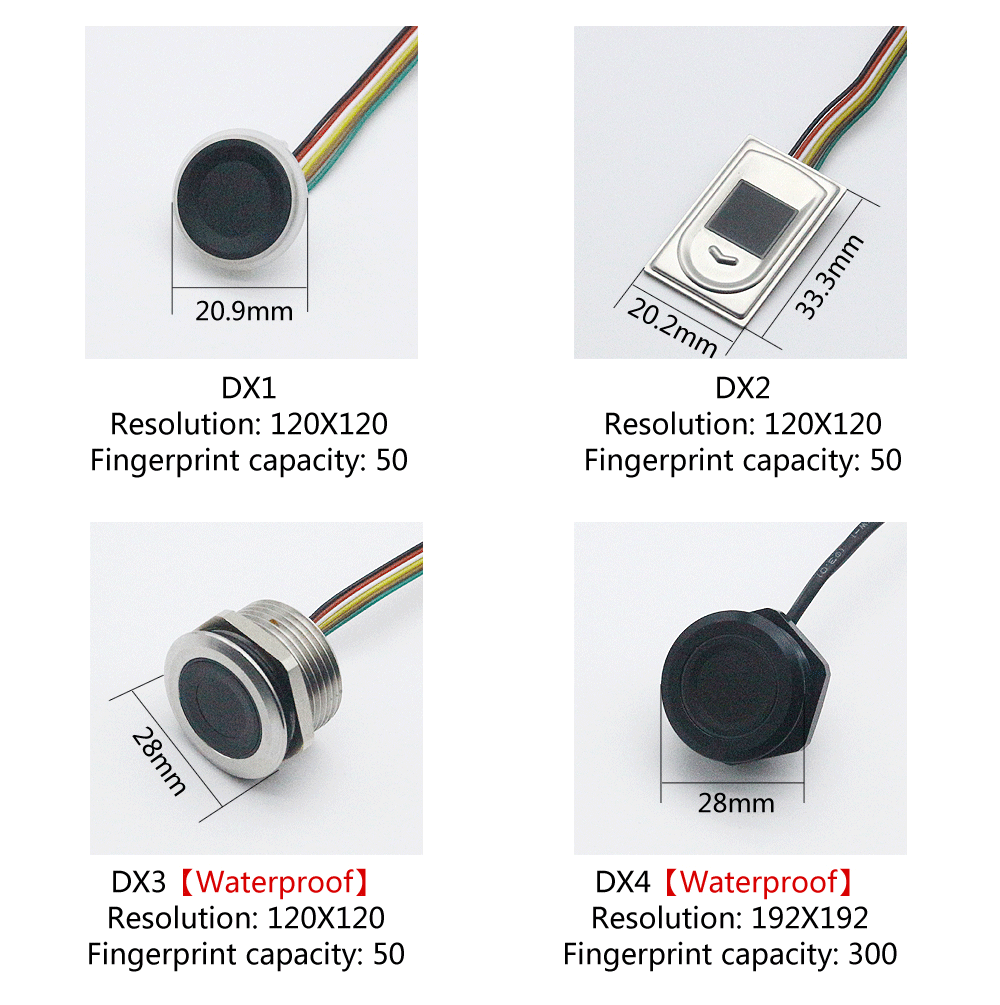

  Note: If you need fingerprint unlocking, you need to select a suit that includes a fingerprint sensor to purchase; the management card and user card have been configured before shipment, and can be used directly after receiving the package without configuring again.

  Note: If you use NFC to unlock your mobile phone, you need to check whether your mobile phone supports NFC function. And your mobile phone must support the function of simulating adding door cards, which is usually used in mobile wallet applications. If you do not support simulated door cards, you cannot use NFC to unlock your mobile phone. (The NFC door card simulation application downloaded from the application market cannot be compatible and must be possessed by the mobile phone itself)

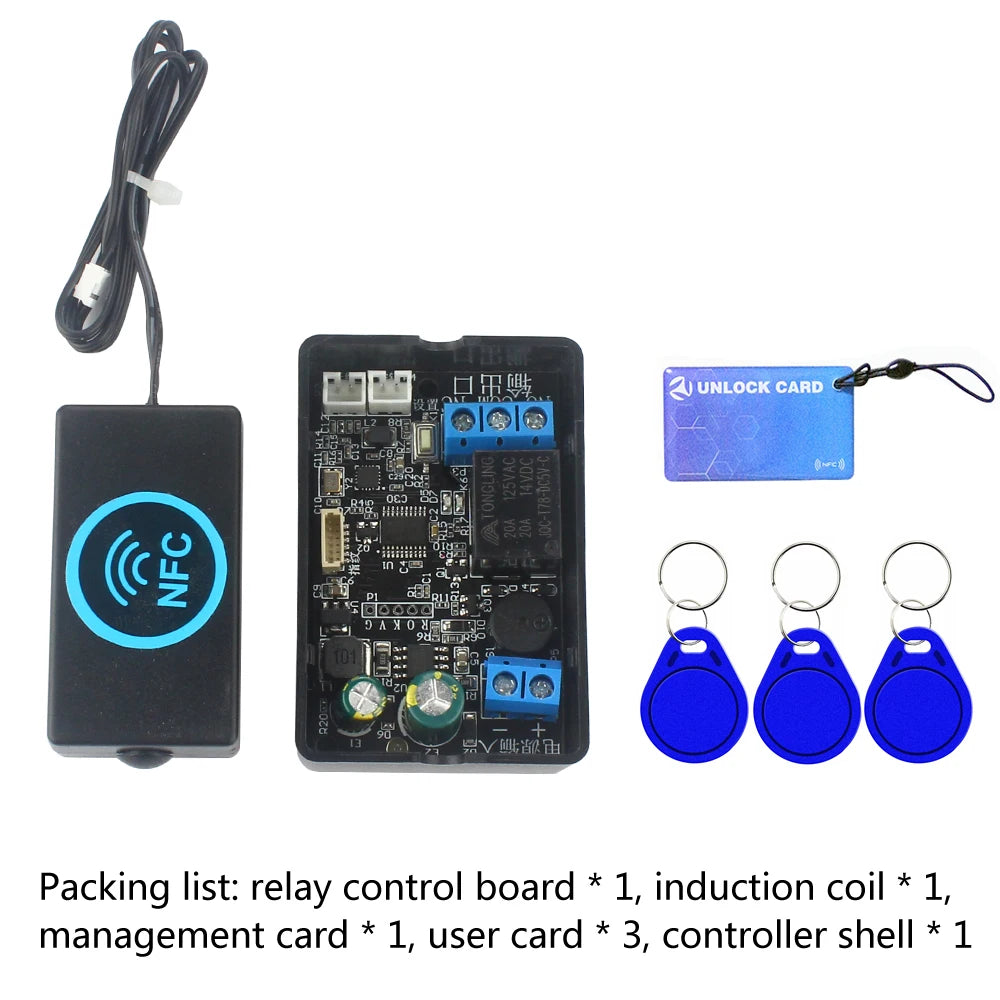

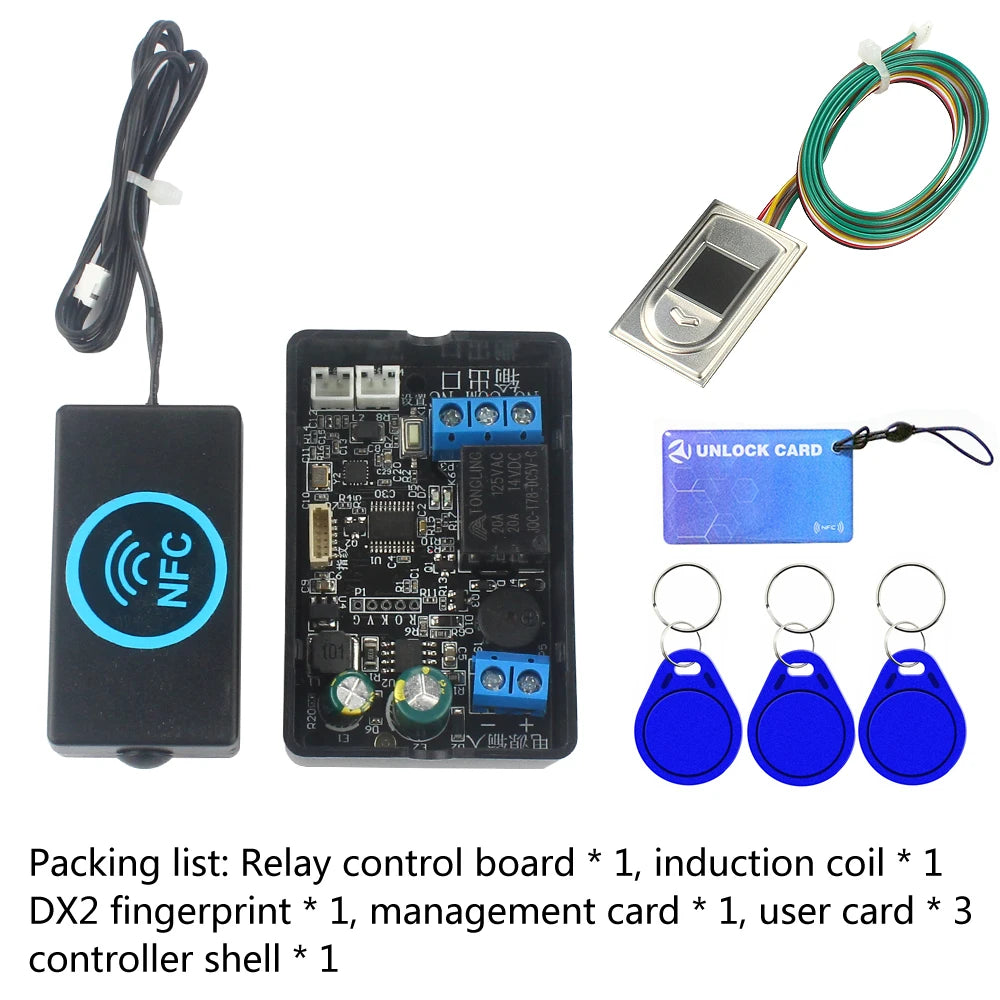

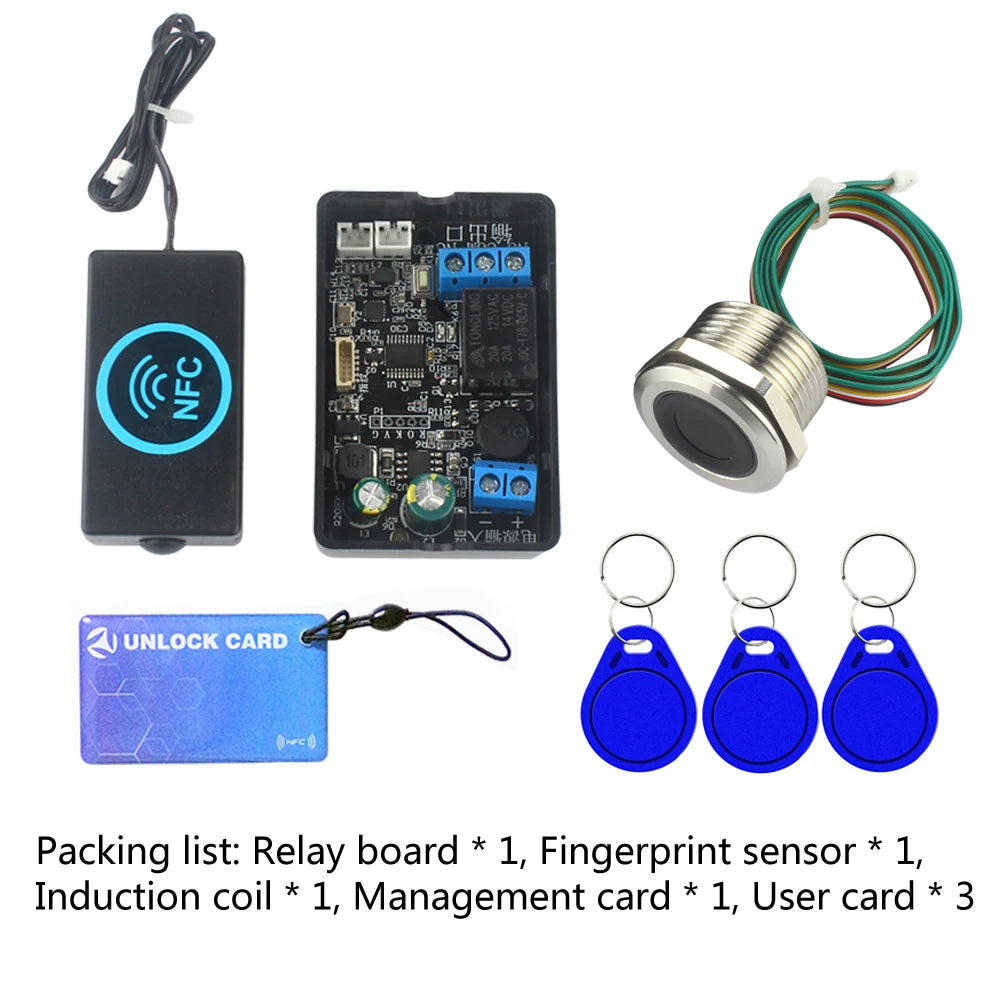

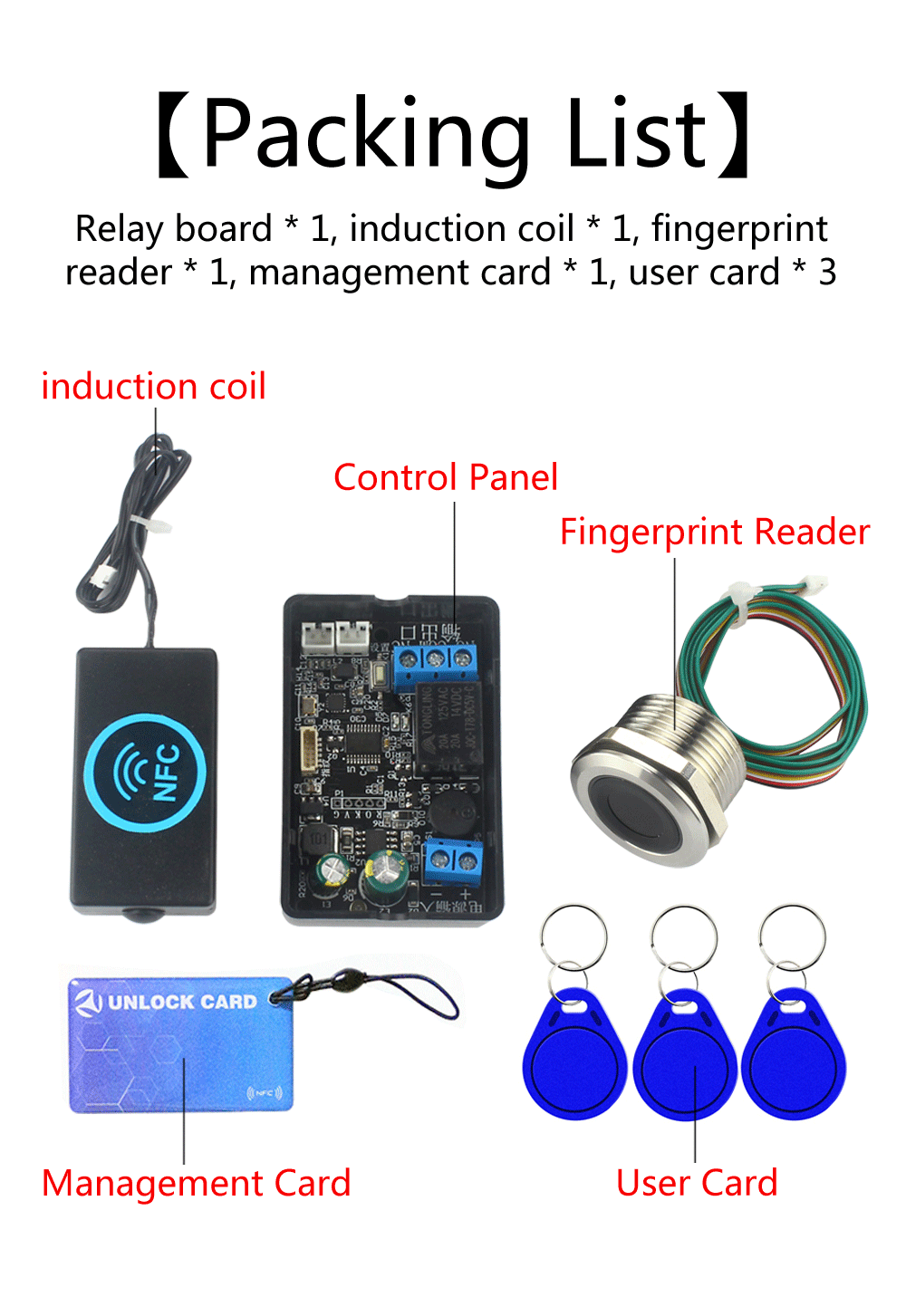

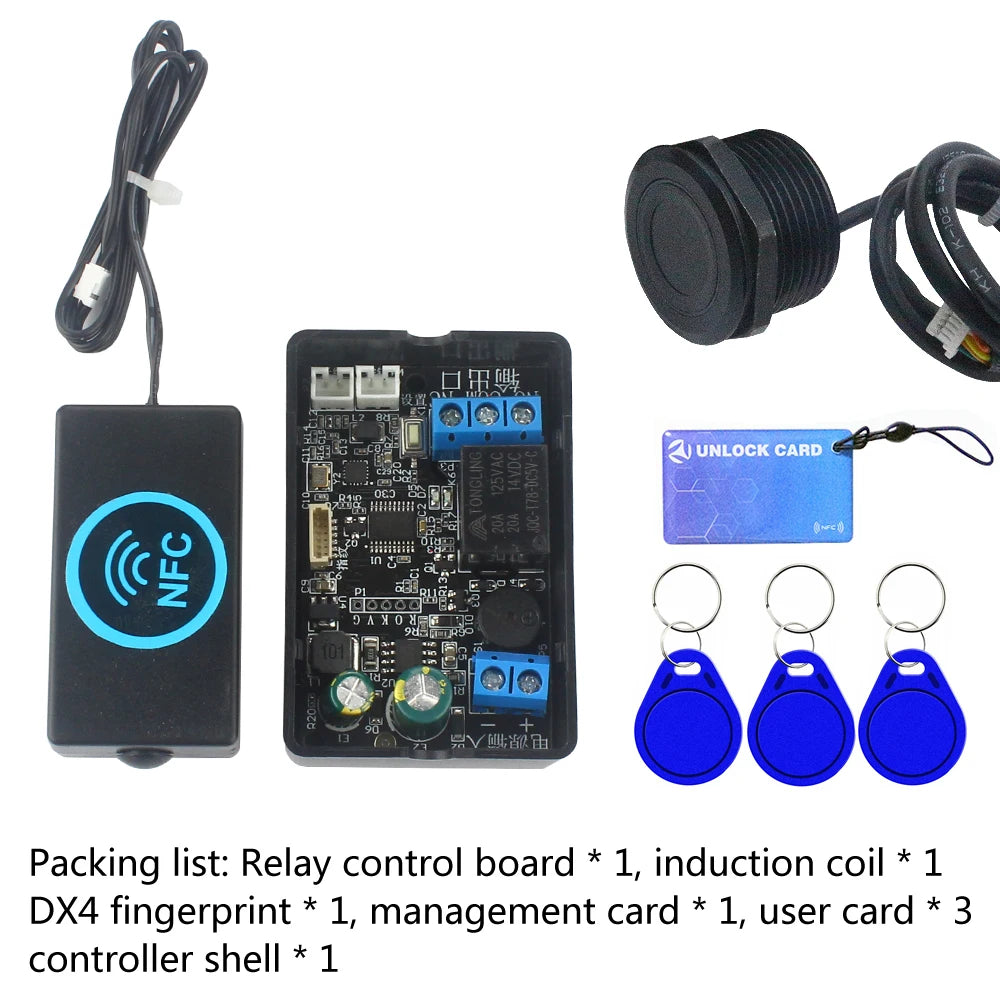

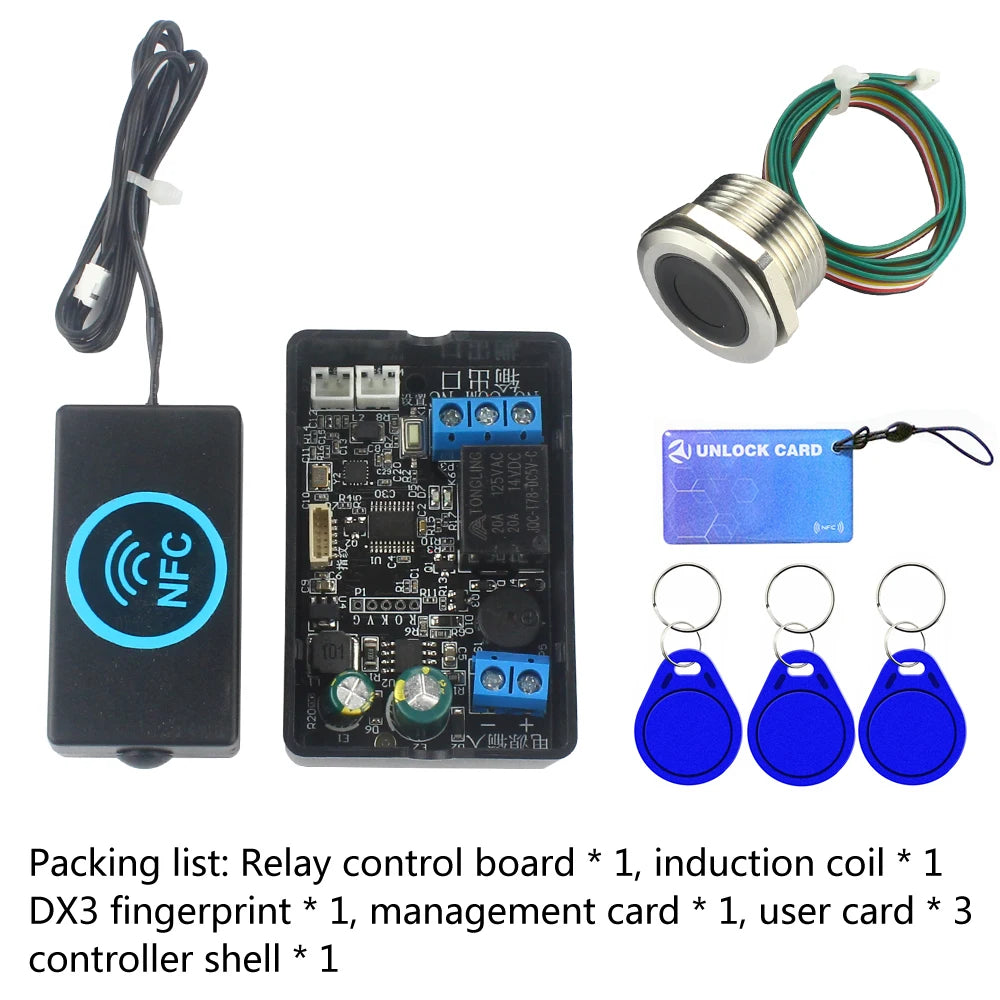

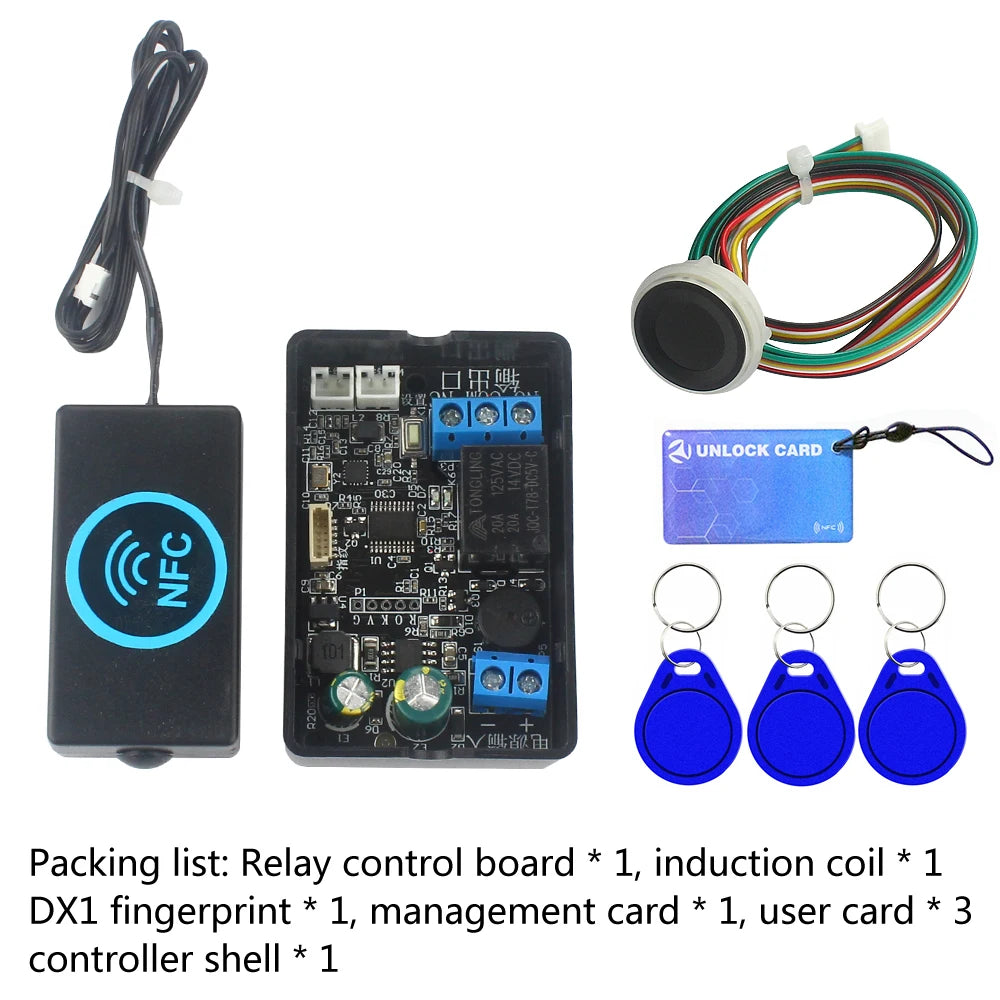

  Packing list:

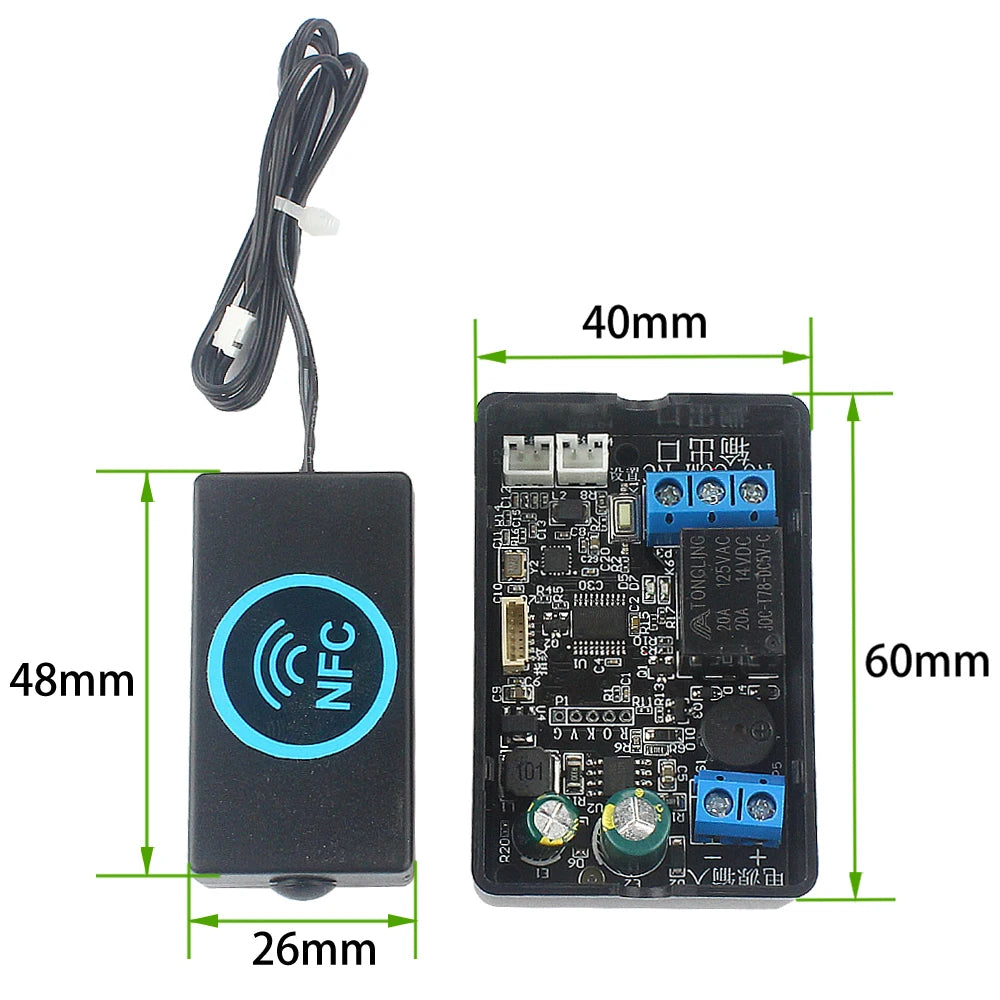

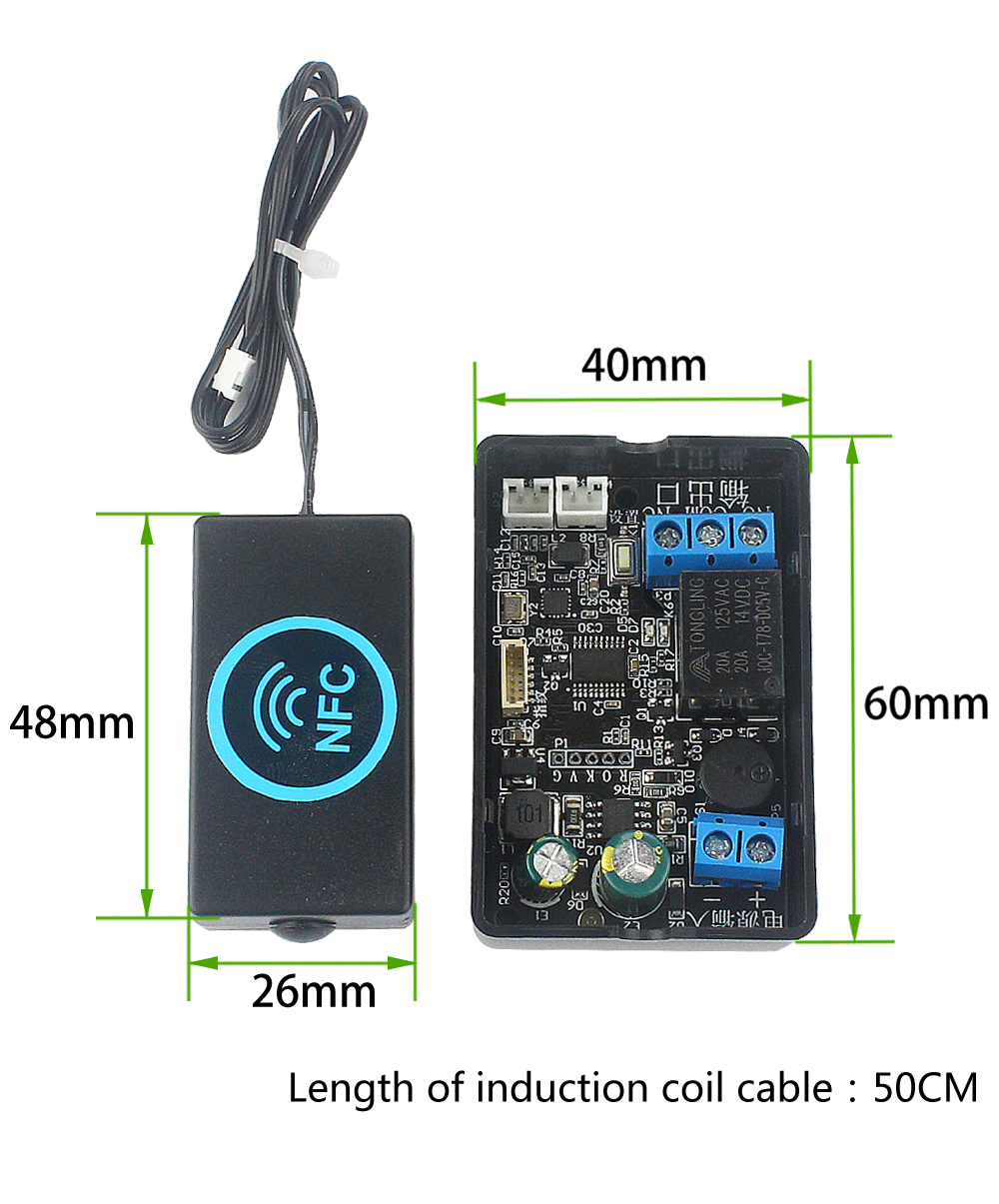

  Control board + shell x1, induction antenna x1, management card x1, user card x3

  (fingerprint reader purchased separately according to demand)
