OBO Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home

• Compare
• Add to Wishlist
• Ask a question
  Ask a question

  Submit now

• Description

  Description

  SPECIFICATIONS

  Brand Name: OBO HANDS

  Certification: CE

  Choice: yes

  Direction: None

  Model Number: A1 kit

  Origin: Mainland China

  Security Mode: Fail Safe

  Type: Access control system kit

  Unlock Mode: Password, RFID Card, RFID card+password

  User Capacity: 1000 users

  Working Frequency: 125KHz

  Working Voltage: DC12V




  OBO Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric 180KG Magnetic Lock Strike Door Locks for Home















  A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.





  Product Description

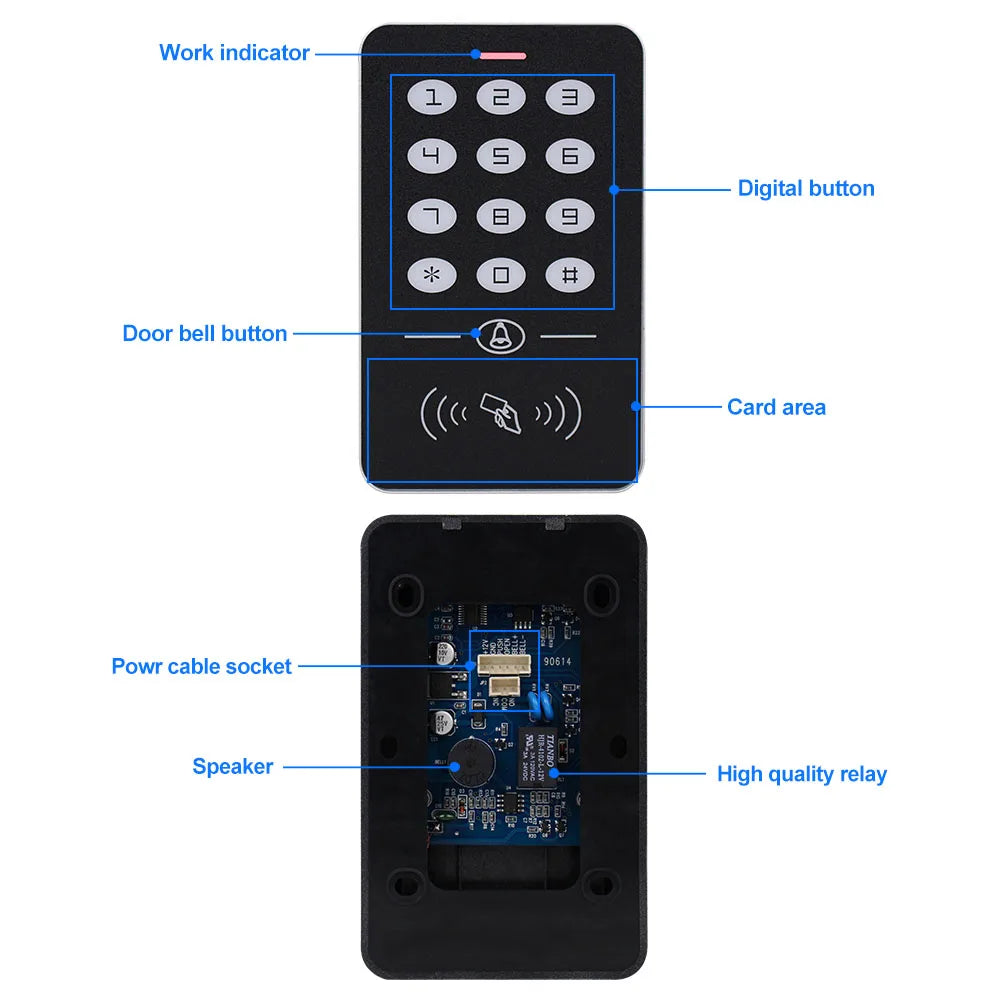

  Access Controller:





  User capacity: 1000

  Card reading type: EM card

  Card reading distance: 1-5CM

  Identification method: card, password, card + password

  Programming password: 123456

  Unlocking time: 5 seconds

  Open the door input: all the way to open the button input

  Doorbell output: one way wired doorbell output

  Can be connected to automatic door or gate

  Working voltage: DC 12V ± 10%

  Working power supply: <100mA

  Working temperature: 0 ° C ~ 60 ° C

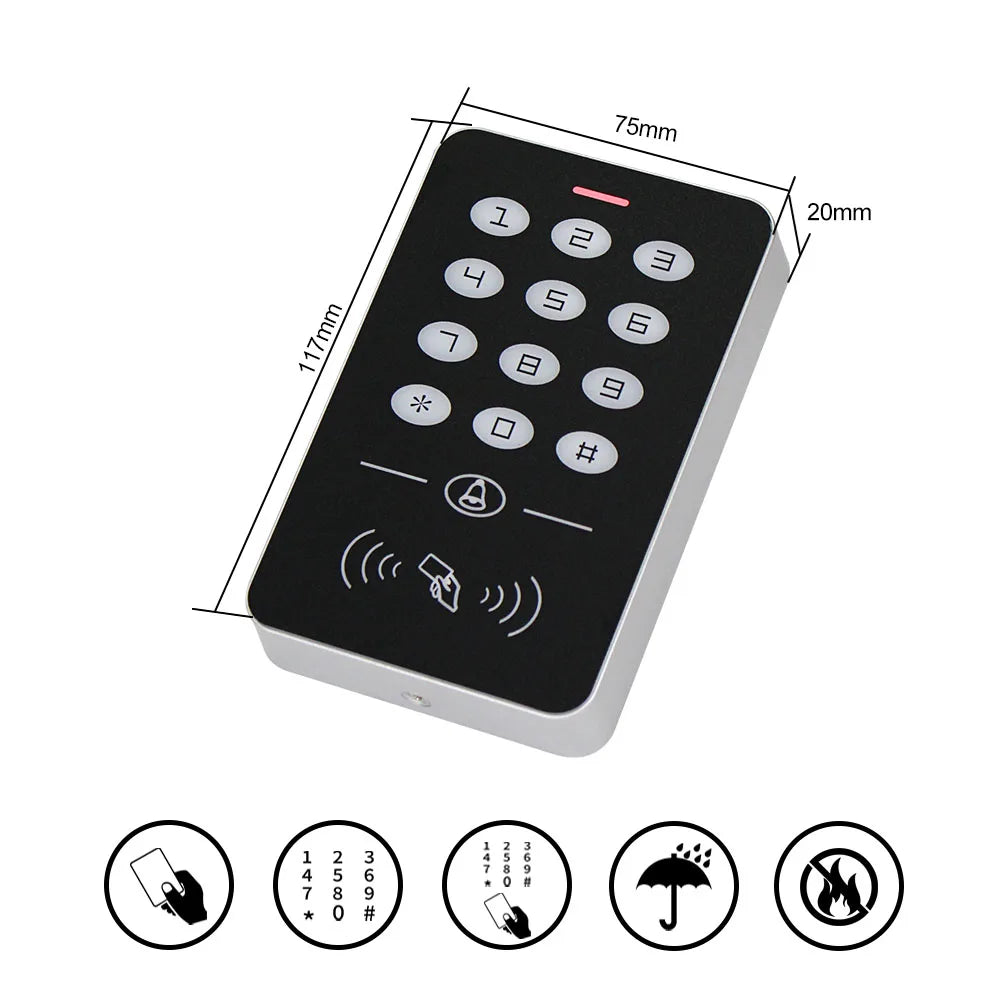

  Size of A1: 113*70*20mm





  Surface Waterproof and dustproof panel

  The ABS flame-retardant casing is integrally formed. After the installation is completed, a layer of glass glue can be applied to the back cover to achieve a comprehensive waterproof effect. (not IP65 waterproof, can't be used under the rain directly)





  Support RFID Card, password, RFID Card+ password to open the door

  Support 1000 card and password user capacity, can set card + password to open the door, the safety factor is higher

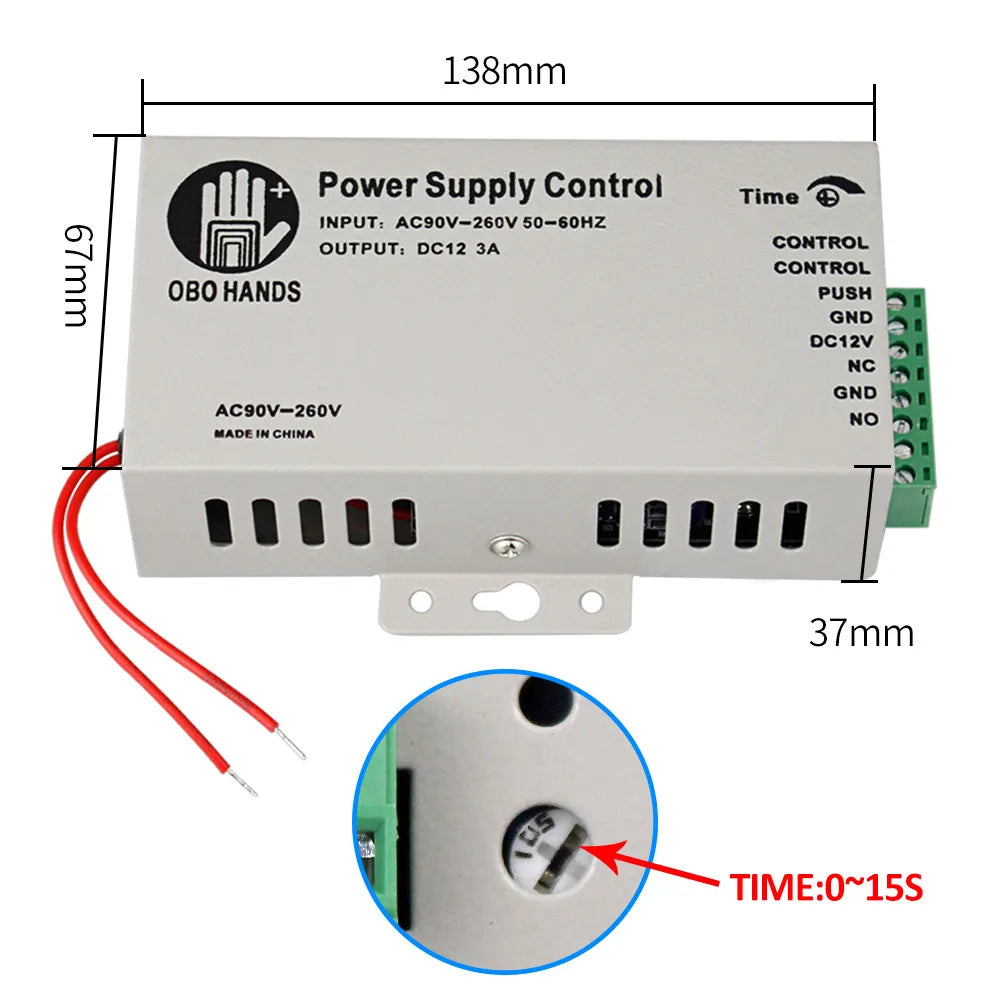

  Power Supply:



  Material: Steel
  Output Power: 36W
  Durability Test: 500000 times
  Input Frequency: 50-60Hz
  Input Voltage: 110-260VAC
  Output Voltage: DC12V/3A
  Working Temperature: -20 to +65
  Time Delay: 0-15 seconds adjustable
  Relative Humidity: 0%-90%
  Dimension: 100*65*32mm











  Door Exit Button:



  Material:Hard Plastic

  Maximum Power Rating:36V DC 3A—5A output

  Support both NC Mode (Fail Safe Mode) &

  NO Mode (Fail Secure Mode)

  Dimension:86X86MM ( L / W  )



  RFID Keyfobs:



  125KHz rfid frequency key card
  Operating frequency: 125kHz
  Detection range: 0-10cm
  Each card pre programmed and has a unique identity number on it.
  Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.





  Package List

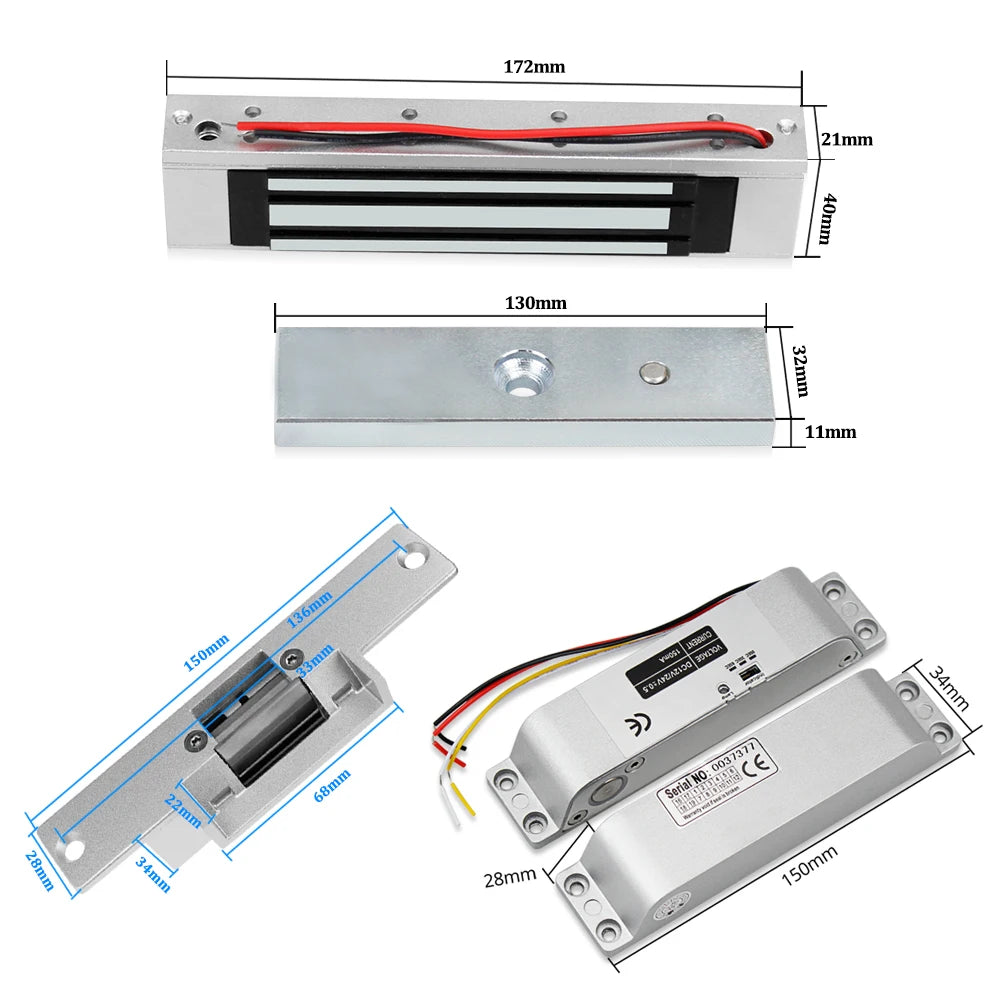

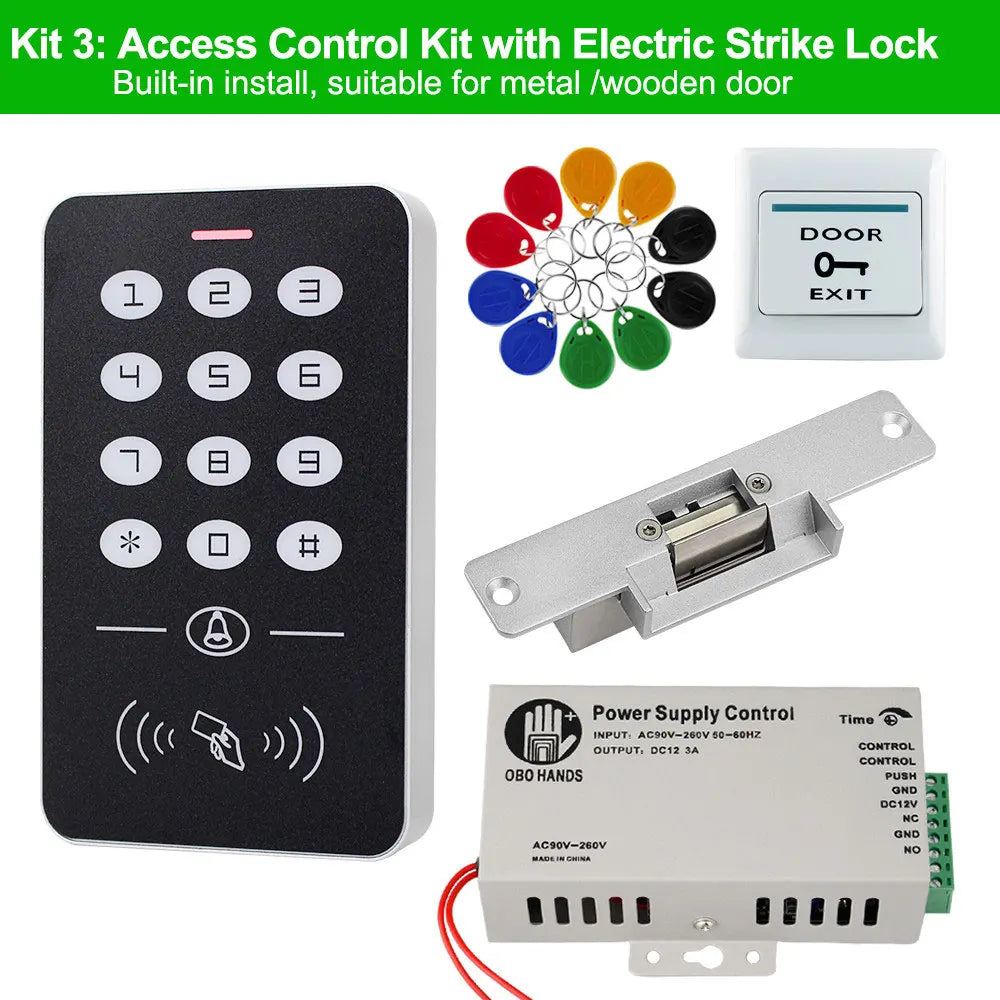

  Kit3:  Suitable for wooden door, metal door. convenient and beautiful. No need bracket

  Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs

  (We will send the NC type by default, if you want NO type, please leave us a message.)



  Working Voltage: 12V ± 10%
  Current: 200mA - 450mA
  Holding Force: 500kg
  Surface Temperature: Lower than room temperature +20
  Working Temperature: -30-+60 Celsius Degree
  Operating Humidity: 0~90%(non-condensing)
  Feature：Fail secure (NO), Fail safe(NC)
  Material: Stainless steel
  NC type strike lock: Locked when power on, unlocked when power off
  NO type strike lock: Locked when power off, unlocked when power on
  Size: 150 x 28 × 34mm（L / W / H）

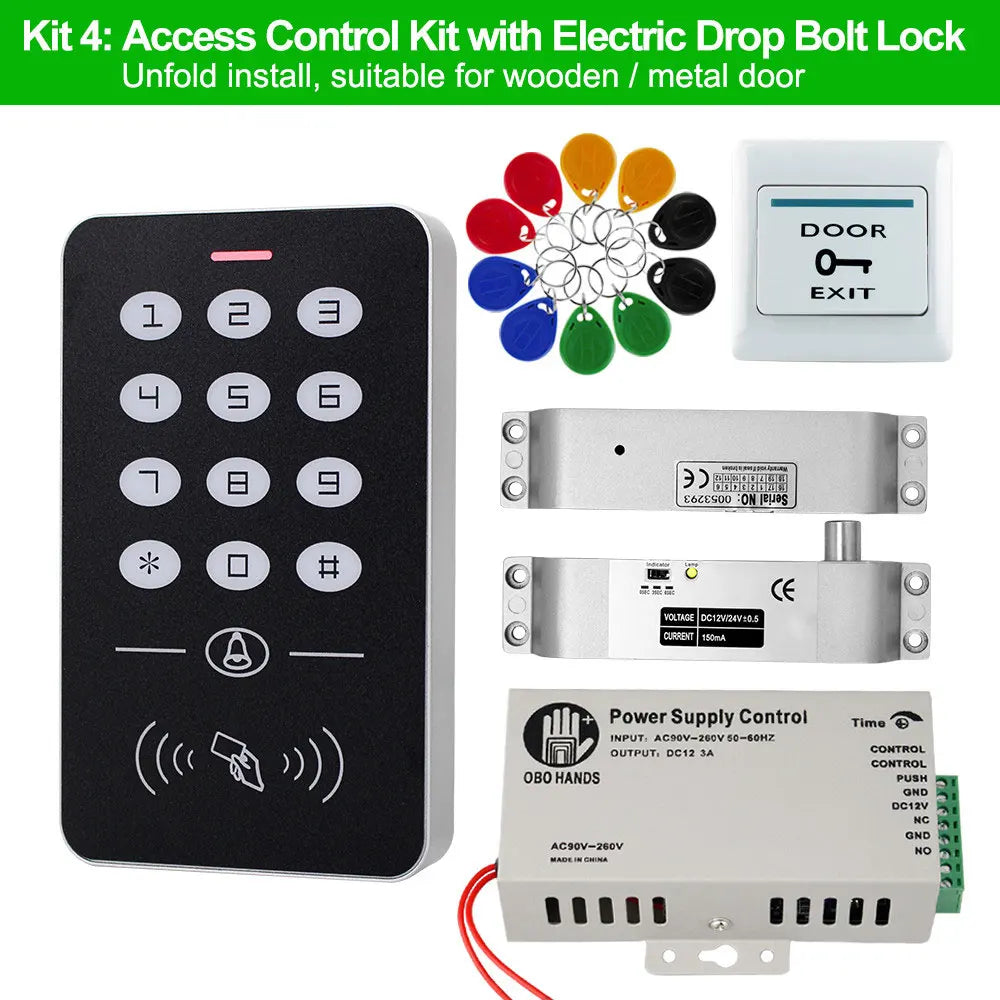

  Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.

  Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs



  Working voltage: 12V

  Time delay: 0s,3s,6s adjustable
  Working current: Start state 1.2A ; Persistent state 120mA
  Coil type: Continuous working
  Security type: Electric power lock, unlock
  Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
  Locking mode: Magnetic induction
  Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
  Dimension: 150X34X28( L / W / H )

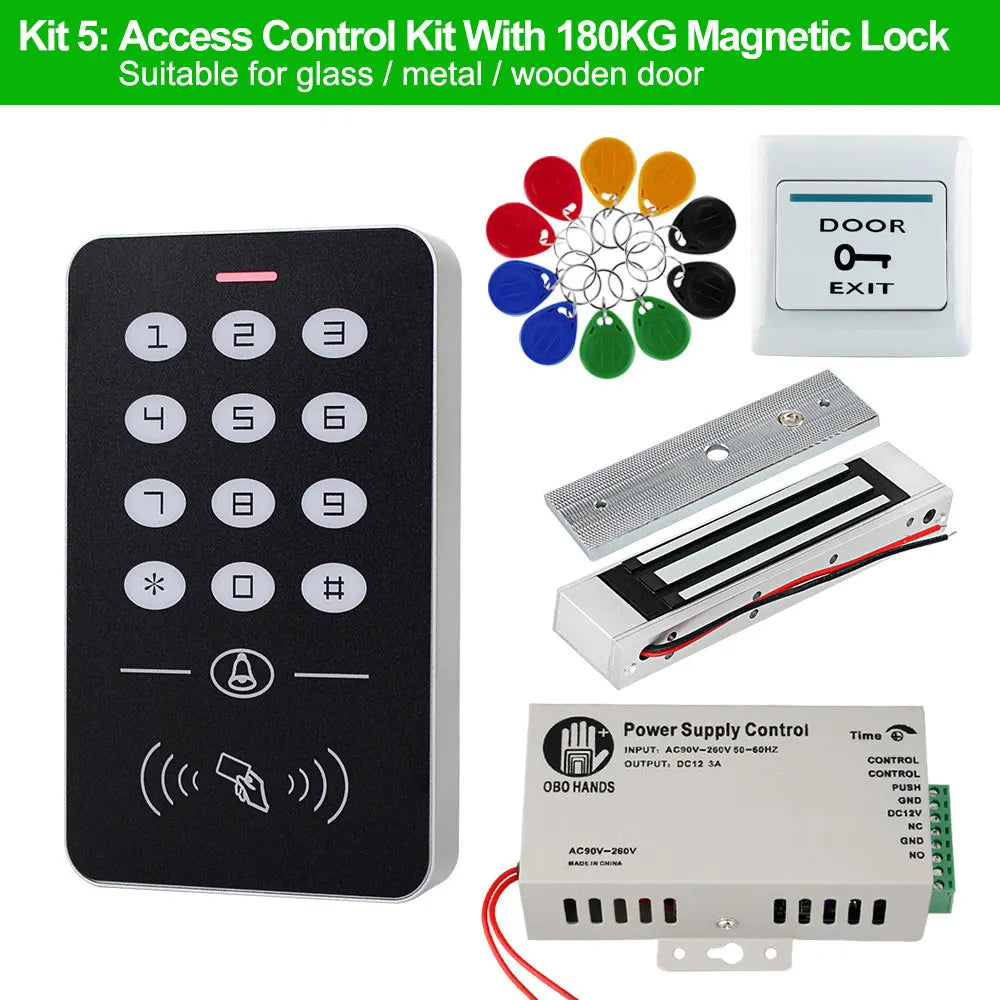

  Kit5: Suitable for wooden, metal and glass frame door. No need bracket.

  Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs



  Material: Aluminum alloy shell + iron plate
  Holding force: 180KG/350lbs
  Working Voltage: DC12V
  Working Current: 380-430mA
  Humidity: 0 to 95%
  Working Temperature: -10 to 55 Celsius degree
  Working mode: power-on to lock, power-off to unlock
  Waterproof: Yes. Can be install outside

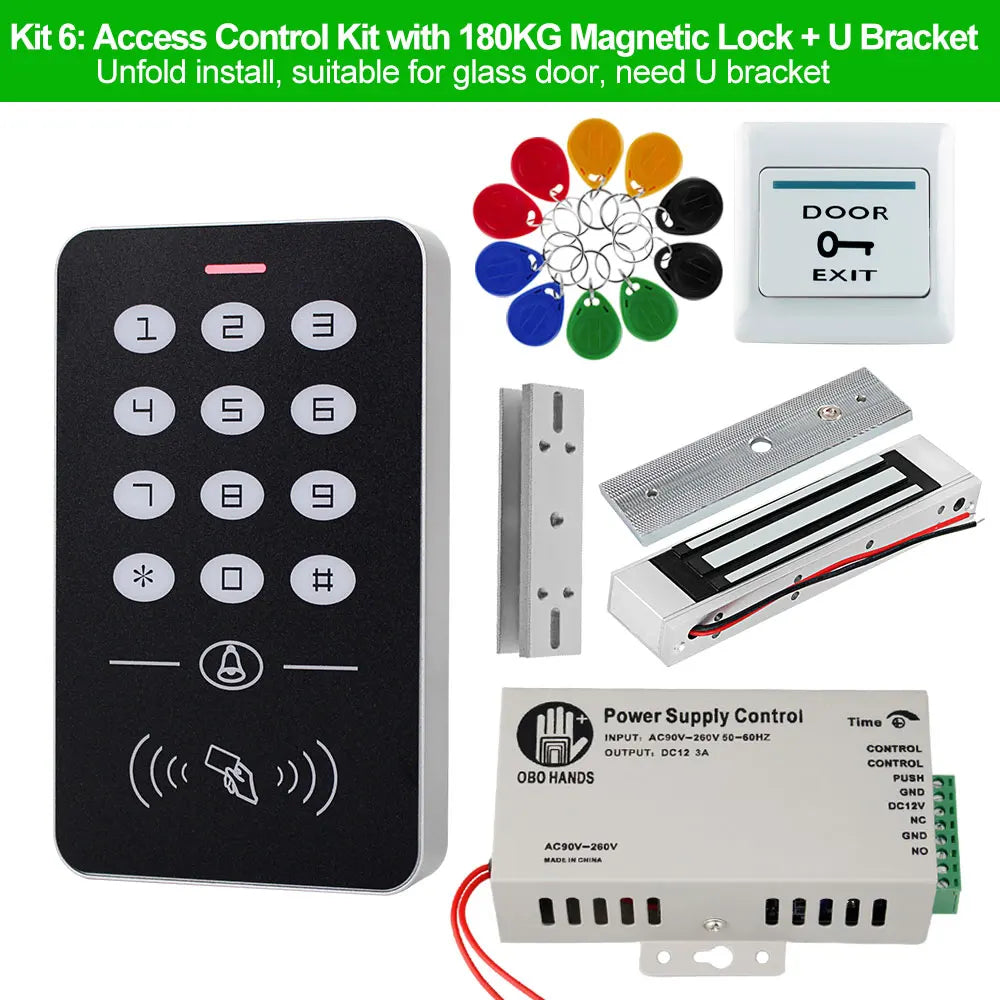

  Kit6: Suitable for frameless glass door. Need U bracket.

  Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs



  If your door is frameless glass door, then will need a U bracket

  Size of  U  Bracket:  130* 33 * 26mm (L/W/H)

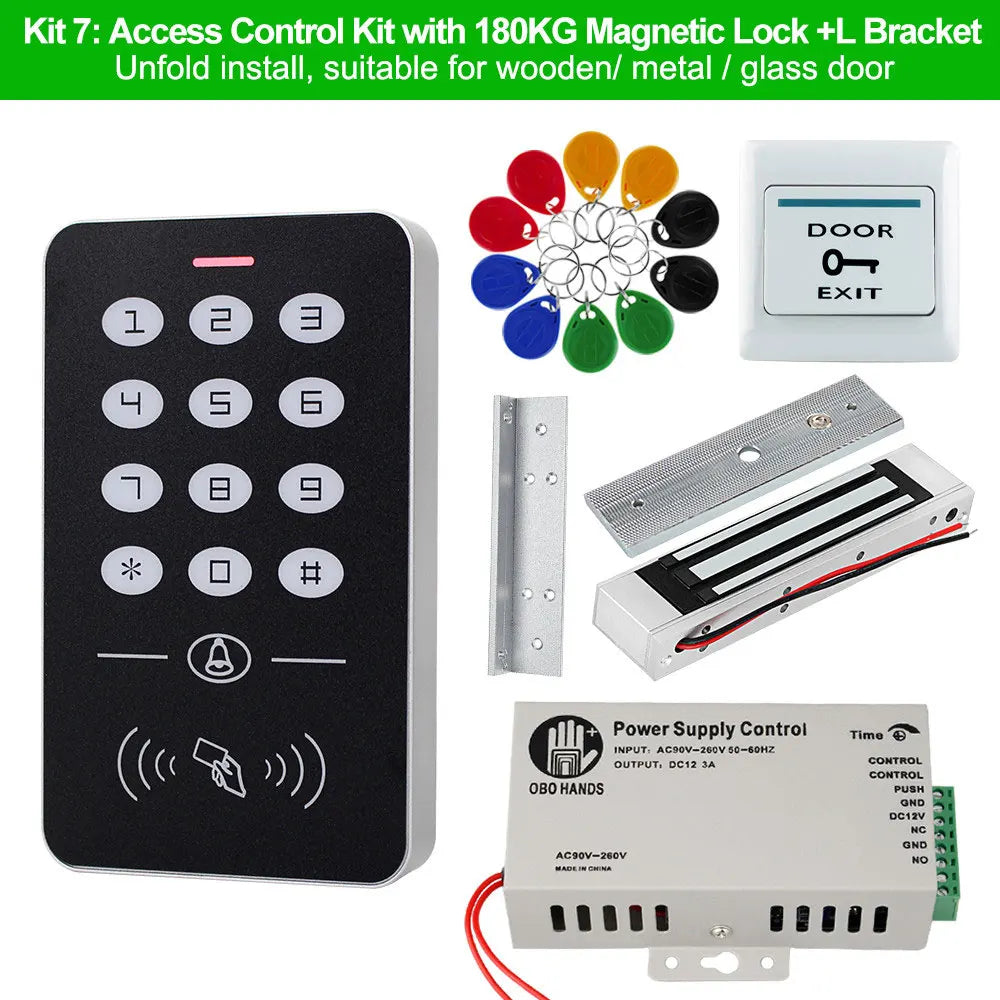

  Kit7:Suitable for wooden, metal door. Need L bracket.

  Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs



  Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.

  Size of L Bracket:  170* 34 * 25mm (L/W/H)

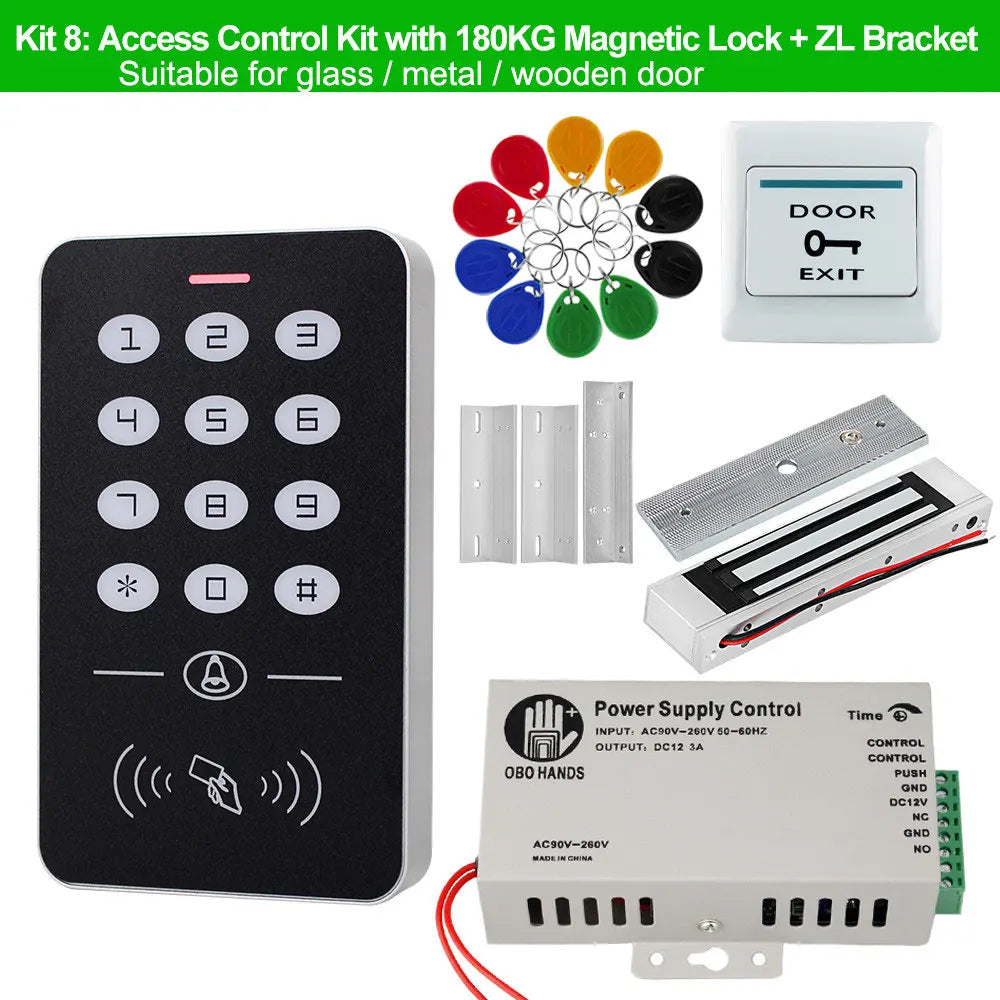

  Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.

  Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs



  If your door is open from indoor, then need to add the ZL bracket.

  Size of L Bracket: 170*34*25mm (L/W/H) ,

  Size of Z Bracket: 138*45*45mm (L/W/H)

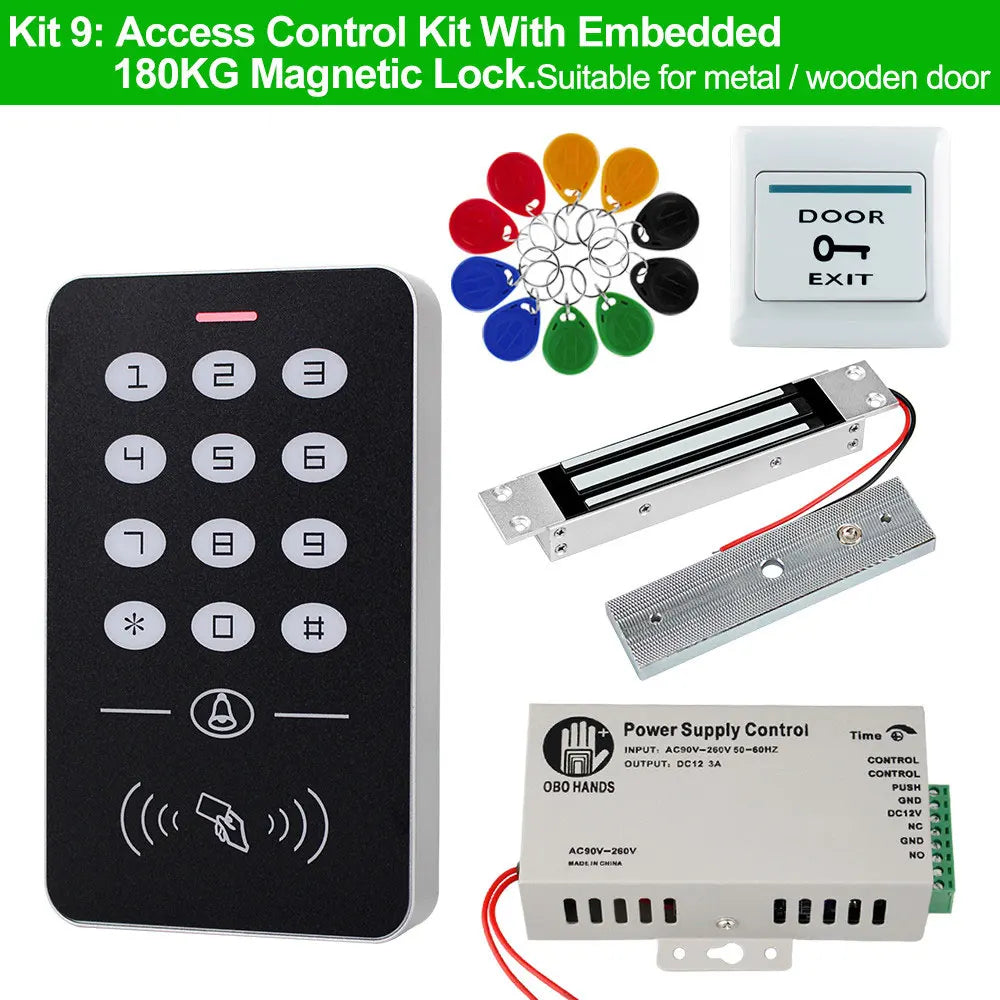

  Kit9:Suitable for wooden, metal and glass frame door. No need bracket.

  Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs



  Size of the Lock:            192Lx33Wx20H(mm)
  Size of Armature Plate:  139Lx32x11H(mm)
  Holding Force:                180kg(350Lbs)
  Input Voltage:                  12VDC
  Current:                           12V/120mA





  Wiring Diagram
