Waterproof 125Khz RFID Card Reader Wiegand 26 Reader LED Indicators Security ID EM Card Slave Reader For Access Control System
$16.02
-
Description
Description
SPECIFICATIONS
Brand Name: Asia-Teco
Choice: yes
High-concerned chemical: None
Interface: RS-232

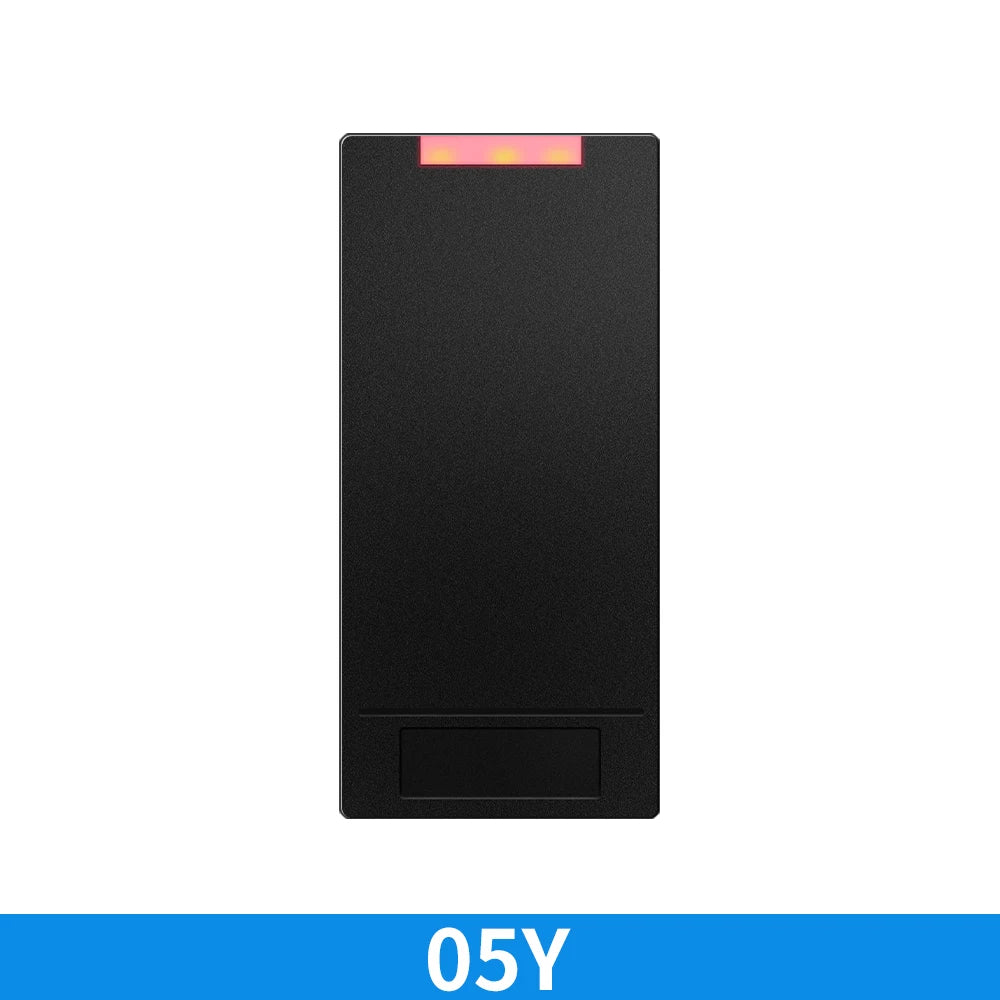

Model Number: 05Y
Origin: Mainland China
Type: ID
Waterproof 125Khz RFID Card Reader Wiegand 26 Reader LED Indicators Security ID EM Card Slave Reader For Access Control System
Note: Access Control card reader can't storage user data, can't add or delete card, password, fingerprint user directly.
It's just a tool of read card or password to unlock. Need to work with standalone access control board, fingerprint attendance machine, etc.
If you need such devies too, please contact us. Thank you!
If you need frequency-13.56mhz/TTL/RS485/RS232/HID format, please consult customer service for special customization. The minimum order quantity is 30 pieces

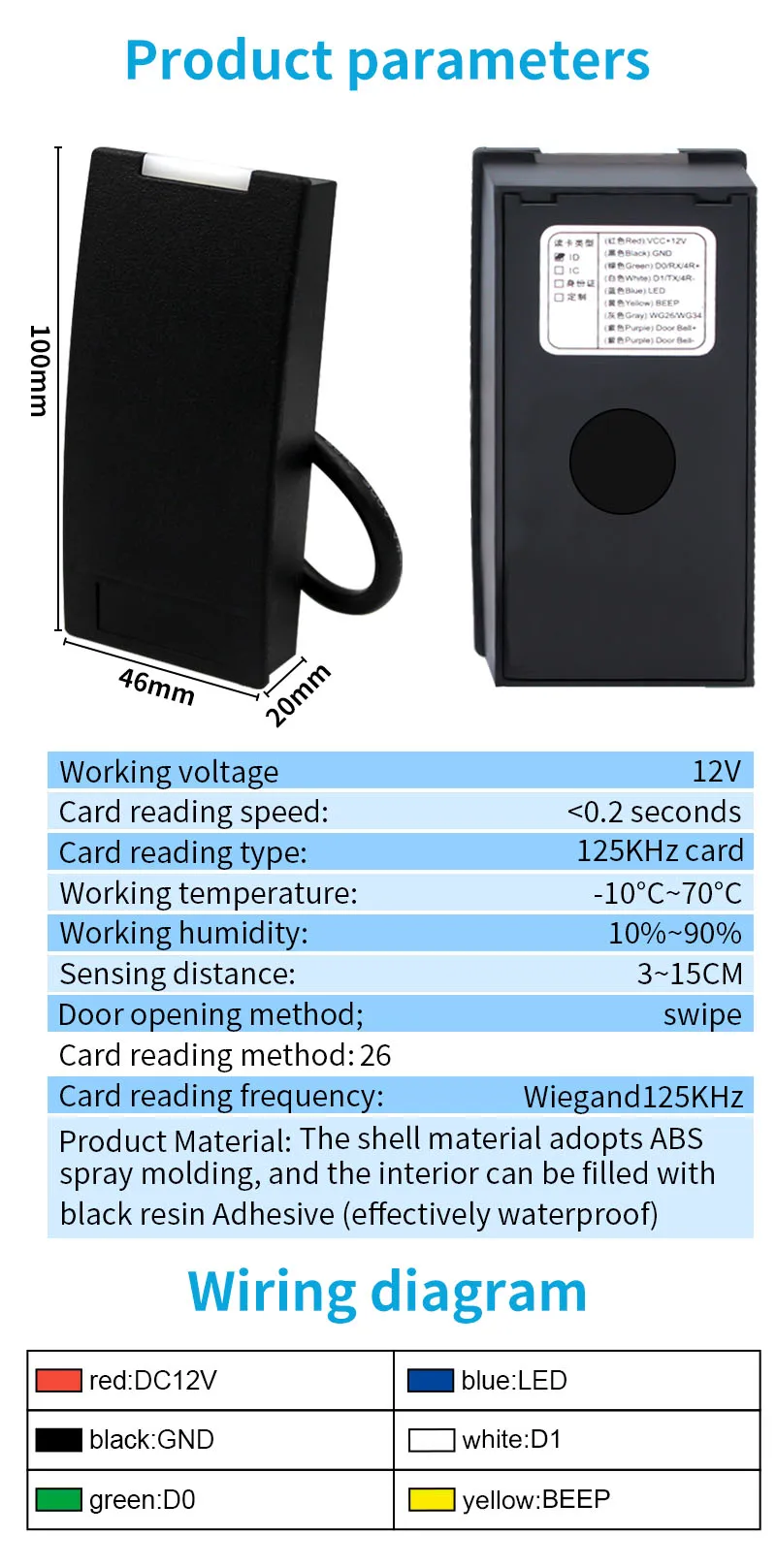

Specifications:
Parameters
Operating Voltage :DC 12V
Consumed Current :0-100mA
Support cards :TK4001\EM4100 etc.
Read Range :0mm-100mm(related to the card or the environment)
reader interval :＜0.2S
Format :Wiegand 26
Distance of transmission :≥100M
Service Temperature :-25℃ ~ +75℃
Size :46mm x 100mm x 20mm
Weight :About 160g
Lead Length :180mm±5mm

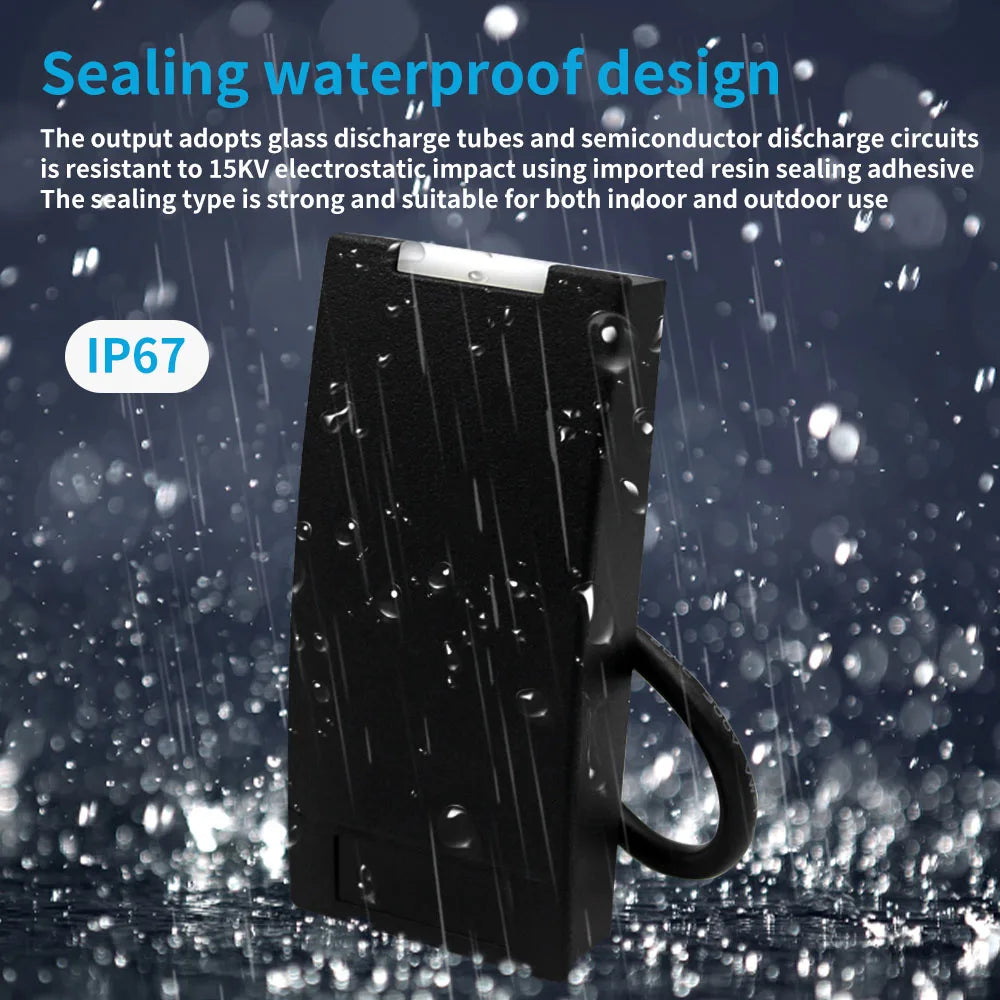

Material :PVC & Resin adhesive（it's waterproof）

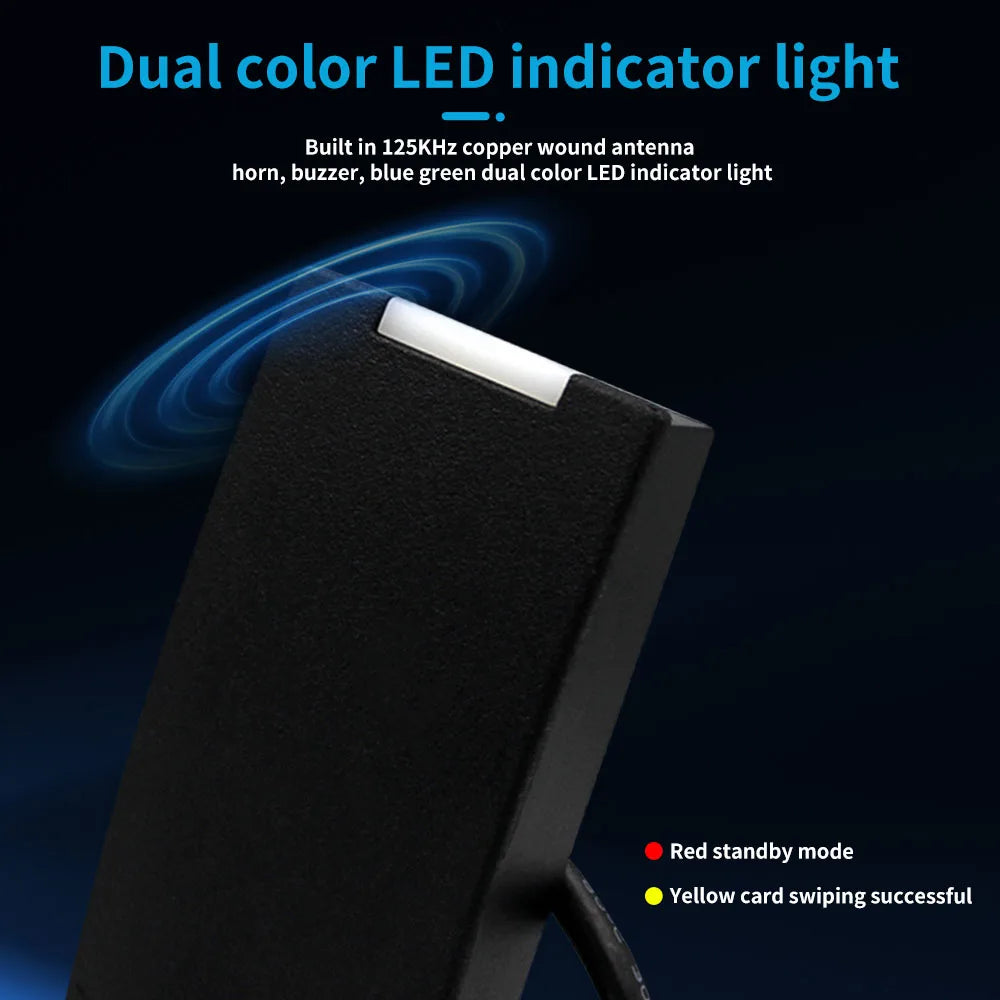

Status Indication :2PC LED (standby, success)

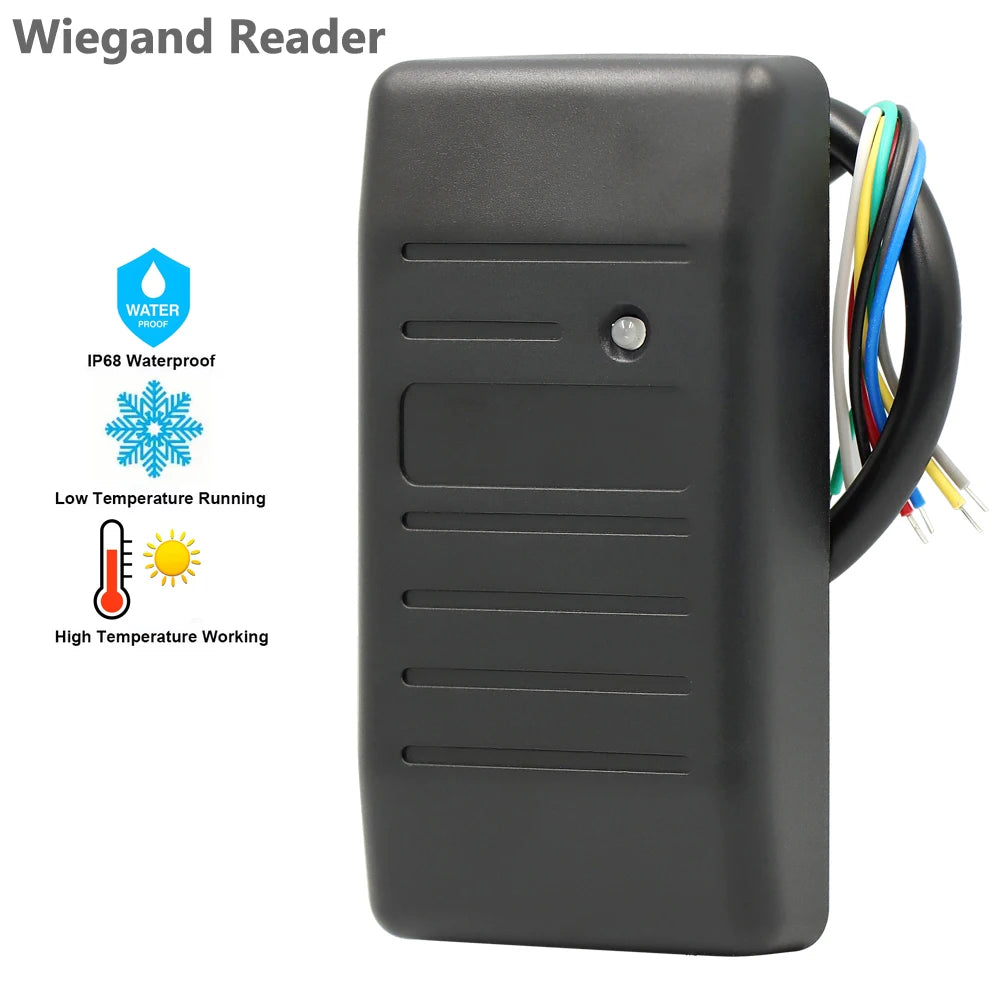

Line definition:
Red: VCC（12V+ DC）
Black: GND
White: Wiegand D1
Green: Wiegand D0
Blue: LED light
Yellow: Beep buzzer
Notes:
1. Turn off the power and don't live operation when installing or disassembing
2. The reader must be installed on wooden, concrete or brick wall, or placed on the table. It may not have a large area of iron and steel products within a radius of around 10 centimeters
3. Different cards has affect the distance of reader
4. If the distance of reader between two machines <0.3 m, will interfere with each other. In other words, the best distance between the reader is kept at 0.3 meters above.
5. If the card still in the sensing area, the reader without any prompts, and also don't send data.
6. Access Control Reader cann't store user data and information, we can't increase the card, password and fingerprint user. It's a tool for unlocking that just expanding into the card or password , you need to rely on the access controller, attendance card machines, or multi-door controllers.
-
