Waveshare Industrial Modbus RTU Analog Input 8CH, Modbus RTU, 12-bit High-precision, Supports Voltage And Current Acquisition

• Compare
• Add to Wishlist
• Ask a question
  Ask a question

  Submit now

• Description

  Description

  SPECIFICATIONS

  Accessory Type: Industrial Modbus RTU Analog Input

  Battery Included: No

  Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000

  Brand Name: cbhioarpd

  Communication interface: RS485

  Compatible With: none

  Data update rate: 25Hz

  Default communication format: 9600, N, 8, 1

  High-concerned chemical: None

  Modbus protocol: Standard Modbus RTU protocol

  Origin: Mainland China

  Power supply: DC 7~36V

  Sampling accuracy: 12-bit resolution, accuracy ≤3%

  Typical Application Fields: Education and Learning

  DESCRIPTION




  Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage And Current Acquisition, DC 7~36V Wide Voltage Power Supply, Modbus RTU Protocol





  Industrial 8-Ch Analog Acquisition Module

  12-bit High-precision



  Supports Voltage and Current Acquisition




  DC 7~36V Wide Voltage




  Modbus RTU Protocol




  Multiple Isolation Protection



  Features At A Glance

  Modbus RTU Analog Input 8CH is an industrial standard analog acquisition module, supports multiple ranges and 8-ch simultaneous acquisition. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

  • Configurable device address (1~255), multi devices can be cascaded on RS485 bus

  • Onboard voltage regulator, supports 7~36V wide range power supply

  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

  • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference

  • Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic

  • Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition

  • Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition

  • Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing

  • Rail-mount case design, support stacking combination, easy to install and safer to use

  • 3x LEDs for indicating the MCU status and signal transceiving status

  Version Options

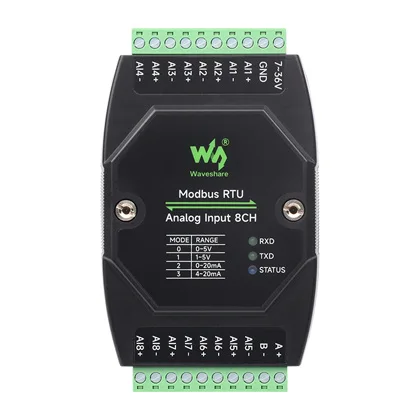

  Modbus RTU Analog Input 8CH
  Supports four ranges (configurable):
  0~5V/1~5V
  0~20mA (default) /4~20mA

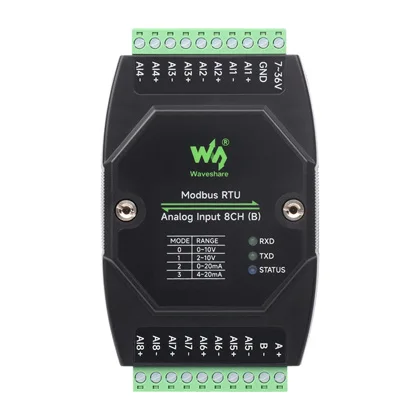

  Modbus RTU Analog Input 8CH (B)
  Supports four ranges (configurable):
  0~10V (default)/2~10V
  0~20mA /4~20mA

  Specifications

  MODEL	Modbus RTU Analog Input 8CH	Modbus RTU Analog Input 8CH (B)
  COMMUNICATION INTERFACE	RS485
  BAUD RATE	4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
  DEFAULT COMMUNICATION FORMAT	9600, N, 8, 1
  MODBUS PROTOCOL	Standard Modbus RTU protocol
  POWER SUPPLY	DC 7~36V
  SAMPLING ACCURACY	12-bit resolution, accuracy ≤3%
  DATA UPDATE RATE	25Hz
  INPUT MODE	supports single-ended/differential input, supports voltage and current simultaneous acquisition
  DEFAULT MODE	8-ch current mode, 0~20mA	8-ch voltage mode, 0~10V
  RANGE	0~5V/1~5V 0~20mA/4~20mA	0~10V/2~10V 0~20mA/4~20mA
  CURRENT SAMPLING RESISTOR	249Ω	499Ω

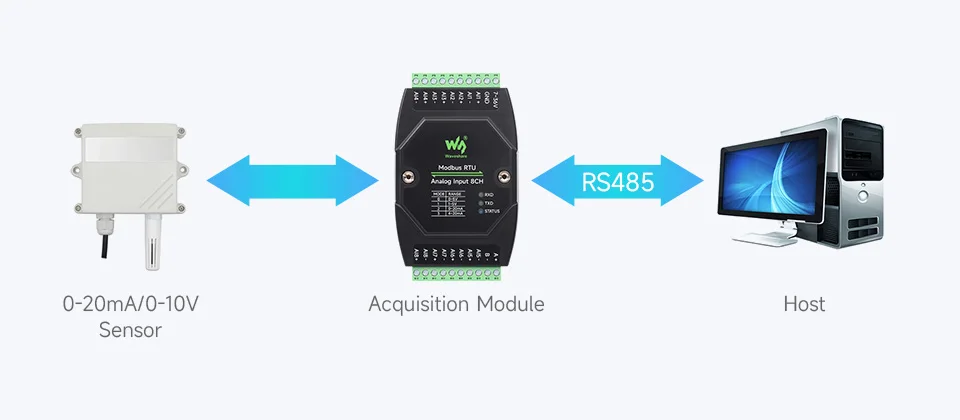

  Primary Function

  Supports Sending Modbus RTU Protocol Commands Via RS485
  To Acquire Data From 0~20mA/0~10V Sensor

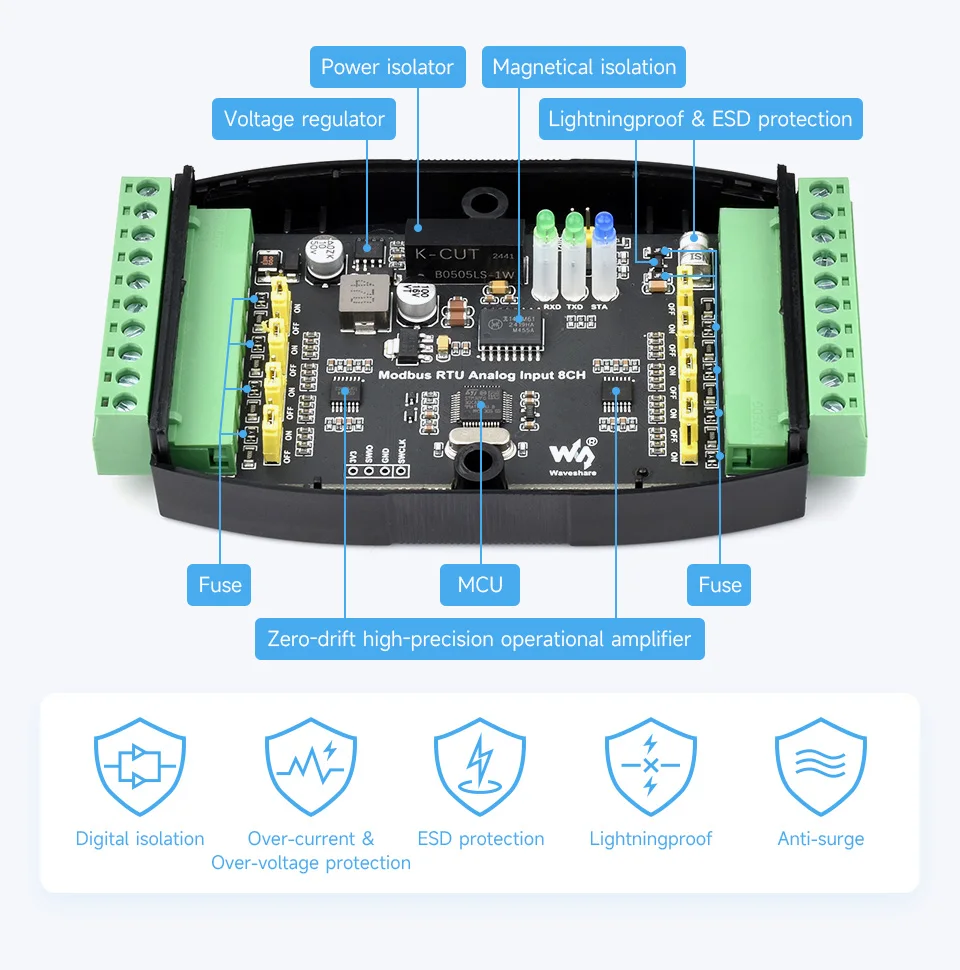

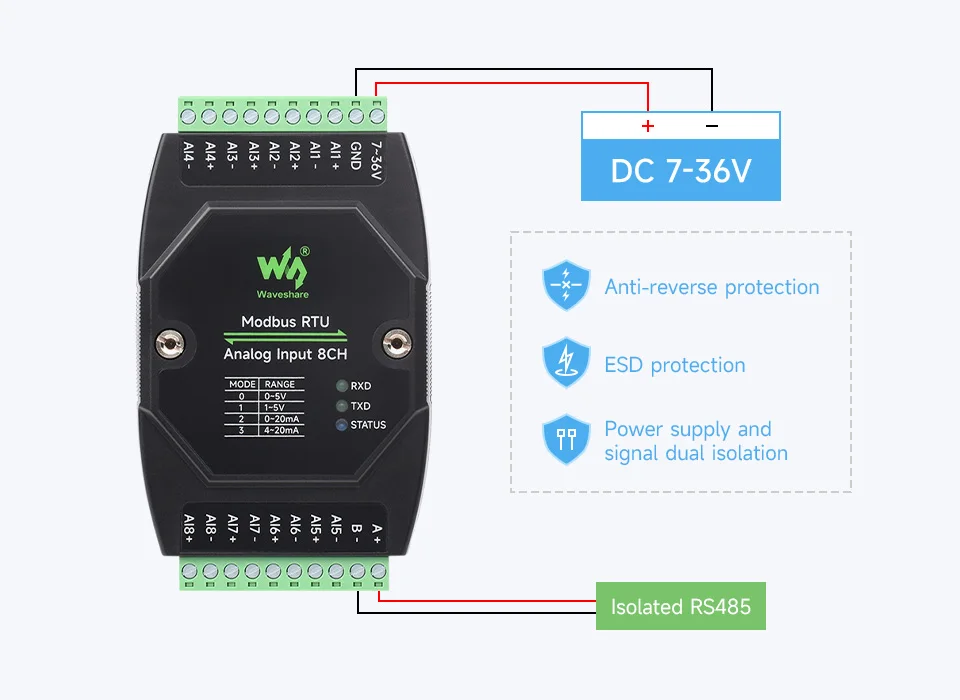

  Industrial Grade Isolated Protection

  Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for the industrial environments with high requirement.

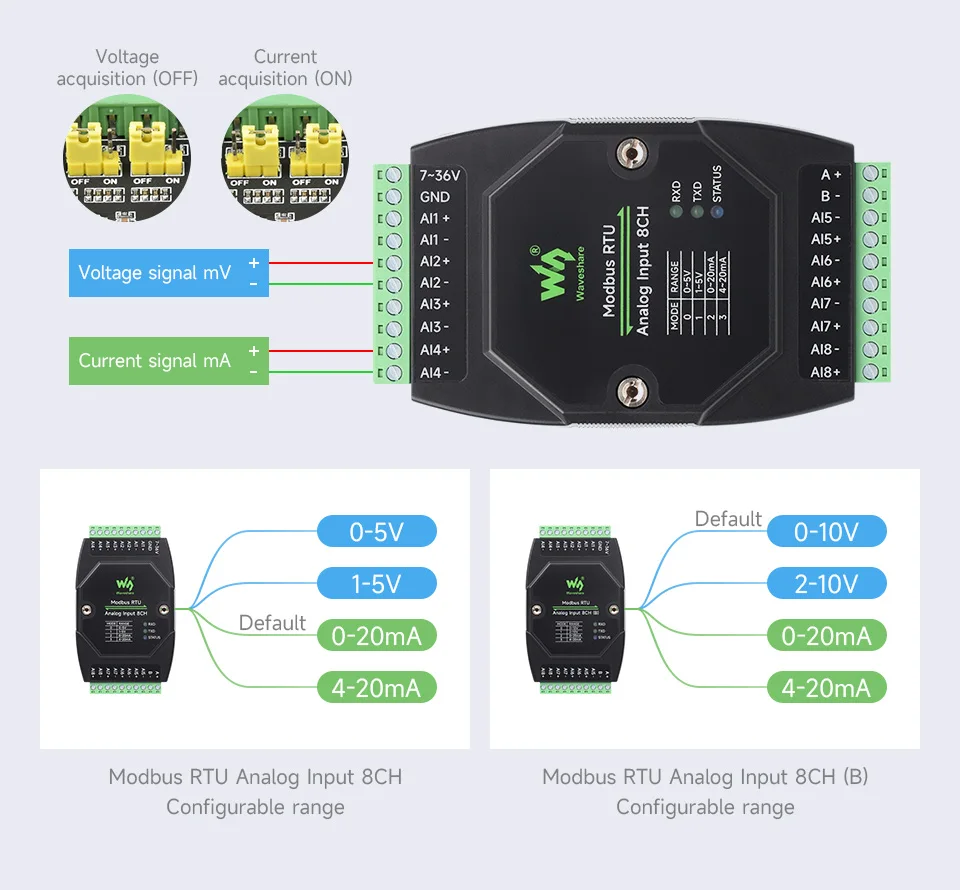

  Supports Voltage/Current Acquisition
  Wider Measurement Range

  8-Ch Analog Acquisition Interfaces, Voltage And Current Acquisition Is Switchable Via Jumper. Multiple Ranges Configurable Via Software

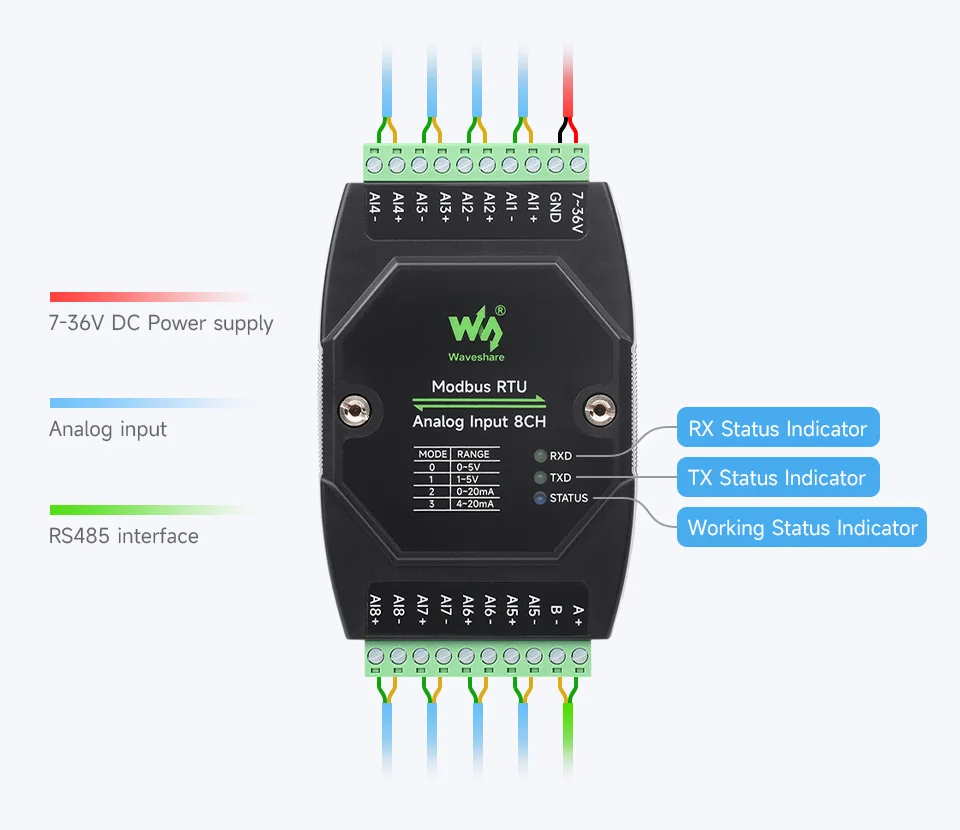

  Interface Introduction

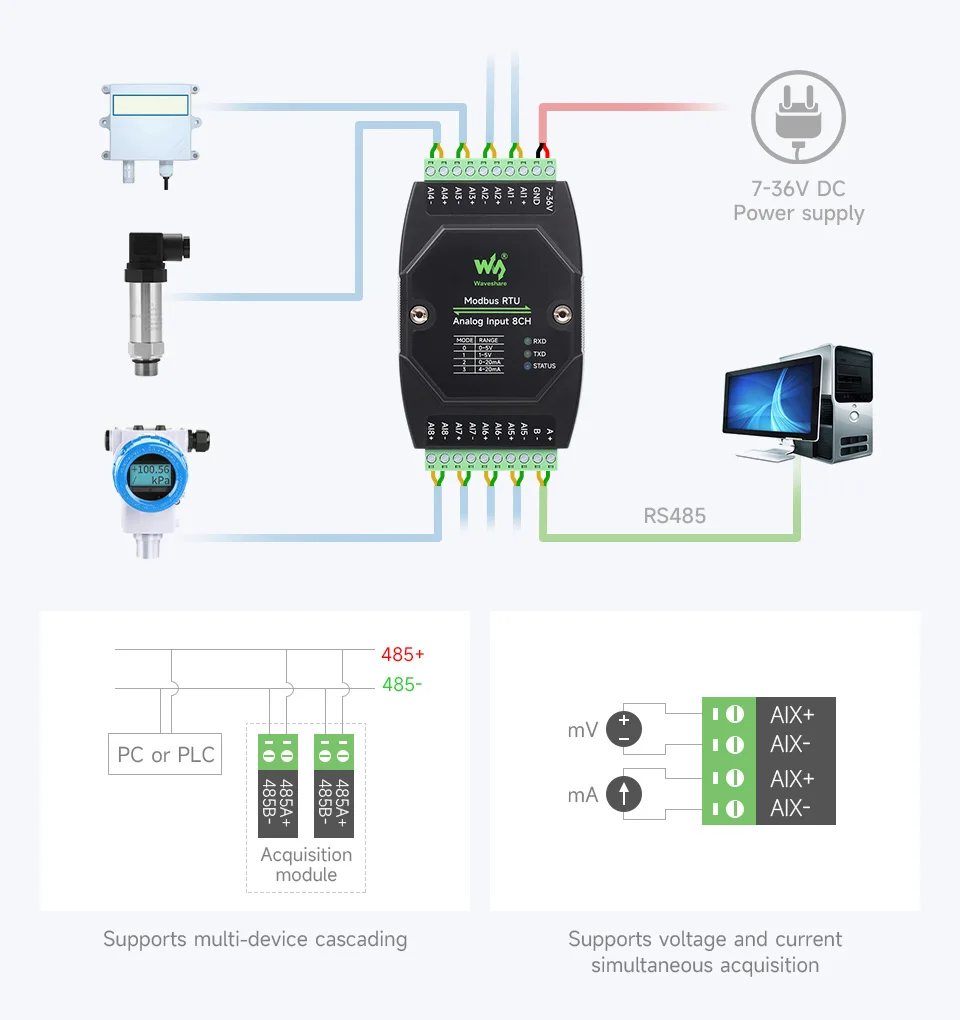

  Connection Diagram

  Supports Setting Device Address (1~255) For Multi-Device Cascading, Supports Single-Ended/Differential Input, Supports Voltage And Current Simultaneous Acquisition



  Wide Voltage Power Supply, Isolated RS485 Interface

  Built-In Fuse And Anti-Reverse Protection, With ESD Protection For Analog Input

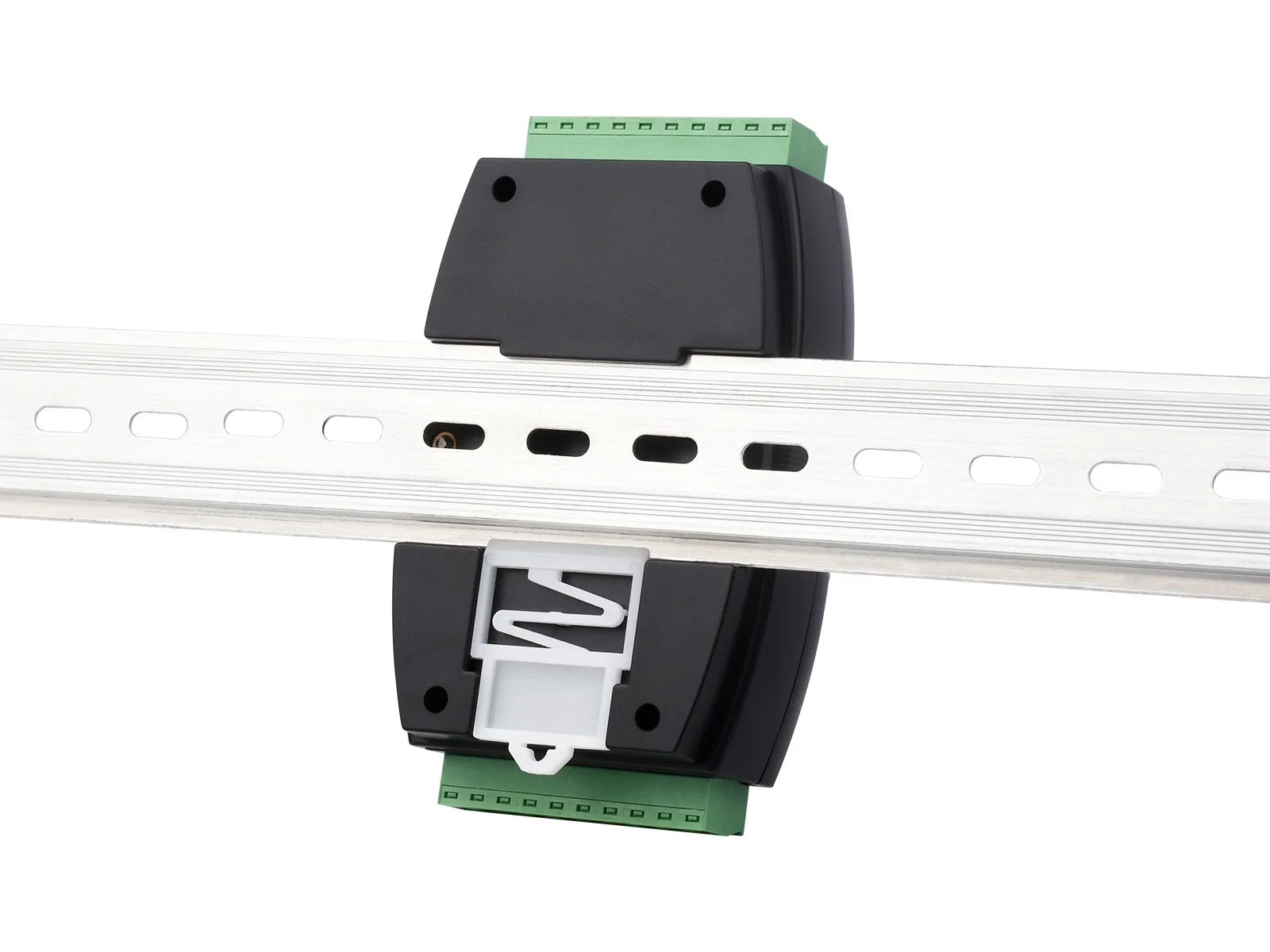

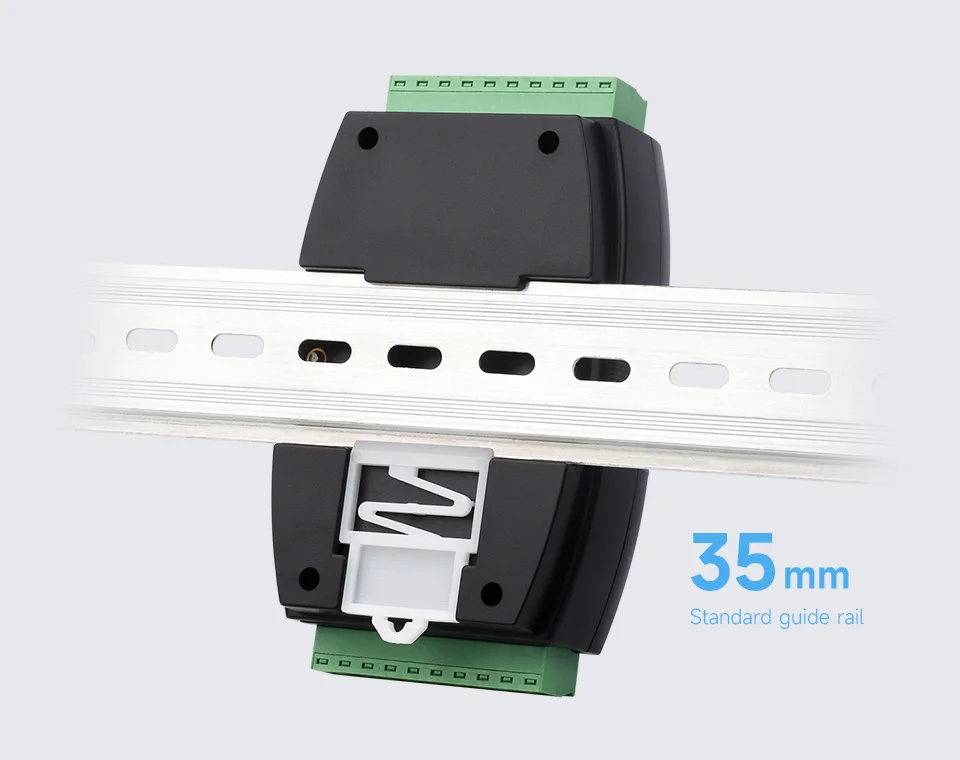

  Rail-Mount Support

  Supports 35mm Standard Guide Rail, With Rail-Mount Buckle, Easy To Install.

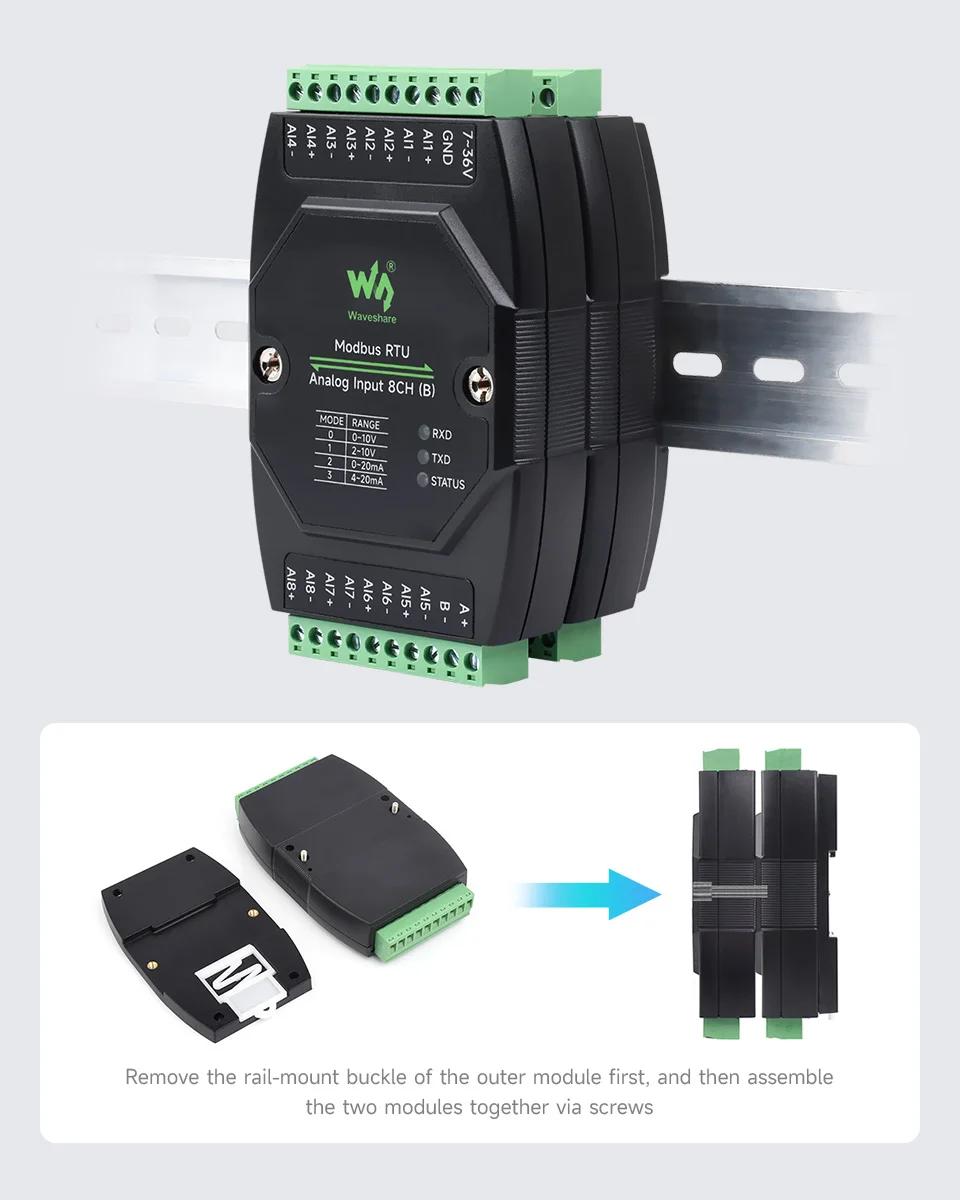

  Supports Stacking Installation

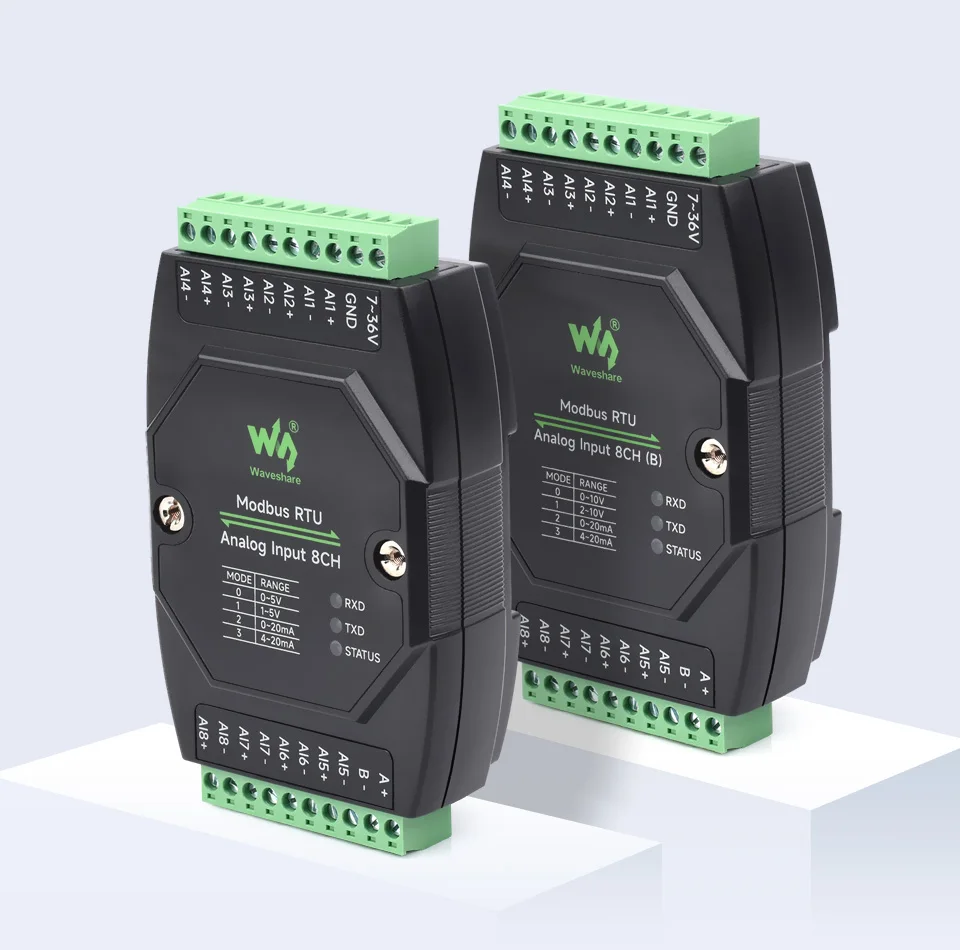

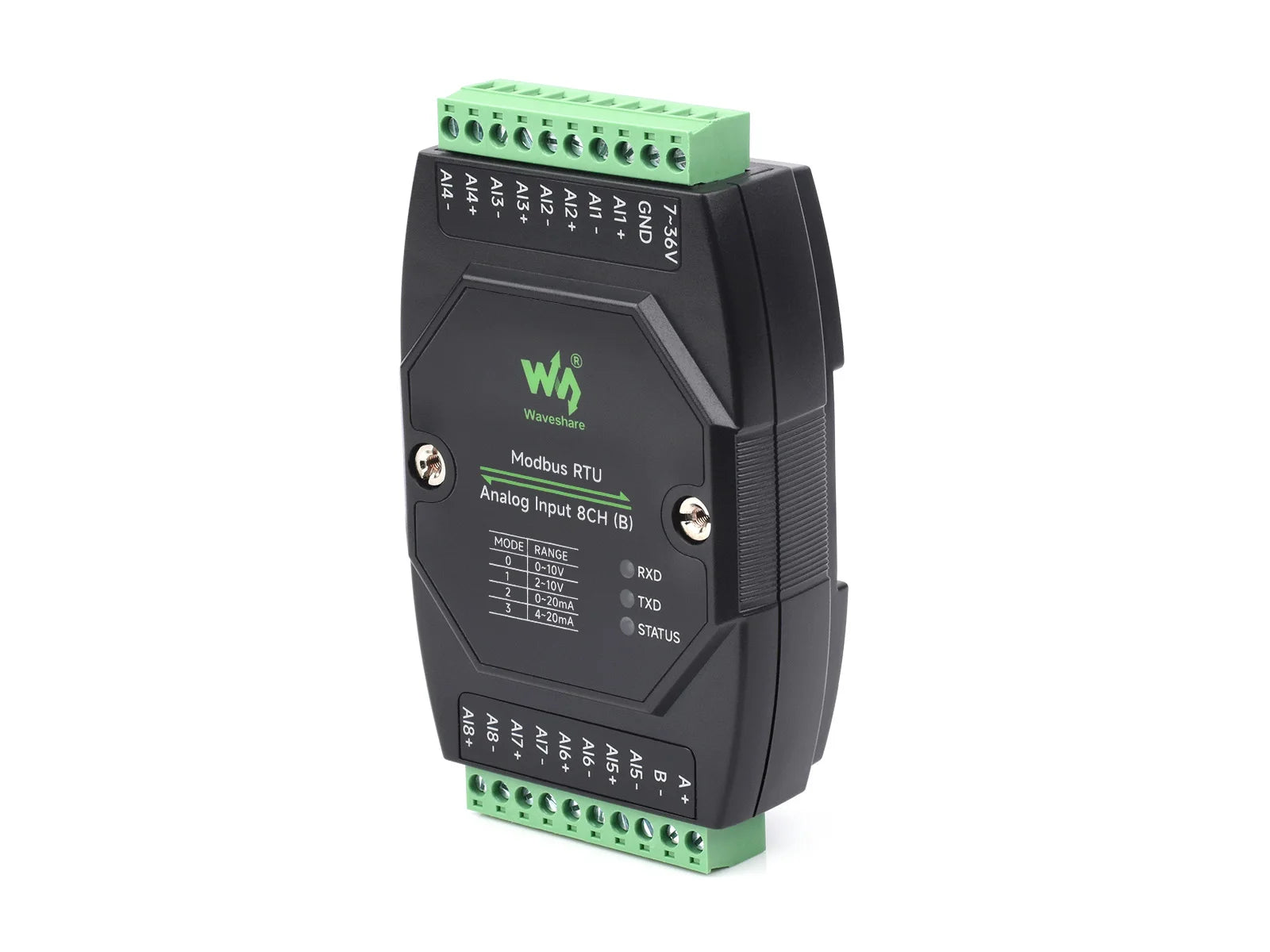

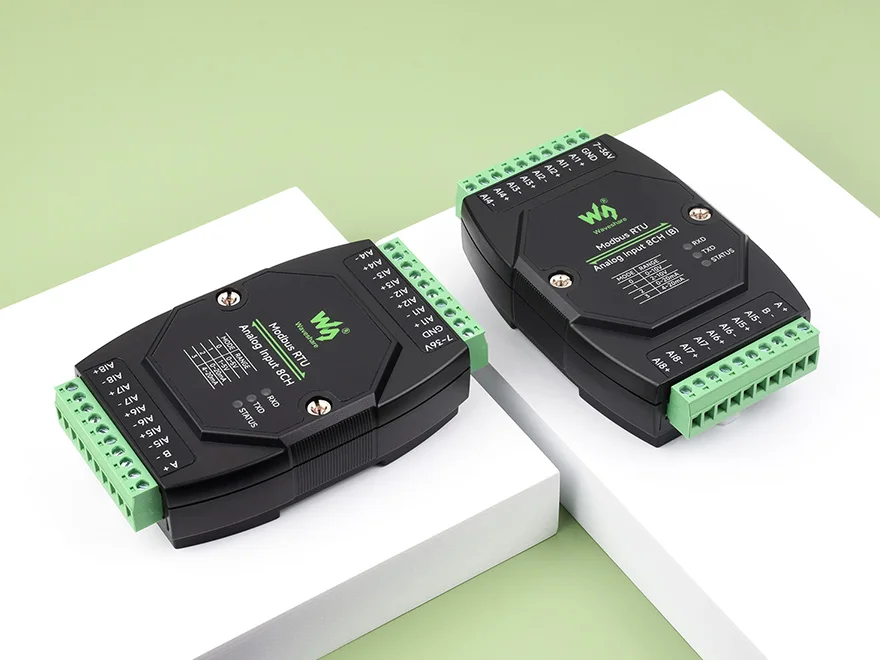

  Product Show

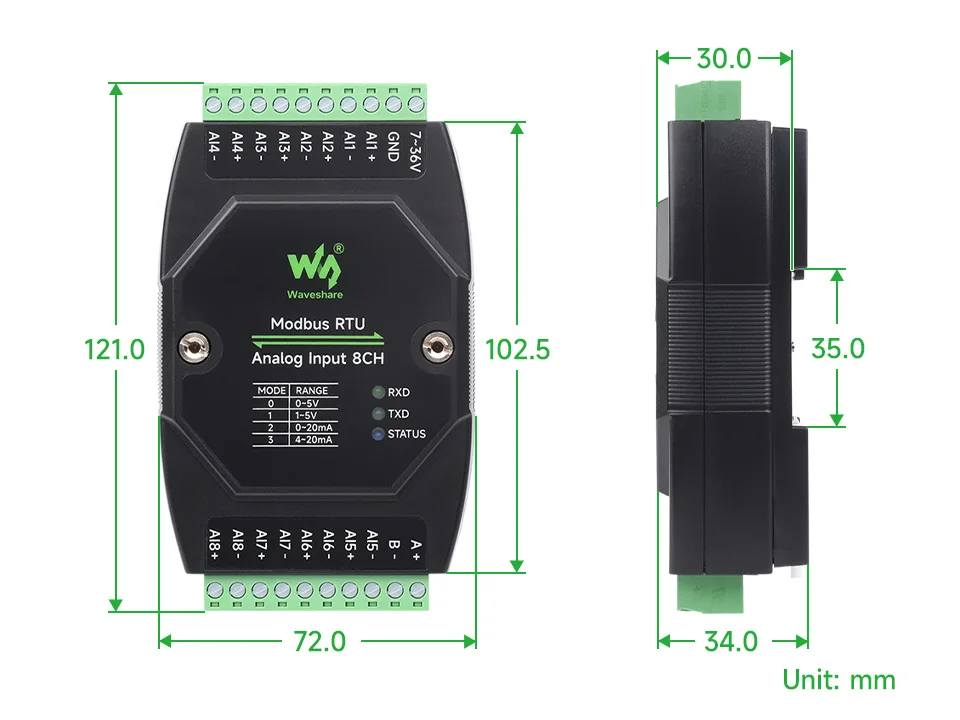

  Dimensions



  Resources & Services



  Wiki: www.waveshare.com/wiki/Modbus_RTU_Analog_Input_8CH

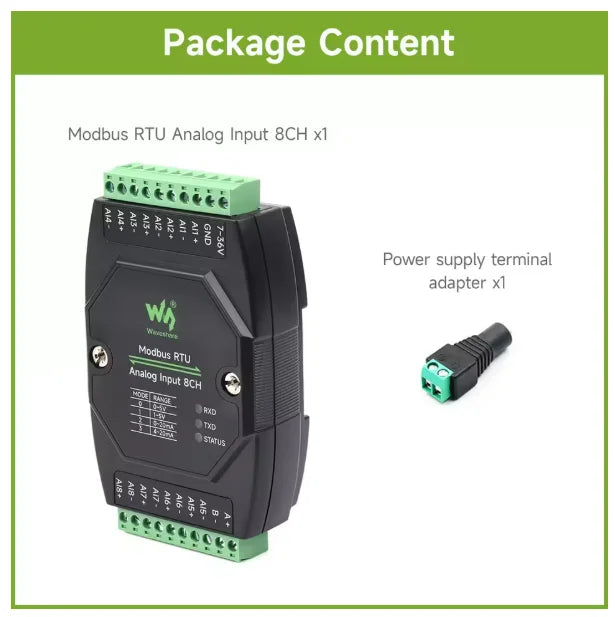

  PACKAGE CONTENT




  Weight: 0.141 kg

  The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.

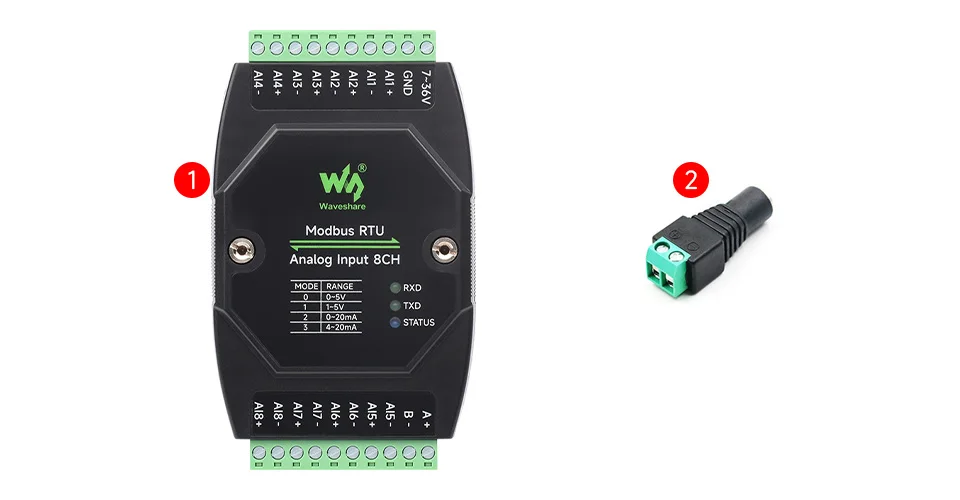

  Modbus RTU Analog Input 8CH

  1. Modbus RTU Analog Input 8CH x1

  2. Power supply terminal adapter x1

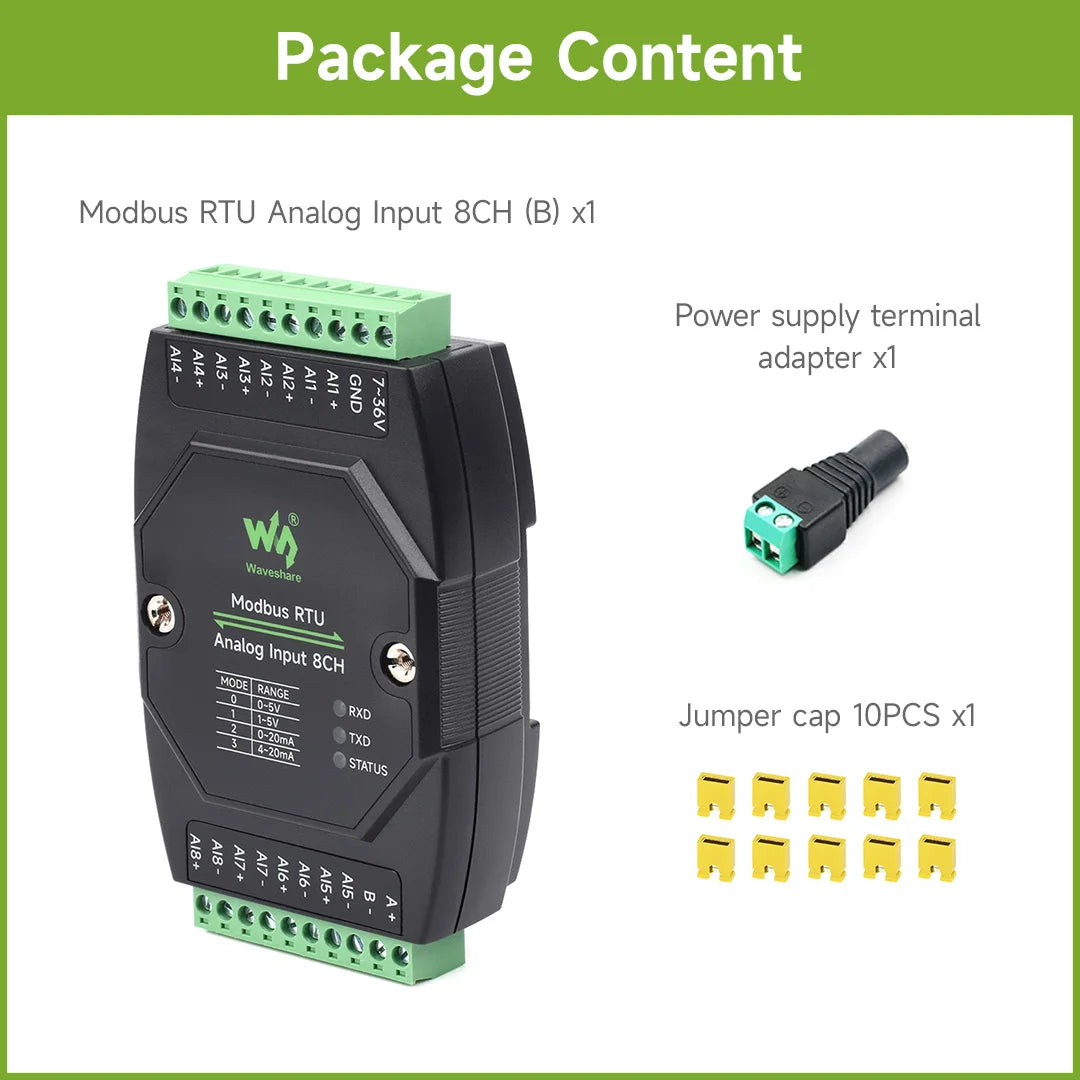

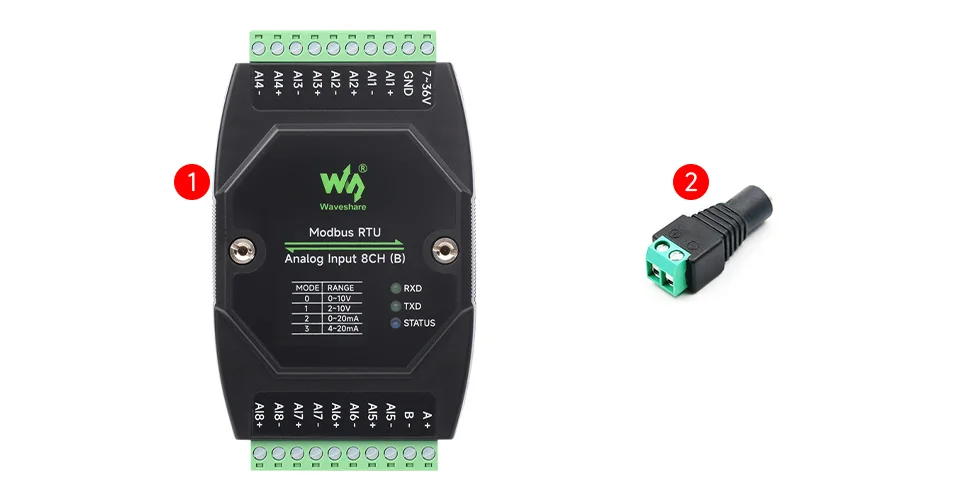

  Modbus RTU Analog Input 8CH (B)

  1. Modbus RTU Analog Input 8CH (B) x1

  2. Power supply terminal adapter x1

  3. Jumper cap 10PCS x1
